Summary

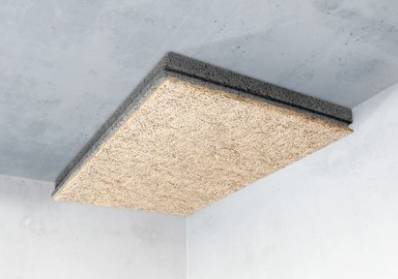

Heratekta is a panel that combines wood wool with a grey insulation board that has a tongue and groove connection that supports very easy and one-man installation. This allows for an extra flat and ex
-
-
Application
- Parking garages basements.
- Loggias and balconies.
- Technical rooms.
- Infrastructure.
-
-
Description
The Heratekta boards are made out of PEFC certified wood and a fibre width of 2 mm as standard, the panels are factory finished with a natural tone colour spray and bevelled all round. These boards offer high thermal performance as well as an aesthetic finish at the same time.
Features and benefits:
- Grey EPS (λ 0,032) offering 25% better thermal performance compared to white EPS.
- Two point mounting in combination with tongue and groove connection ensures an easy and flat mounting process.
- Lightweight wood wool panel.
- Fire classification of B-s1,d0.
- Sound absorption of αW 0.30.
- Thermal resistance of RD max. 7.10 (170 mm).
- Design allows for an extra flat and extra quick mounting process.
-
-
Finish
Natural
-
-
Material
Wool
-
-
Shape
Rectangle
-
-
Length
985 mm
-
-
Width
590 mm
-
-
Height
50 mm, 80 mm, 100 mm, 125 mm, 150 mm, 175 mm, 200 mm
-
-
Warranty description
Ten year
-
-
Specification
Classification data
Form
Panel.
-
-
Application
Ceiling mounting., Wall mounting.
-
-
Material
Wood wool.
-
-
Acoustic performance
-
-
-
Purpose
Absorber.
-
-
Fire performance
-
-
-
Combustibility
Limited combustibility.
-
-
Reaction to fire
To BS EN 13501-1, Class B-s1, d0.
-
-
Dimensions
-
-
-
Size (length x width)
985 x 590 mm.
-
-
Thickness (overall)
80 mm.
-
-
Edges
Bevelled.
-
-
Finish
Natural.
-
-
Colour
Natural wood.
-
-
Accessories
Not required., MSP anchor fixing., DDS plus concrete screw., Wood screw., Metal screw.
-
-
Additional properties
Thermal resistance
2.30 m².K/W.
-
-
Sound absorption
-
-
-
Sound absorption coefficient
-
-
-
Noise reduction coefficient
-
-
-
Sustainability data
A1–A3 ('Production stage')
Embodied carbon as defined in BS EN 15804
Lower emissions
Normalized unit
-
-
-
Declared unit
0.00 kg·CO₂e/kg
-
-
