Deko BK
Verified 5 months ago
Deko BK
Verified 5 months ago
Deko BK
Verified 5 months ago
Summary

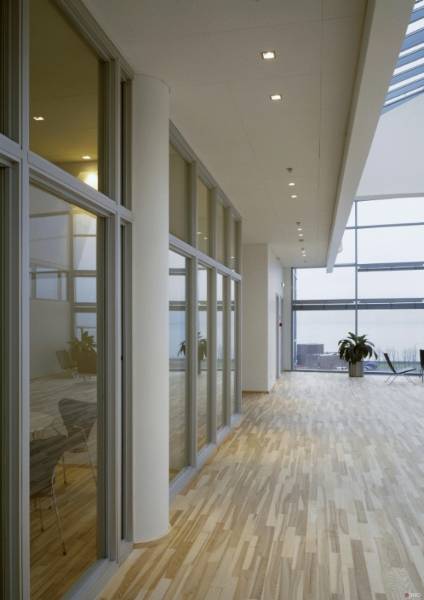

Glazed partition in aluminium frame.
Color
White, Grey, Blue
-
-
Finish
Satin, Anodized, Powder-coated
-
-
Material
Aluminium
-
-
Shape
Rectangle
-
-
Length
Bespoke
-
-
Width
Bespoke
-
-
Height
Bespoke
-
-
Specification
Unit size
-
-
-
Thickness
35 mm.
-
-
Framing, junctions, corners
Aluminium posts.
-
-
Glazed panels
-
-
-
Type
10 mm clear toughened glass., 12 mm clear toughened glass., 15 mm clear toughened glass., Manufacturer's standard.
-
-
Integral blinds
25 mm fine line blinds.
-
-
Door arrangement
-
-
-
Type
Frame and door leaf system.
-
-
Door frames
Deko EI30., Deko EI60.
-
-
Perimeters, skirtings, sills
Aluminium.
-
-
Trims
Aluminium.
-
-
Additional properties
Thickness
12 mm.
-
-
Corner
Clear silicone strip., AGHLA-90 and AGHLT-90 two part aluminium corner trims.
-
-
Base
Standard BK Base detail.
-
-
Head
Standard BK Glazing Channel.
-
-
Joint
Standard BK Glazing channel.
-
-
Wall start
Standard BK Glazing Channel.
-
-
Door width
686 mm., 786 mm., 826 mm., 926 mm., 1026 mm., 1126 mm., As schedule.
-
-
Door finish
NCS S 0502-Y White., NCS S 1502-G50 Y Grey., NCS S 3560-R80B Blue., Special order.
-
-
Sound insulation
37 dB Rw.
-
-
Fire resistance
EI 30 minute.
-
-
Frame finish
Satin anodized., White powder coated., RAL.
-
-
Sustainability data
Contains Red List materials
No
-
-
Country of material origin
Europe
-
-
Country of product manufacture
Europe
-
-
Recyclability
All Aluminium Can Be Recycled
-
-
