Summary

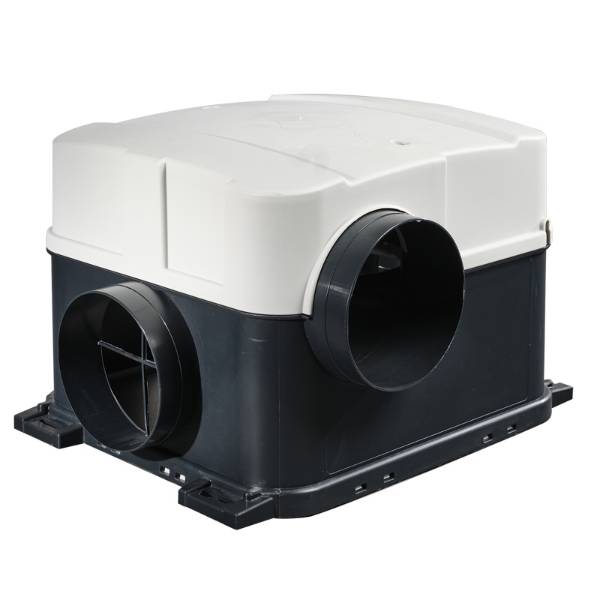

Range of fans providing continuous extract of stale, damp and polluted air to the outside environment.
Digital objects
-
-
Color
Grey
-
-
Finish
Smooth
-
-
Material
Polypropylene
-
-
Shape
Rectangle
-
-
Length
340 mm, 421 mm
-
-
Width
310 mm, 355 mm
-
-
Height
252 mm
-
-
Warranty description
Three year
-
-
Specification
Standards
-
-
-
Performance testing
Conforms to requirements of UK statutory Building Regulations and Technical Standards for Ventilation and BRE 398.
SAP Appendix Q tested.
Exceeds requirements of Building Regulations Approved Document L (England & Wales).
EU RoHS Directive compliant.
Conforms to requirements of EC council directives relating to Electromagnetic Compatibility and Electrical Safety: 2006/95/EC (LVD), 2004/108/EC (EMC).
-
-
Safety
To EN 60335-1:2002/A2:2006 and EN 60335-2-80:2003/A1:2004.
-
-
Third-party certification
CE marked.
-
-
Duty
Up to 121 L/s (430 m³/h) at 200 Pa.
Up to 128 L/s (461 m³/h) at 100 Pa.
-
-
Mounting
Ceiling., Other.
-
-
Controls
Manufacturer's standard., Adjustable humidity sensor.
-
-
Additional properties
Dimensions
340 x 310 x 252 mm.
-
-
Weight
5 kg.
-
-
Materials
Housing: talc-filled polypropylene.
-
-
Electrical
230 V, 50/ 60 Hz, 3 A fuse.
-
-
Performance
Maximum number of kitchen and/ or wet rooms: Six.
-
-
Colour/ Finish
Light grey/ dark grey.
-
-
Model
CME3.1 Q Plus.
-
-
Sustainability data
Material
Polypropylene
-
-
