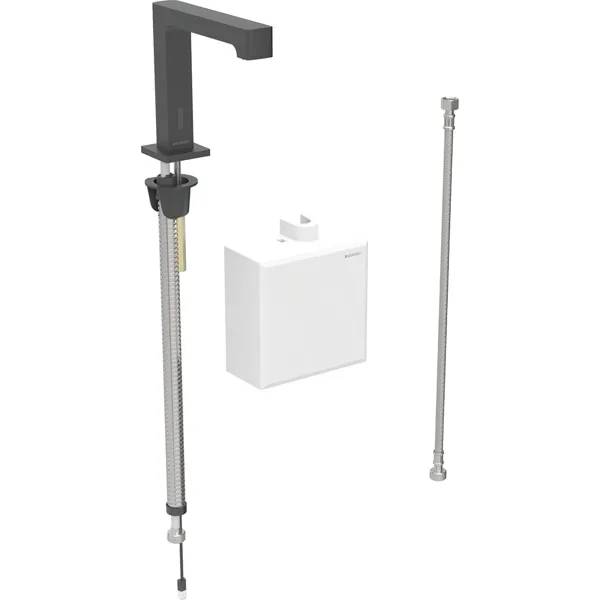

Geberit Brenta washbasin tap, deck-mounted, generator operation, with exposed function box
Geberit Brenta washbasin tap, deck-mounted, generator operation, with exposed function box
Geberit Brenta washbasin tap, deck-mounted, generator operation, with exposed function box

Verified 2 months ago

Geberit Sales Ltd

Verified 2 months ago

Geberit Sales Ltd

Verified 2 months ago

Geberit Sales Ltd
Summary
Deck-mounted washbasin tap, generator operation, with exposed function box.
-
-
Application
  • For extracting tap water.
  • For public and semipublic areas.
  • For installation in washbasins or washtops.
  • For connecting cold and hot water (only for model with mixer or thermostatic mixer).
  • For connecting cold or mixed water (only for model without mixer).
  • For use with stainless steel bowls.
  • For a flow rate of >3 L/min.
  • Model without mixer suitable for combination with continuous flow heater, see manufacturer’s technical data sheet "Washbasin taps with continuous flow heaters".
-
-
Description

Deck-mounted washbasin tap, generator operation, with exposed function box.

Features and benefits:

  • Automatic flush actuation.
  • Infrared user detection.
  • Self-adjusting IR sensor.
  • Vandal-resistant.
  • Volume flow control via tap aerator.
  • Temperature presetting via mixer (only for models with mixer or thermostatic mixer).
  • Not possible to set just hot water or just cold water (only for model with mixer or thermostatic mixer).
  • Power supply from generator and rechargeable battery.
  • Self-sustaining power supply.
  • Warning when rechargeable battery's state of charge is low.
  • Economy mode can be set.
  • Water saving due to quick-response two-beam scanning technology.
  • Functions can be set and queried with the Geberit Service Handy.
  • Device settings and operation with mobile device via integrated Bluetooth® interface.
  • Compatible with Geberit Control App.
  • Wirelessly connectable with Geberit Gateway via Bluetooth®.
  • Compatible with Geberit Connect.
  • Water saver program can be set.
  • Interval flush program can be set.
  • Continuous flush can be set individually.
  • Flush actuation can be deactivated.
  • With integrated check valve.
  • When used at least 50 times per day on average for a duration of 4 s each, the washbasin tap works in a self-sustaining manner.
  • Functional unit with built-in basket filters.
-
-
Color
Black, Silver
-
-
Finish
Matt, Chrome, Gloss, Stainless steel, Brushed, Coated
-
-
Material
Brass, Plastic
-
-
Shape
Other
-
-
Length
161 mm
-
-
Width
55 mm
-
-
Height
195 mm
-
-
SKU Code
116.175.14.1, 116.175.21.1, 116.175.SN.1, 116.176.14.1, 116.176.21.1, 116.176.SN.1
-
-

Specification

Form
Deck-mounted, without mixer.
-
-
Materials
-
-
-
Body
Brass.
-
-
Finish and colour
Black matt/ easy-to-clean coated.
-
-
Flow rate (maximum)
5 L/min at 3 bar.
-
-
Water supply temperature (maximum)
Manufacturer's standard.
-
-
Integral accessories
Washbasin tap with IR sensor and connection hose. Exposed function box with control electronics, functional unit and rechargeable battery for generator operation. Reinforced braided hoses 3/8". Tap aerator key. Fastening material.
-
-

Additional properties

Accessories
None., Geberit Service Handy.
-
-
Operating temperature
Water, maximum 60°C.
Short-term maximum 90°C.
-
-
Ingress protection
IPX4.
-
-
Voltage
Operating: 3.2 V d.c.
-
-
Operating pressure (maximum)
2–10 bar.
-
-
Flush mechanism
Interval flush adjustment range 1–168 hours (factory setting 24 hours).
Interval flush time adjustment range 5–200 seconds (factory setting 5 seconds).
-
-

Sustainability data

Material
Brass, Plastic
-
-
