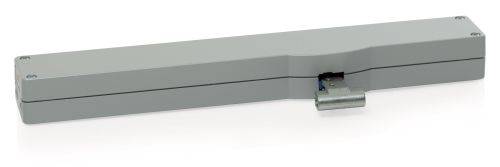

VCD Chain Actuator
Verified over a year ago
D+H UK
VCD 203/250 (SR).
nbs-symbol
Add to spec
VCD Chain Actuator
Verified over a year ago
D+H UK
Select variant..
nbs-symbol
Add to spec
VCD Chain Actuator
Verified over a year ago
D+H UK
Select variant..
nbs-symbol
Add to spec
Summary
Chain actuator ideal for day-to-day natural ventilation.
Color
Silver, White, Black
-
-
Finish
Powder-coated
-
-
Material
Aluminium
-
-
Specification
Stroke
250 mm.
-
-
Electrical supply
24 V d.c.
-
-
Operation
Microprocessor.
-
-
Finish
Powder-coated.
-
-
Accessories
Brackets., Cables.
-
-
Additional properties
Type
VCD 203 drive.
-
-
Colour
Silver (RAL 9006).
-
-
Duty cycle
30%.
-
-
Pressure
200 N.
-
-
Tensile force property
150 N.
-
-
Locking
2000 N.
-
-
Anticipated service life
> 10 000 double strokes.
-
-
Speed
Open running speed: 6 mm/s; Closed running speed: 6 mm/s.
-
-
Ingress protection (IP) rating
30.
-
-
Materials
Housing: Die-cast zinc.
-
-
Connection
2.5 m cable.
-
-
