Summary

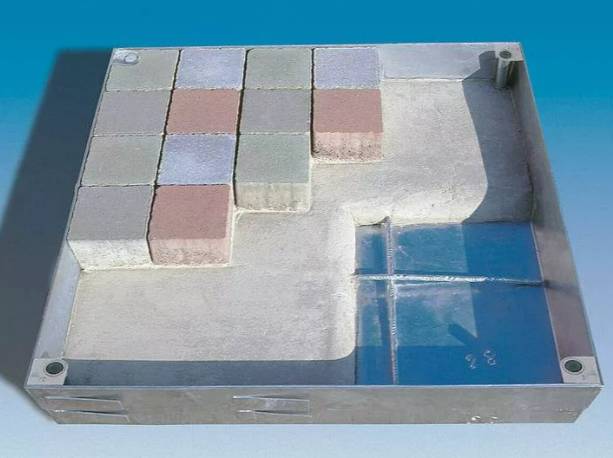

Floor access doors in galvanized steel with 102 mm deep recess. Tapered design allows easy opening. Virtually invisible when installed. EPDM seal. Robust steel mesh reinforcement.
Floor access doors in galvanized steel with 102 mm deep recess. Tapered design allows easy opening. Virtually invisible when installed. EPDM seal. Robust steel mesh reinforcement.
Application
Easy-to-open design accommodates a variety of flooring tiles and ceramic finishes.
Easy-to-open design accommodates a variety of flooring tiles and ceramic finishes.
Description
SBVH range is manufactured from galvanized steel with an EPDM Seal. Available with infill depth of 102 mm.
Features and benefits:
- Up to 125 kN test load (EN 124).
- Available as Lift Out or hinged.
- Sealed access cover in high-quality finish.
- Complete with EPDM seal.
- The cover is reinforced with a robust steel mesh reinforcement.
SBVH range is manufactured from galvanized steel with an EPDM Seal. Available with infill depth of 102 mm.
Features and benefits:
- Up to 125 kN test load (EN 124).
- Available as Lift Out or hinged.
- Sealed access cover in high-quality finish.
- Complete with EPDM seal.
- The cover is reinforced with a robust steel mesh reinforcement.
Shape
Rectangle, Square
Rectangle, Square
Finish
Galvanized
Galvanized
Material
Steel, Rubber
Steel, Rubber
Size
300 x 300 mm, 400 x 400 mm, 500 x 500 mm, 600 x 400 mm, 600 x 600 mm, 700 x 700 mm, 800 x 600 mm, 800 x 800 mm, 1000 x 600 mm, 1000 x 800 mm, 1000 x 1000 mm
300 x 300 mm, 400 x 400 mm, 500 x 500 mm, 600 x 400 mm, 600 x 600 mm, 700 x 700 mm, 800 x 600 mm, 800 x 800 mm, 1000 x 600 mm, 1000 x 800 mm, 1000 x 1000 mm
Specification
Configuration
Lift out.
Hinged and gas strut assisted.
Finish
Galvanized.
Galvanized.
Load class (minimum)
Not required., 125 kN.
Not required., 125 kN.
Frame or support
Galvanized steel.
Galvanized steel.
Additional properties
Size:
300 x 300 mm., 400 x 400 mm., 500 x 500 mm., 600 x 400 mm., 700 x 700 mm., 800 x 800 mm.
600 x 600 mm., 800 x 600 mm., 1000 x 600 mm., 1000 x 800 mm., 1000 x 1000 mm.
FireRating
Not required.
Not required.
Infill depth
102 mm.
102 mm.
Cover depth
125 mm.
125 mm.
CoverMaterial
Galvanized steel.
Galvanized steel.
Hardware
Stainless steel screws.
Stainless steel screws.
Locking
-
-
Seal
EPDM rubber.
EPDM rubber.
Reinforcement
Steel mesh.
Steel mesh.
