Summary

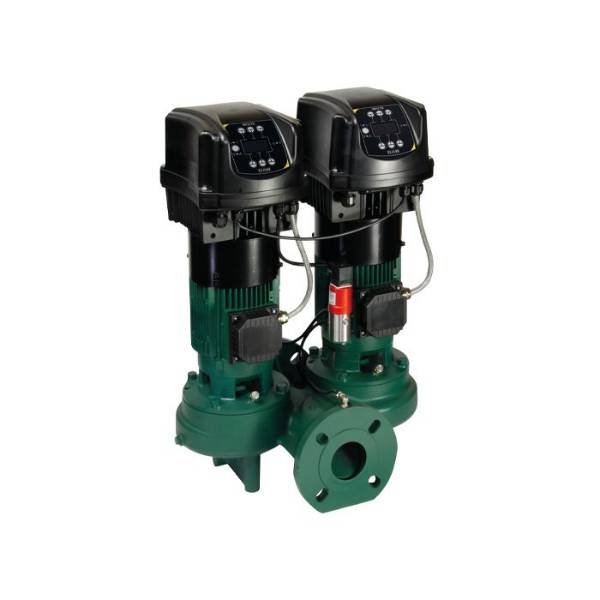

Electronic in-line pumps for water circulation in conditioning and heating systems, even in the presence of solar thermal panels and for circulation of drinkable hot water in commercial buildings.
-
-
Color
Green
-
-
Finish
Painted
-
-
Material
Cast iron, Stainless steel, EPDM, Other, Polymer
-
-
Length
250 mm, 280 mm, 340 mm
-
-
Width
400 mm, 440 mm, 535 mm, 537 mm
-
-
Height
602 mm, 608 mm, 622 mm, 639 mm, 641 mm, 716 mm, 719 mm, 746 mm
-
-
Warranty description
Two year
-
-
SKU Code
60214714, 60214715, 60214716, 60214717, 60214718, 60214719, 60214720, 60214721, 60215116, 60215118, 60215119, 60215120, 60215121
60214714, 60214715, 60214716, 60214717, 60214718, 60214719, 60214720, 60214721, 60215116, 60215118, 60215119, 60215120, 60215121
60214714, 60214715, 60214716, 60214717, 60214718, 60214719, 60214720, 60214721, 60215116, 60215118, 60215119, 60215120, 60215121
GTIN/EAN
-
-
-
Specification
General requirements
Pumps generally
-
-
Arrangement
Horizontal.
-
-
Duties
-
-
-
Operation
Duty.
-
-
Flow rate
Up to 16.8 m³/h.
-
-
Resistance
Manufacturer's standard.
-
-
Motor
-
-
-
Nominal voltage
Single phase 230 V a.c.
-
-
Frequency
50 Hz.
-
-
Motor and impeller speed (maximum)
2892 rpm.
-
-
Speed control
Fixed.
-
-
Casing material
Cast iron 250 UNI EN 185.
-
-
Additional properties
Dimensions
Overall: 250 x 400 x 608 mm.
Centre distance: 250 mm.
Centre distance: 250 mm.
-
-
Weight
56 kg.
-
-
Fluid temperature range
-15°C to +120°C.
-
-
Head
Up to 8.4 m.
-
-
Motor
Air-cooled two-pole asynchronous motor, efficiency class IE2.
Protection class: IP55.
Insulation class: F.
0.3 kW/ 0.4 hp (nominal).
Protection class: IP55.
Insulation class: F.
0.3 kW/ 0.4 hp (nominal).
-
-
Connections
DN40.
-
-
Impeller
Technopolymer B.
-
-
Sustainability data
Contains Red List materials
No
-
-
Country of product manufacture
Italy
-
-
