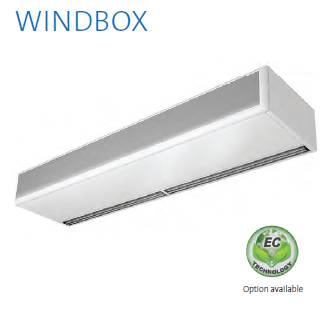

Windbox Air Curtain
Windbox Air Curtain
Windbox Air Curtain

Last verified by manufacturer over a year ago

JS Air Curtains

Last verified by manufacturer over a year ago

JS Air Curtains

Last verified by manufacturer over a year ago

JS Air Curtains
Summary
A horizontal air curtain.
-
-
Application

Suitable for wide entrances such as shopping centres, airports or sports arenas.

-
-
Description

A low noise, horizontal air curtain.


Features and benefits:

  • The Windbox offers a functional design with many features, from energy saving controls to special finishes.
  • Low noise, centrifugal double inlet fans are driven by an external rotor motor with a built-in thermal protection contact.
  • The perforated inlet grilles have filter functions that are easy to maintain.
  • A low turbulence discharge nozzle with a double blow-out vane is aerofoil shaped and can be adjustable from 0 to 15˚ on either side.
  • A standard manual controller, 7 metres of control cable and an IR handheld remote are included. Other control options available include the Clever controller or the BMS interface.
  • Tested to AMCA 220-05.
-
-
Shape
Rectangle
-
-
Color
White
-
-
Size
920 x 460 x 260 mm, 1420 x 460 x 260 mm, 1920 x 460 x 260 mm, 2420 x 460 x 260 mm, 2920 x 460 x 260 mm
-
-

Specification

Heating method
Electric.
-
-
Arrangement
Horizontal.
-
-
Output
0.198 kW.
-
-
Air volume
2760 m³/h.
-
-
Mounting height
3.5 m.
-
-
Casing finish
Manufacturers standard.
-
-
Accessories
Not required., Clever controller., BMS interface., EC fan.
-
-

Additional properties

Voltage
400 V.
-
-
Frequency
50Hz.
-
-
Weight
57 kg.
-
-
Noise
57 dB.
-
-
Dimensions
1420 x 460 x 260 mm.
-
-
NominalHeatingCapacity
12 kW.
-
-
Fan
AC.
-
-
