Summary

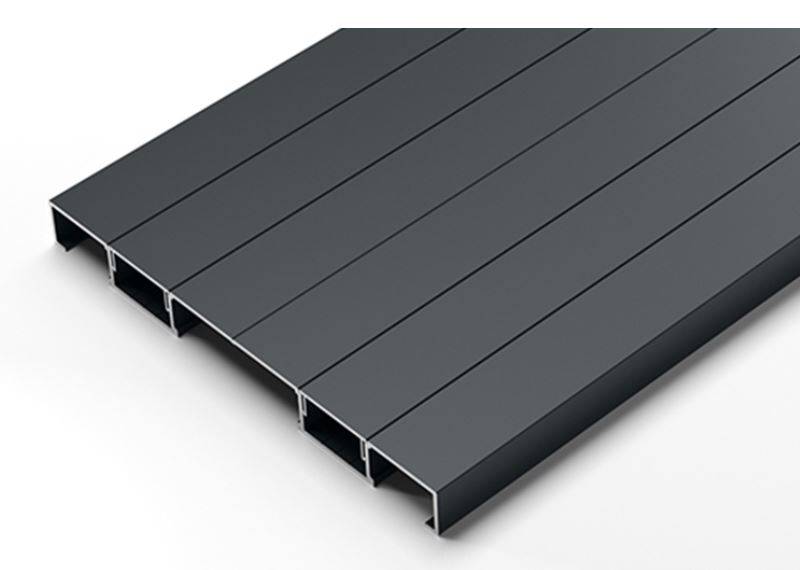

Non combustible aluminium decking board with A2fl-s1 fire rating.
Non combustible aluminium decking board with A2fl-s1 fire rating.
Application
Suitable for new build and refurbishment application including high rise balconies, roof terraces and walkways.
Suitable for new build and refurbishment application including high rise balconies, roof terraces and walkways.
Description
The extra wide 295mm board means installation time is reduced, and large areas can be covered quickly with additional support leg options that allow the wide board to be ripped down in width.
Features and benefits:
- Non-combustible Class A2FL-s1.
- 100% recycled aluminium; fully recyclable.
- Anti-slip coating: friendly underfoot.
- Long span, extra-wide panel: fast fix.
- Wider channel: lifting eye options.
- Concealed fixings: no clips.
The extra wide 295mm board means installation time is reduced, and large areas can be covered quickly with additional support leg options that allow the wide board to be ripped down in width.
Features and benefits:
- Non-combustible Class A2FL-s1.
- 100% recycled aluminium; fully recyclable.
- Anti-slip coating: friendly underfoot.
- Long span, extra-wide panel: fast fix.
- Wider channel: lifting eye options.
- Concealed fixings: no clips.
Digital objects
Color
Grey, Other
Grey, Other
Finish
Smooth
Smooth
Material
Aluminium
Aluminium
Shape
Rectangle
Rectangle
Length
4000 mm, 5000 mm, 6000 mm
4000 mm, 5000 mm, 6000 mm
Width
295 mm
295 mm
Height
20 mm, 30 mm
20 mm, 30 mm
Warranty description
20 year
20 year
Specification
Profile
Plain.
Plain.
Finished size
-
-
Section
20 x 295 mm.
30 x 295 mm.
Length
4 m., 5 m., 6 m., Bespoke.
4 m., 5 m., 6 m., Bespoke.
Reaction to fire
Class A2FL-s1.
Class A2FL-s1.
Recycled content (minimum)
100%.
100%.
Additional properties
Slip resistance
70 PTV (Dry) 46 PTV (Wet).
70 PTV (Dry) 46 PTV (Wet).
Colour
Anthracite RAL 7016., RAL.
Anthracite RAL 7016., RAL.
TensileStrength
241 MPa.
241 MPa.
Elastic modulus
69 GPa.
69 GPa.
Elongation at break
18%.
18%.
Fixing
Concealed fixing.
Concealed fixing.
Impact resistance
To EN 477, 1.10 mm.
To EN 477, 1.34 mm.
Force
>10 kN.
>10 kN.
Mass
3.56 kg/m.
4.02 kg/m.
Material/ Finish
Aluminium; qualicoat 1.
Aluminium; qualicoat 1.
Sustainability data
Contains Red List materials
No
No
Country of material origin
Spain
Spain
Country of product manufacture
United Kingdom
United Kingdom
Recyclability
100%
100%
Recycled content
100 %
100 %
