Compare variants

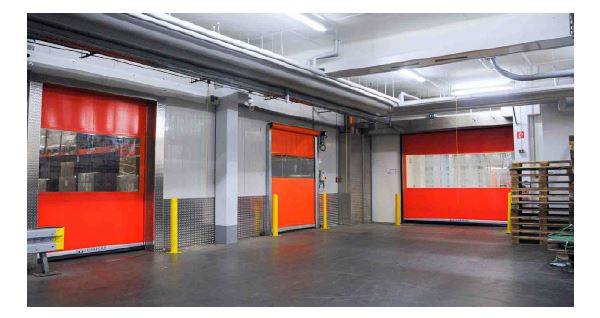

The Rapidor Pro fast-acting door is designed for high use or external doorways, with an innovative curtain tensioning system ensuring superb weather resistance.
The Rapidor Pro fast-acting door is designed for high use or external doorways, with an innovative curtain tensioning system ensuring superb weather resistance.
Blue, Grey, Orange, Red, Yellow
Blue, Grey, Orange, Red, Yellow
Galvanized, Powder-coated
Galvanized, Powder-coated
Stainless steel, Steel, Polyvinyl chloride (PVC)
Stainless steel, Steel, Polyvinyl chloride (PVC)
Square, Rectangle
Square, Rectangle
Bespoke
Bespoke
Bespoke
Bespoke
Specification
2 m/s (maximum).
3 m/s (maximum).
0.8 m/s.
0.8 m/s.
Rapid roll up.
Rapid roll up.
Face-fitted across opening., Fitted into reveal.
Face-fitted across opening., Fitted into reveal.
Heavy duty fabric, protective PVC composite layer and integrated tensioning system.
Heavy duty 3 mm PVC fabric, two inlays, integrated steel wind-pressure bars with lateral double rollers and permanent curtain-tension.
Galvanized steel., Powder-coated., Stainless steel.
Galvanized steel., Powder-coated., Stainless steel.
Remote controls., Radar sensors., Induction loop., Pull cord switch., Interlocking., Other.
Remote controls., Radar sensors., Induction loop., Pull cord switch., Interlocking., Other.
Not required., Additional wind protection., Additional bug/ rodent protection., Additional crash-protection to ensure door is not damaged if impacted., Adaptations for harsh environments., Adaptations for freezer areas including heating to motor and controls.
Not required., Additional wind protection., Additional bug/ rodent protection., Additional crash-protection to ensure door is not damaged if impacted., Adaptations for harsh environments., Adaptations for freezer areas including heating to motor and controls.
Additional properties
To DIN EN 13241-1.
To DIN EN 13241-1.
Advanced door control panel with LCD display, advanced programming and diagnostic codes.
Advanced door control panel with LCD display, advanced programming and diagnostic codes.
240 V single phase, high usage frequency inverter.
240 V single phase, high usage frequency inverter.
2500 mm high safety light curtain.
2500 mm high safety light curtain.
5000 x 5000 mm (maximum).
10 000 x 8500 mm (maximum).
Not required., UPS Battery.
Not required., UPS Battery.
Manual handchain, UPS battery., Counterbalance release.
Manual handchain, UPS battery., Counterbalance release.
RAL 1018 Zinc yellow., RAL 2004 Pure orange., RAL 3002 Carmine red., RAL 5010 Gentian blue., RAL 7038 Agate grey.
RAL 2004 Pure orange., RAL 5010 Gentian blue., RAL 7038 Agate grey.
Anodized aluminium with PVC profile to seal floor unevenness., Anti-crash system.
Anodized aluminium with PVC profile to seal floor unevenness., Anti-crash system.
None., Hood and motor cover.
None., Hood and motor cover.
900 mm high vision panel., Additional vision panels., Fully transparent curtain.
900 mm high vision panel., Additional vision panels., Fully transparent curtain.
Normal wind.
Class 3 increased wind load.
