Summary

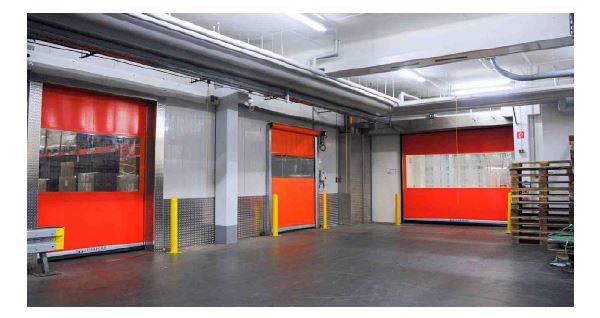

The Rapidor Pro fast-acting door is designed for high use or external doorways, with an innovative curtain tensioning system ensuring superb weather resistance.
The Rapidor Pro fast-acting door is designed for high use or external doorways, with an innovative curtain tensioning system ensuring superb weather resistance.
Application
- Internal and external doors.
- Loading doors.
- Factories.
- Warehouses.
- Distribution centres.
- Supermarkets.
- Internal and external doors.
- Loading doors.
- Factories.
- Warehouses.
- Distribution centres.
- Supermarkets.
Description
An advanced PVC high speed door particularly well-suited to high-usage or external applications. Its integral wind bars and innovative curtain tensioning system ensures it gives superb weather and wind resistance. The door opens at up to 2900 mm per second – helping to greatly improve productivity and minimize the risk of impact and doors being left open. It also feature a dependable frequency drive unit to minimize maintenance costs and ensure consistent and reliable operation.
Rapidor Pro is a safe and user-friendly door and can utilize a wide range of controls including: floor loops; proximity sensors; remote control; and pull cord allowing it to be configured to client’s particular requirements. The 2.5 m high integral light curtain offers safety for traffic through the door, providing a superior alternative to traditional safety edge or photo cell.
Features and benefits:
- Low on-going maintenance costs due to anti-crash system and manual reset with no need to call a door engineer.
- High-speed operation of up to 2900 mm/ second reduces operational costs by improving efficiency and reducing energy wastage and also reduces the risk of the doors being hit.
- Multi-function control panel and a wide range of electronic accessories allow individual doors to be configured to bespoke requirements.
- Anodised aluminium construction for corrosion resistance.
- Advanced control panel and safety light curtain.
- Breakaway bottom bar which can be easily reset following impact.
- Heavy duty PVC curtain with an curtain tensioning system.
- Proven design with excellent wind resistance up to class 3
- Full width vision panel at eye level included as standard.
- Proven reliable design with wind resistance.
- Helps to reduce heat loss and vermin.
- Rapidor Pro high speed door option available and is well-suited to high usage or external applications.
An advanced PVC high speed door particularly well-suited to high-usage or external applications. Its integral wind bars and innovative curtain tensioning system ensures it gives superb weather and wind resistance. The door opens at up to 2900 mm per second – helping to greatly improve productivity and minimize the risk of impact and doors being left open. It also feature a dependable frequency drive unit to minimize maintenance costs and ensure consistent and reliable operation.
Rapidor Pro is a safe and user-friendly door and can utilize a wide range of controls including: floor loops; proximity sensors; remote control; and pull cord allowing it to be configured to client’s particular requirements. The 2.5 m high integral light curtain offers safety for traffic through the door, providing a superior alternative to traditional safety edge or photo cell.
Features and benefits:
- Low on-going maintenance costs due to anti-crash system and manual reset with no need to call a door engineer.
- High-speed operation of up to 2900 mm/ second reduces operational costs by improving efficiency and reducing energy wastage and also reduces the risk of the doors being hit.
- Multi-function control panel and a wide range of electronic accessories allow individual doors to be configured to bespoke requirements.
- Anodised aluminium construction for corrosion resistance.
- Advanced control panel and safety light curtain.
- Breakaway bottom bar which can be easily reset following impact.
- Heavy duty PVC curtain with an curtain tensioning system.
- Proven design with excellent wind resistance up to class 3
- Full width vision panel at eye level included as standard.
- Proven reliable design with wind resistance.
- Helps to reduce heat loss and vermin.
- Rapidor Pro high speed door option available and is well-suited to high usage or external applications.
Color
Blue, Grey, Orange, Red, Yellow
Blue, Grey, Orange, Red, Yellow
Finish
Galvanized, Powder-coated
Galvanized, Powder-coated
Material
Stainless steel, Steel, Polyvinyl chloride (PVC)
Stainless steel, Steel, Polyvinyl chloride (PVC)
Shape
Square, Rectangle
Square, Rectangle
Width
Bespoke
Bespoke
Height
Bespoke
Bespoke
Specification
Speed (minimum)
-
-
Opening
2 m/s (maximum).
3 m/s (maximum).
Closing
0.8 m/s.
0.8 m/s.
Format
Rapid roll up.
Rapid roll up.
Arrangement
Face-fitted across opening., Fitted into reveal.
Face-fitted across opening., Fitted into reveal.
Curtain material
Heavy duty fabric, protective PVC composite layer and integrated tensioning system.
Heavy duty 3 mm PVC fabric, two inlays, integrated steel wind-pressure bars with lateral double rollers and permanent curtain-tension.
Frame and guides
-
-
Material
Galvanized steel., Powder-coated., Stainless steel.
Galvanized steel., Powder-coated., Stainless steel.
Operation
Remote controls., Radar sensors., Induction loop., Pull cord switch., Interlocking., Other.
Remote controls., Radar sensors., Induction loop., Pull cord switch., Interlocking., Other.
Accessories
Not required., Additional wind protection., Additional bug/ rodent protection., Additional crash-protection to ensure door is not damaged if impacted., Adaptations for harsh environments., Adaptations for freezer areas including heating to motor and controls.
Not required., Additional wind protection., Additional bug/ rodent protection., Additional crash-protection to ensure door is not damaged if impacted., Adaptations for harsh environments., Adaptations for freezer areas including heating to motor and controls.
Additional properties
Standards
To DIN EN 13241-1.
To DIN EN 13241-1.
Control panel
Advanced door control panel with LCD display, advanced programming and diagnostic codes.
Advanced door control panel with LCD display, advanced programming and diagnostic codes.
Power supply
240 V single phase, high usage frequency inverter.
240 V single phase, high usage frequency inverter.
Safety
2500 mm high safety light curtain.
2500 mm high safety light curtain.
Dimensions
5000 x 5000 mm (maximum).
10 000 x 8500 mm (maximum).
Battery back-up
Not required., UPS Battery.
Not required., UPS Battery.
Emergency release
Manual handchain, UPS battery., Counterbalance release.
Manual handchain, UPS battery., Counterbalance release.
Curtain colour
RAL 1018 Zinc yellow., RAL 2004 Pure orange., RAL 3002 Carmine red., RAL 5010 Gentian blue., RAL 7038 Agate grey.
RAL 2004 Pure orange., RAL 5010 Gentian blue., RAL 7038 Agate grey.
Bottom rail
Anodized aluminium with PVC profile to seal floor unevenness., Anti-crash system.
Anodized aluminium with PVC profile to seal floor unevenness., Anti-crash system.
Motor cover
None., Hood and motor cover.
None., Hood and motor cover.
Vision panels
900 mm high vision panel., Additional vision panels., Fully transparent curtain.
900 mm high vision panel., Additional vision panels., Fully transparent curtain.
Wind resistance
Normal wind.
Class 3 increased wind load.
