Summary

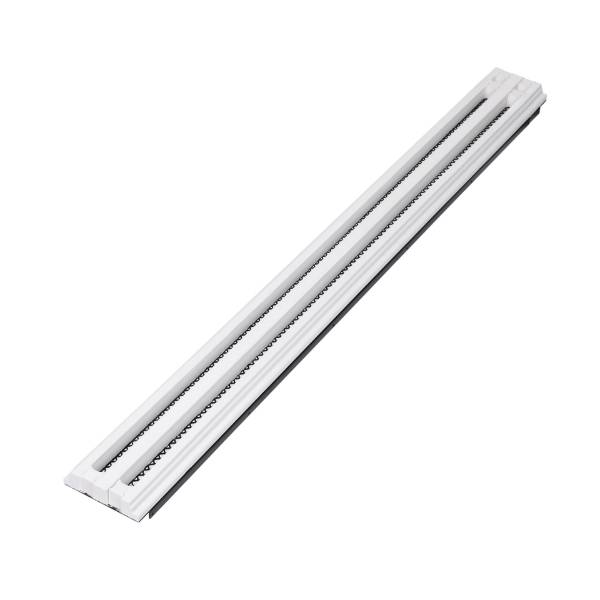

Gypsum air diffuser.
-
-
Application
Ceilings and walls.
-
-
Description
An innovative, modern and elegant air diffuser ideal for ceiling or wall applications. Manufactured using an exclusive gypsum composite, these seamless air diffusers are designed to complement any room or space.
Like all Ventmann air diffusers, the diffusers create a durable bond with the surrounding plasterboard wall or the ceiling and can be painted and finished exactly the same as the surrounding surface. Simply insert into place, fill in the gap, and finish the wall or ceiling as normal.
Features and benefits:
- Frameless.
- Plastered in.
- Paintable.
-
-
Color
White
-
-
Material
Gypsum
-
-
Shape
Rectangle
-
-
Length
625 mm, 1000 mm, 1250 mm
-
-
Width
99 mm, 129 mm, 135 mm
-
-
Height
37.5 mm
-
-
Specification
Classification data
Application
Extract., Supply.
-
-
Shape
Rectangular.
-
-
Arrangement
Non-adjustable.
-
-
Position
Ceiling.
-
-
Material
Gypsum.
-
-
Finish
To match ceiling.
-
-
Additional properties
SlotWidth
12 mm.
-
-
SlotLength
625 mm., 1000 mm., 1250 mm.
-
-
OverallWidth
99 mm.
-
-
Plenum box
Complete with plenum box.
-
-
Integral accessories
Acoustic airbox GTG 75 625., Acoustic airbox GTG 75 1000., Acoustic airbox GTG 125 625., Acoustic airbox GTG 125 1000., Acoustic airbox GTG 160 625., Acoustic airbox GTG 160 1000., Acoustic airbox GTG 75 1250., Acoustic airbox GTG 125 1250., Acoustic airbox GTG 160 1250.
-
-
Sustainability data
Contains Red List materials
No
-
-
Country of product manufacture
Lithuania
-
-
