Summary
Sound absorbing system with vertical baffles suitable for humid areas.
Sound absorbing system with vertical baffles suitable for humid areas.
Sound absorbing system with vertical baffles suitable for humid areas.
Application
Suitable for humid areas with advanced cleaning.
Suitable for humid areas with advanced cleaning.
Suitable for humid areas with advanced cleaning.
Description
Ecophon Hygiene Performance™ Baffle is an easy to clean, sound absorbing system with vertical baffles suitable for humid areas. The baffles withstand advanced cleaning, such as steam and high/ low pressure washing on a regular basis.
Features and benefits:
- Absorption class C.
- Akutex HS coating with painted edges.
- For humid areas with advanced cleaning.
- Akutex™ HS surface - a painted, stain-protected surface for hygiene applications where there are high demands for wet cleaning.
- High resistance to the most common detergents and disinfectants.
- CE marked according to the European harmonized standard EN 13964:2014.
- Cradle to Cradle Certified® at Bronze level.
- Connect Guiding Pin, installed at 1200/1800 mm centres (not suitable for use in controlled environments i.e. food processing areas)
Ecophon Hygiene Performance™ Baffle is an easy to clean, sound absorbing system with vertical baffles suitable for humid areas. The baffles withstand advanced cleaning, such as steam and high/ low pressure washing on a regular basis.
Features and benefits:
- Absorption class C.
- Akutex HS coating with painted edges.
- For humid areas with advanced cleaning.
- Akutex™ HS surface - a painted, stain-protected surface for hygiene applications where there are high demands for wet cleaning.
- High resistance to the most common detergents and disinfectants.
- CE marked according to the European harmonized standard EN 13964:2014.
- Cradle to Cradle Certified® at Bronze level.
- Connect Guiding Pin, installed at 1200/1800 mm centres (not suitable for use in controlled environments i.e. food processing areas)
Ecophon Hygiene Performance™ Baffle is an easy to clean, sound absorbing system with vertical baffles suitable for humid areas. The baffles withstand advanced cleaning, such as steam and high/ low pressure washing on a regular basis.
Features and benefits:
- Absorption class C.
- Akutex HS coating with painted edges.
- For humid areas with advanced cleaning.
- Akutex™ HS surface - a painted, stain-protected surface for hygiene applications where there are high demands for wet cleaning.
- High resistance to the most common detergents and disinfectants.
- CE marked according to the European harmonized standard EN 13964:2014.
- Cradle to Cradle Certified® at Bronze level.
- Connect Guiding Pin, installed at 1200/1800 mm centres (not suitable for use in controlled environments i.e. food processing areas)
Product certifications
Digital objects
Color
White
White
White
Finish
Galvanized, Painted
Galvanized, Painted
Galvanized, Painted
Material
High-density glass wool, Steel
High-density glass wool, Steel
High-density glass wool, Steel
Shape
Rectangle
Rectangle
Rectangle
Length
1200 mm
1200 mm
1200 mm
Width
600 mm
600 mm
600 mm
Height
50 mm
50 mm
50 mm
Warranty description
Ten year
Ten year
Ten year
SKU Code
M492C3
M493C3
M494C4
Specification
Classification data
Ceiling support
Connect™ T24 C3 grid.
Connect™ T24 C3 grid.
Connect™ T24 C4 grid.
Support fasteners
Connect™ adjustable hanger and hanger clips.
Connect™ adjustable hanger and hanger clips.
Connect™ adjustable hanger and hanger clips.
Ceiling units
Hygiene Performance™ Baffle.
Hygiene Performance™ Baffle.
Hygiene Performance™ Baffle.
System accessories
-
-
-
Additional properties
Installation

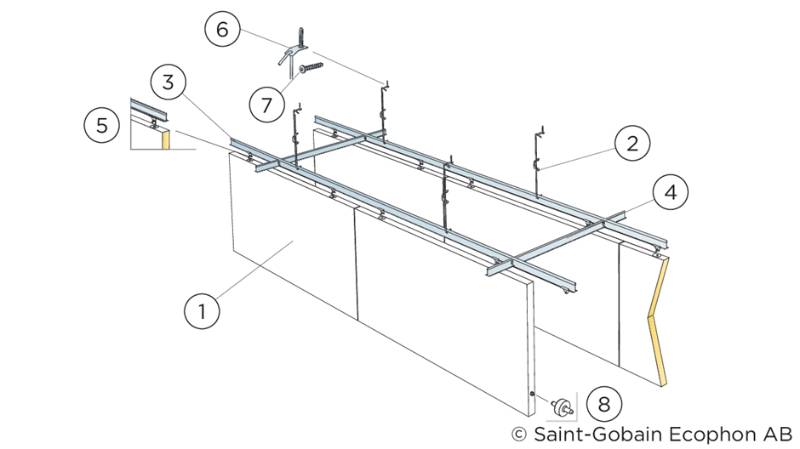

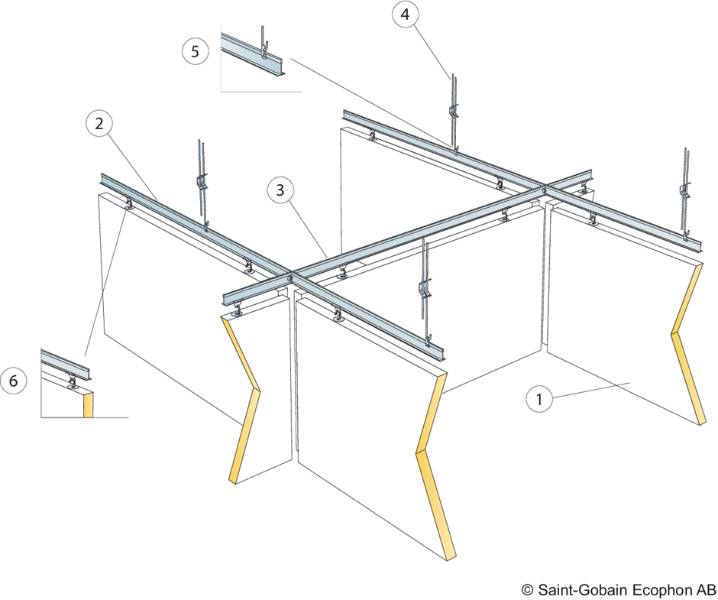

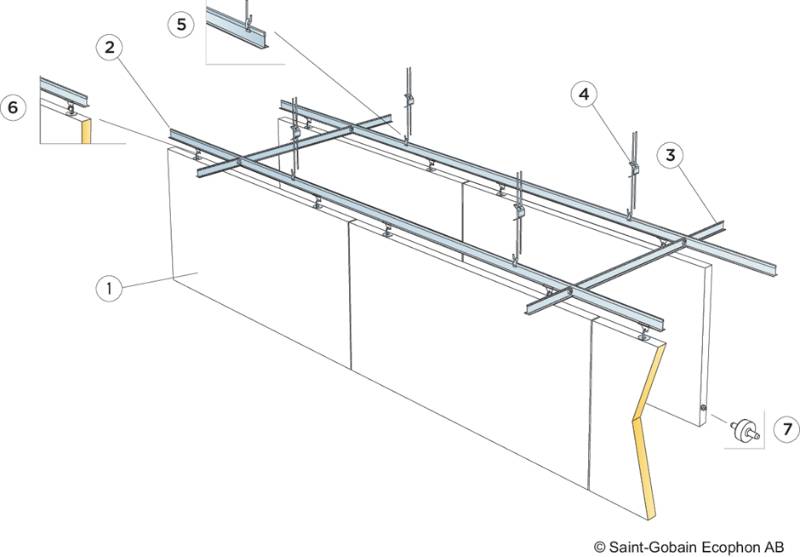

M492C3 - baffle installation.
M493C3 - baffle installation.
M494C4 - baffle installation.
Sound absorption
To EN ISO 354, Class A.
To EN ISO 354, Class A.
To EN ISO 354, Class A.
Noise reduction coefficient (NRC)
To ASTM C 423, 0.75.
To ASTM C 423, 0.75.
To ASTM C 423, 0.75.
Reaction to fire
To EN 13501-1, A2-s1,d0.
To EN 13501-1, A2-s1,d0.
To EN 13501-1, A2-s1,d0.
Size (length x width)
1200 x 600 mm.
1200 x 600 mm.
1200 x 600 mm.
Thickness (overall)
50 mm.
50 mm.
50 mm.
Weight
4.8 kg/m².
4.8 kg/m².
4.8 kg/m².
Edges
Painted.
Painted.
Painted.
Surface finish
Akutex™ HS.
Akutex™ HS.
Akutex™ HS.
Colour
White 500.
White 500.
White 500.
Core material
Glass wool.
Glass wool.
Glass wool.
Constant humidity resistance
To EN 13964:2014, Class C, relative humidity 95% and 30°C.
To EN 13964:2014, Class C, relative humidity 95% and 30°C.
To EN 13964:2014, Class C, relative humidity 95% and 30°C.
Indoor climate
Eurofins Indoor Air Comfort®: IAC Gold.
French VOC: A+.
Finnish M1.
French VOC: A+.
Finnish M1.
Eurofins Indoor Air Comfort®: IAC Gold.
French VOC: A+.
Finnish M1.
French VOC: A+.
Finnish M1.
Eurofins Indoor Air Comfort®: IAC Gold.
French VOC: A+.
Finnish M1.
French VOC: A+.
Finnish M1.
Standard
CE marked according to the European harmonized standard EN 13964:2014.
CE marked according to the European harmonized standard EN 13964:2014.
CE marked according to the European harmonized standard EN 13964:2014.
Third party product certification
Cradle to Cradle Certified® Bronze.
Cradle to Cradle Certified Material Health Certificate™ Silver.
Cradle to Cradle Certified Material Health Certificate™ Silver.
Cradle to Cradle Certified® Bronze.
Cradle to Cradle Certified Material Health Certificate™ Silver.
Cradle to Cradle Certified Material Health Certificate™ Silver.
Cradle to Cradle Certified® Bronze.
Cradle to Cradle Certified Material Health Certificate™ Silver.
Cradle to Cradle Certified Material Health Certificate™ Silver.
Sustainability data
Contains Red List materials
No
No
No
Country of material origin
Sweden
Sweden
Sweden
Country of product manufacture
Sweden
Sweden
Sweden
Material
High-density glass wool, Steel
High-density glass wool, Steel
High-density glass wool, Steel
Carbon dioxide equivalent
Normalized unit
(kg CO₂ eq/kg) A1–A3 ('Production stage') :
-
A1–A3 ('Production stage') :
-
A1–A3 ('Production stage') :
-
Declared unit
Certified
A1–A3 ('Production stage') :
8.30
Certified
A1–A3 ('Production stage') :
8.30
Certified
A1–A3 ('Production stage') :
8.30
Recyclability
Fully recyclable
Fully recyclable
Fully recyclable
Recycled content
57 %
57 %
57 %
Expected Life
50 year
50 year
50 year
