Summary

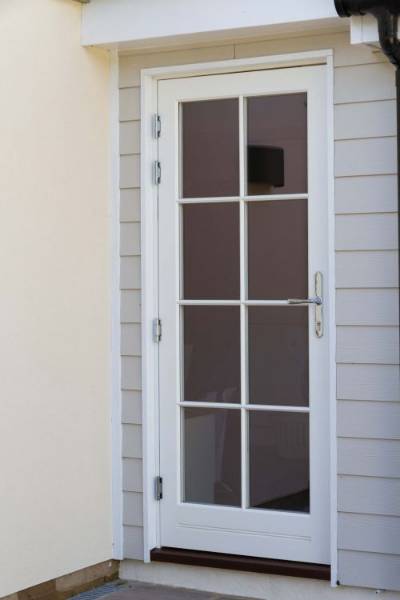

Timber single doorset.
Timber single doorset.
Application
Suitable for exterior application.
Suitable for exterior application.
Description
Made-to-order, double glazed, high performance timber doorset. It is internally glazed and fully weather sealed to provide thermal and acoustic performance. Fanlights and sidelight options are available within the range, as well as shaped frame and door.
Features and benefits:
- Chain of Custody certified timber as standard.
- Factory hung on four Nico 3D adjustable hinges with espagnolette locking.
- Latch and mortice dead lock.
- Raised and fielded panels as standard with other options available.
- Internally glazed providing a secure anti-burglar solution and easier maintenance.
- Hardwood sill.
- Fully weather-stripped for thermal and acoustic performance.
- Three coat white factory finished spray applied micro-porous paint RAL 9010 as standard.
- CE Marked to BS EN 14351-1+A1:2010.
- Meets Pas24:2016
- Material marine specification: For projects in coastal or island environments please contact manufacturer for information.
- Installation: Manufacturer installation service packages are available, contact manufacturer for information.
Accreditations:
- FENSA registered company.
- BM Trada Chain of Custody Certification.
- Certified Timber.
- World Land Trust Member.
Made-to-order, double glazed, high performance timber doorset. It is internally glazed and fully weather sealed to provide thermal and acoustic performance. Fanlights and sidelight options are available within the range, as well as shaped frame and door.
Features and benefits:
- Chain of Custody certified timber as standard.
- Factory hung on four Nico 3D adjustable hinges with espagnolette locking.
- Latch and mortice dead lock.
- Raised and fielded panels as standard with other options available.
- Internally glazed providing a secure anti-burglar solution and easier maintenance.
- Hardwood sill.
- Fully weather-stripped for thermal and acoustic performance.
- Three coat white factory finished spray applied micro-porous paint RAL 9010 as standard.
- CE Marked to BS EN 14351-1+A1:2010.
- Meets Pas24:2016
- Material marine specification: For projects in coastal or island environments please contact manufacturer for information.
- Installation: Manufacturer installation service packages are available, contact manufacturer for information.
Accreditations:
- FENSA registered company.
- BM Trada Chain of Custody Certification.
- Certified Timber.
- World Land Trust Member.
Color
White, Brown, Other
White, Brown, Other
Finish
Painted, Stained
Painted, Stained
Material
Wood, Glass
Wood, Glass
Shape
Rectangle
Rectangle
Width
Bespoke
Bespoke
Height
Bespoke
Bespoke
Warranty description
30 year
30 year
Specification
Classification data
Standard
To BS EN 14351-1+A1:2010.
To BS EN 14351-1+A1:2010.
Configuration
-
-
Doorset size
As drawing., As schedule.
As drawing., As schedule.
Performance
-
-
Thermal
1.4 W/m²K.
1.5 W/m²K.
Intruder resistance
-
-
Minimum requirement
To PAS 24, 2012.
To PAS 24, 2012.
Frame
-
-
Material
Hardwood.
Hardwood.
Species
Engineered Accoya., Engineered European larch., Engineered European oak., Engineered hardwood., Engineered redwood.
Engineered Accoya., Engineered European larch., Engineered European oak., Engineered hardwood., Engineered redwood.
Perimeter seals or inserts
Weather-stripped.
Weather-stripped.
Finish
Painted., Painted, dual finish., Stained.
Painted., Painted, dual finish., Stained.
Colour
Farrow and Ball colour match, RAL., Stain., White, RAL 9010.
Farrow and Ball colour match, RAL., Stain., White, RAL 9010.
Installation fasteners
Manufactured using mortise and tenon joints, glued and mechanically fixed.
Manufactured using mortise and tenon joints, glued and mechanically fixed.
Door leaf
-
-
Panel details
Raised and fielded double glazed toughened panel with top rail , stiles, middle rail and muntins.
Raised and fielded double glazed toughened panel with top rail , stiles, middle rail and muntins.
Species
Engineered Accoya., Engineered European larch., Engineered European oak., Engineered hardwood., Engineered redwood.
Engineered Accoya., Engineered European larch., Engineered European oak., Engineered hardwood., Engineered redwood.
Perimeter seals
Weather.
Weather.
Glazing
-
-
Type
Double glazed with toughened planitherm one and argon infill.
Double glazed laminated with toughened planitherm one and argon infill.
Beading
-
-
Type
Internal and external.
Internal and external.
Material
Hardwood.
Hardwood.
Fixing
Mechanically fixed.
Mechanically fixed.
Hardware
Standard handles.
Standard handles.
Accessories
Not required., Letter plate., Satin obscure glass., Special order.
Not required., Letter plate., Satin obscure glass., Special order.
Additional properties
Third party accreditation
CE Marked, FENSA registered company, BM Trada Chain of Custody Certification, FSC Certified timber and World Land Trust member.
CE Marked, FENSA registered company, BM Trada Chain of Custody Certification, FSC Certified timber and World Land Trust member.
Door frame profile
Lambs tongue., Ovolo., Square.
Lambs tongue., Ovolo., Square.
Glass units and whole product U-values/ G-values
0.52.
0.61.
Perimeter spacer bar
Black warm edge perimeter spacer with black warm edge integral spacers., White warm edge perimeter spacer with white warm edge integral spacers
Black warm edge perimeter spacer with black warm edge integral spacers., White warm edge perimeter spacer with white warm edge integral spacers
Internal glazing bars
Not required., 18 mm cove profile., 18 mm lambs tongue profile., 18 mm ovolo profile., 20 mm lambs tongue profile., 20 mm ovolo profile., 22 mm cove profile., 22 mm lambs tongue profile., 22 mm ovolo profile.
Not required., 18 mm cove profile., 18 mm lambs tongue profile., 18 mm ovolo profile., 20 mm lambs tongue profile., 20 mm ovolo profile., 22 mm cove profile., 22 mm lambs tongue profile., 22 mm ovolo profile.
External Glazing Bars
Not required., 9 mm antiqued lead., 12 mm antiqued lead., 18 mm chamfered putty bar., 20 mm chamfered., 22 mm chamfered putty bar.
Not required., 9 mm antiqued lead., 12 mm antiqued lead., 18 mm chamfered putty bar., 20 mm chamfered., 22 mm chamfered putty bar.
Thickness
4 mm (double glazed).
6.4 mm (layer one), 4 mm (layer two).
Spacer
16 mm.
16 mm.
Bottom rail
60 x 144 mm., 194 mm with 18 mm feature groove detail.
60 x 144 mm., 194 mm with 18 mm feature groove detail.
Midrail
60 x 100 mm.
60 x 100 mm.
Top rail
60 x 100 mm.
60 x 100 mm.
Transoms and mullions
56 x 94 mm.
56 x 94 mm.
Door panel
Not required., Insulated flat panels, steel inserts., Insulated raised and fielded panels, steel inserts., Insulated tongue and groove panels, steel inserts.
Not required., Insulated flat panels, steel inserts., Insulated raised and fielded panels, steel inserts., Insulated tongue and groove panels, steel inserts.
Type
68 x 94 mm (flush)., 68 x 144 mm., 80 x 94 mm., Mobility threshold.
68 x 94 mm (flush)., 68 x 144 mm., 80 x 94 mm., Mobility threshold.
Extension
Not required., 35 mm., 60 mm., 85 mm., 100 mm.
Not required., 35 mm., 60 mm., 85 mm., 100 mm.
Extension horns
-
-
Handle finish
Brass., Polished chrome., Satin chrome.
Brass., Polished chrome., Satin chrome.
Handle colour
-
-
Trickle vents
Not required., Concealed through the frame head with external head drip., Through the top rail of the door leaf with external canopy.
Not required., Concealed through the frame head with external head drip., Through the top rail of the door leaf with external canopy.
FrameSize
56 x 94 mm.
56 x 94 mm.
MoistureContent
12—19%.
12—19%.
Door locking
Winkhaus autoLock AV2+ multi-point locking system.
Winkhaus autoLock AV2+ multi-point locking system.
Air permeability
To BS EN 1026, Class 4.
To BS EN 1026, Class 4.
Watertightness
To BS EN 1027, Class 9A.
To BS EN 1027, Class 9A.
Resistance to wind load
To BS EN 12211, Class C3.
To BS EN 12211, Class C3.
Security level
To PAS 24, 2012.
To PAS 24, 2012.
Format
Single leaf, single action.
Single leaf, single action.
Sustainability data
Material
Wood, Glass
Wood, Glass
