Floor joint applications with flooring up to 9.5 mm-deep (carpet, wood or vinyl flooring). Not recommended for brittle finishes. Suitable for areas where light wheeled equipment is in use.

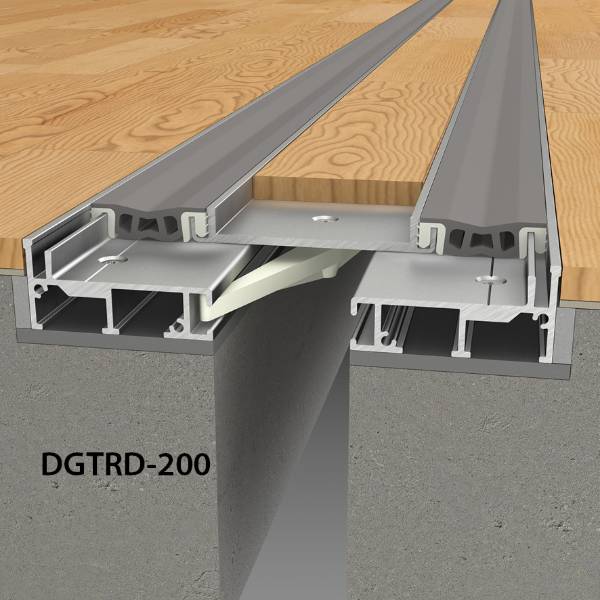

Flush floor, recess-mounted covers with a recessed aluminium centre plate to take up to 9.5 mm thick carpet, wood or vinyl flooring (not recommended for brittle finishes).

Features and benefits:

• Joint width: up to 110 mm.
• Horizontal movement: up to +38 mm.
• Vertical movement: up to ±3 mm.
• Lateral movement: up to ±8 mm.
• Load capability: 250 kg point load.
• Dual gasket for larger movement requirements.
• Easy to clean, ideal for interiors where hygiene is important.
• Suitable for areas where light wheeled equipment is in use.
• DGTRD(W) models can be fitted over a range of joint widths, whilst maintaining the same movement capability.
• GTRD(W) models require a consistent joint width.
• Fixing:
• Floor fixings (by others) to suit substrate at 450 mm centres and to achieve minimum 40 mm embedment.
• Wall fixings (by others) to suit substrate at 450 mm centres.
