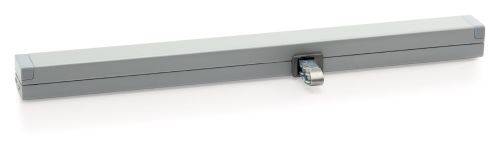

CDC Chain Actuator
Verified over a year ago
D+H UK
CDC 200/350
nbs-symbol
Add to spec
CDC Chain Actuator
Verified over a year ago
D+H UK
Select variant..
nbs-symbol
Add to spec
CDC Chain Actuator
Verified over a year ago
D+H UK
Select variant..
nbs-symbol
Add to spec
Summary
Chain actuator for electric opening and closing of windows in the facade and roof area. Quiet and versatile.
Color
White
-
-
Finish
Powder-coated
-
-
Material
Aluminium, Zinc
-
-
Shape
Rectangle
-
-
Specification
Standard
To BS EN 12101-2.
-
-
Stroke
350 mm.
-
-
Electrical supply
24 V d.c.
-
-
Finish
Powder-coated.
-
-
Accessories
Brackets., Cables.
-
-
Additional properties
ElectricActuatorType
CDC 200/350 drive.
-
-
Tensile force property
150 N.
-
-
Locking
1500 N.
-
-
Anticipated service life
> 10 000 double strokes.
-
-
Speed
Open running speed: 6.7 mm/s.
-
-
Ingress protection (IP) rating
50.
-
-
Fire resistance
B300 (30 min/ +300°C).
-
-
Surface
Powder coated white aluminium (~RAL 9006).
-
-
Connection
2.5 m cable.
-
-
Third-party certification
CE certified.
-
-
Pressure
200 N.
-
-
Input current
0.6 A.
-
-
Sustainability data
Country of product manufacture
Germany
-
-
