Fire Resistant Roller Shutter
Fire Resistant Roller Shutter
Fire Resistant Roller Shutter

Last verified by manufacturer over a year ago

Hart Door Systems Ltd

Last verified by manufacturer over a year ago

Hart Door Systems Ltd

Last verified by manufacturer over a year ago

Hart Door Systems Ltd
Summary

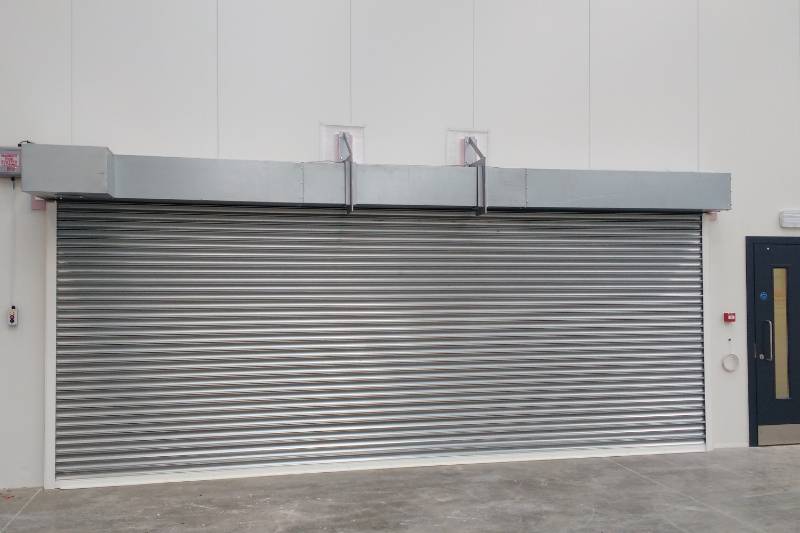

Fire resisting roller shutter. British manufactured LPCB fire rated roller shutter
-
-
Application

For internal, commercial applications.

-
-
Description

Fire rated roller shutters with 30 minutes up to four hours' fire resistance and tested to BS EN 1634-1.


Features and benefits:

  • Least cost option is that the door be activated by a sacrificial fusible link. This will activate the door independently when the heat around the link reaches approximately 72°C. It will not be triggered by smoke and will require replacement before the door can operate normally again. Must be supported by risk assessment to ensure compliance to BSEN 12453.
  • Alternatively a fire roller shutter will be part of an overall fire (and smoke) control system. The fire roller shutter motor comes complete with a 24V d.c. energized to hold actuator. When the actuator is de-energized it will release the drive brake and the door will close by controlled descent in a safe and controlled manner (fail-safe).
  • As an option the door will be supplied with a fire control panel which allows a volt-free signal to used to allow closure. The fire control panel also has the ability to hold open the shutter during power failure for up to 60 minutes via internal batteries and comes with audio/visual warnings.
  • During installation and commissioning the actuator must be energized to prevent the motor turning and the door closing. The fire shutter is reset by re-energizing the actuator and giving an open command.
  • A combined fusible-link and actuator option is also available including upgraded sophistication to suit client needs.
-
-
Color
Grey
-
-
Finish
Galvanized, Powder-coated, Plastisol
-
-
Material
Steel
-
-
Shape
Rectangle
-
-
WarrantyDescription
One year
-
-

Specification

Standard
To BS EN 1634-1.
-
-
Opening sizes
1750 x 2500 mm., 2500 x 2500 mm., 4000 x 2500 mm., 4500 x 2500 mm., 6250 x 2500 mm., 7000 x 2500 mm., 1750 x 4000 mm., 2500 x 4000 mm., 4000 x 4000 mm., 4500 x 4000 mm., 6250 x 4000 mm., 7000 x 4000 mm., 1750 x 7000 mm., 2500 x 7000 mm., 4000 x 7000 mm., 4500 x 7000 mm., 6250 x 7000 mm., 7000 x 7000 mm.
-
-
Format
Internal.
-
-
Arrangement
Vertical, fitted into reveal.
-
-
Performance
-
-
-
Fire performance
-
-
-
Fire resistance
30 minute.
-
-
Frame and guides
-
-
-
Material
Steel.
-
-
Perimeter seals or inserts
Fire and smoke seal.
-
-
Shutter curtain
-
-
-
Lath material
Galvanized steel.
-
-
Profile
Curved perforated.
-
-
Finish and colour
Galvanized., Powder-coated, colour., Plastisol, colour.
-
-

Sustainability data

Country of product manufacture
United Kingdom
-
-
Recyclability
-
-
-
