Summary
In-line port circulation pumps, suitable for heating, air conditioning, refrigeration and sanitary water systems.
-
-
Application
Suitable for heating, air conditioning, refrigeration and sanitary water systems.
- Operating range: Up to 210 m³/h with head up to 54.3 metres.
- Liquid temperature range: -10°C to +130°C.
- Pumped liquid characteristics: Clean, free from solids or abrasive substances, non-viscous, non-aggressive, non-crystallized and chemically neutral. Maximum glycol content of 30%.
-
-
Description

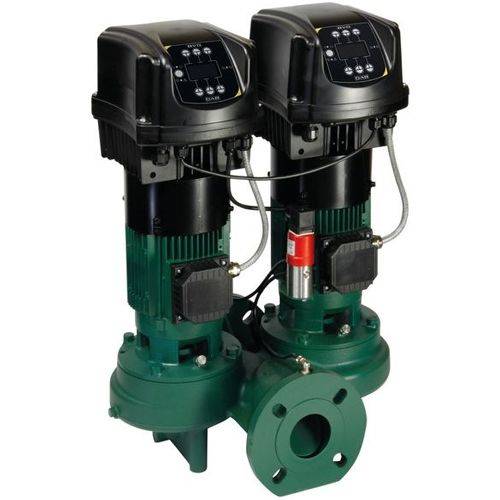

In-line port circulation pumps, suitable for heating, air conditioning, refrigeration and sanitary water systems.
Particularly versatile thanks to the use of the MCE/C inverter, offering performance features capable of automatically adapting to the different needs of the system, keeping a consistent differential pressure.
Features and benefits:
- PN16 flanged suction and delivery ports with threaded connectors for control gauges.
- Pump body, motor support and impeller made of cast iron.
- Air-cooled asynchronous motor with rotor mounted on ball bearings.
- AISI 304 stainless steel motor shaft.
- Maximum ambient temperature: +40°C (on request up to +50°C).
- Working pressure: 16 bar (1600 kPa).
- Protection level IP 55.
- Insulation class F.
- Remote control option (DConnect service; supplied separately, consult manufacturer for details.)
Single versions also available, specified separately.
-
-
Color
Green
-
-
Finish
Painted
-
-
Material
Cast iron, Stainless steel, EPDM, Other
-
-
Length
358 mm, 360 mm, 440 mm, 475 mm, 500 mm, 550 mm
-
-
Width
569 mm, 580 mm, 620 mm, 637 mm, 649 mm, 733 mm
-
-
Height
745 mm, 748 mm, 781.5 mm, 828 mm, 843 mm, 845.5 mm, 882.5 mm, 932 mm, 943.5 mm, 970.5 mm, 980 mm, 992 mm, 1018.5 mm, 1137 mm, 1139 mm, 1159 mm
-
-
Warranty description
Two year
-
-
SKU Code
60192043, 60192056, 60192044, 60192045, 60192055, 60167318, 60167319, 60167320, 60192049, 60192057, 60192050, 60192051, 60167321, 60167322, 60167323, 60192052, 60192053, 60167324, 60167325, 60167326
-
-
Specification
Classification data
General requirements
Pumps generally
-
-
Arrangement
Horizontal.
-
-
Duties
-
-
-
Operation
Duty.
-
-
Flow rate
Up to 114 m³/h.
-
-
Resistance
PN16.
-
-
Motor
-
-
-
Nominal voltage
Three phase 400 V a.c.
-
-
Frequency
50 Hz.
-
-
Motor and impeller speed (maximum)
2918 rpm.
-
-
Speed control
Fixed.
-
-
Casing material
Cast iron 250 UNI EN 185.
-
-
Additional properties
Dimensions
Overall: 500 x 637 x 882.5 mm.
Centre distance: 500 mm.
Centre distance: 500 mm.
-
-
Weight
183 kg.
-
-
Fluid temperature range
-15°C to +130°C.
-
-
Head
Up to 16 m.
-
-
Motor
Air-cooled two-pole asynchronous motor.
Protection class: IP55.
Insulation class: F.
4 kW/ 5.5 hp (nominal).
Protection class: IP55.
Insulation class: F.
4 kW/ 5.5 hp (nominal).
-
-
Connections
DN100.
-
-
Impeller
Cast iron 250 UNI EN 185.
-
-
Sustainability data
Contains Red List materials
No
-
-
Country of product manufacture
Italy
-
-
