Hinge applications include:

• Standard.
• Wide angled.
• Profile door.
• Blind corner.
• Aluminium frame.
• Thin door.
• Glass door.
• Frame door.
• Corner cabinet.
• Angled (standard, thin door, glass door, frame door).

Specifically:

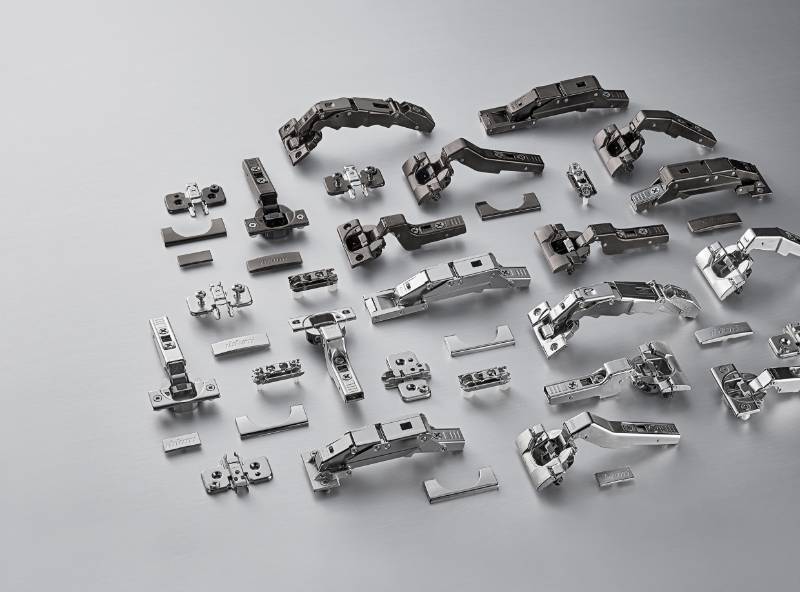

• CLIP top BLUMOTION hinge 110° - For furniture doors.
• CLIP top BLUMOTION special hinge 110° - With larger overlay capacity for thick cabinet sides.
• CLIP top BLUMOTION hinge 107° - For furniture doors with a thickness of 15 mm and above.
• CLIP top BLUMOTION hinge 155° - 0-protrusion for overlay application. For cabinets with inner pull-outs and special applications e.g. mitre or notched doors.
• CLIP top BLUMOTION profile/ thick door hinge (95°) - For thick doors and profile doors.
• CLIP top BLUMOTION hinge 125° - 0-protrusion for overlay application. For cabinets with inner pull-outs and special applications e.g. mitred doors.
• CLIP top BLUMOTION blind corner hinge inset application - For inset blind corner applications.
• CLIP top BLUMOTION blind corner hinge overlay application - For overlay blind corner applications.
• CLIP top BLUMOTION 95° aluminium frame door hinge - For narrow aluminium frame doors.
• CLIP top BLUMOTION hinge for thin doors 110° - For thin doors from 8 to 14 mm.
• CLIP top BLUMOTION CRISTALLO hinge 110° - For glass and mirror doors.
• CLIP top BLUMOTION CRISTALLO hinge - glass display cabinets 110° - For glass display cabinets.
• CLIP top BLUMOTION hinge 95° - For bathroom mirror cabinet with fronts that extend beyond the cabinet edge on all sides.
• CLIP top BLUMOTION angled hinge - For angled applications, including corner cabinets with set back fronts.

CLIP top BLUMOTION combines innovative technology, award-winning design and top quality motion within the smallest space. For soft-close, BLUMOTION has been seamlessly integrated into the boss with optional deactivation if necessary. The system offers a range of hinges that provide full functionality to suit most applications.

Features and benefits:

• BLUMOTION, a function for silent and effortless closing, is integrated into the boss.
• Adapts to the dynamics of every door.
• Uses innovative technology.
• High quality hinges.
• Award winning hinge system.
• Nickel plated and onyx black finish options.
• Harmonious gap layout due to convenient and infinitely variable 3-dimensional adjustment.
• Third location pin in hinge arm for stable hold of the hinge on the mounting plate.
• Shallow boss drilling depth.
• Consult manufacturer's literature for specific variant information.
