CS Pedisystems® Helix™ Interlocking Tile System
CS Pedisystems® Helix™ Interlocking Tile System

Verified 2 months ago

Construction Specialties (UK) Ltd

Pedisystems® Helix™ Z1

Verified 2 months ago

Construction Specialties (UK) Ltd

Pedisystems® Helix™ Z2

Summary
An interlocking tile system made from recyclable UV-resistant PVC/ NBR compound. Available with or without carpet inserts.
An interlocking tile system made from recyclable UV-resistant PVC/ NBR compound. Available with or without carpet inserts.
Application

Entrance matting, recommended for zone 2.

Entrance matting, recommended for zone 2.

Description

Helix™ Z1 / Z2 is an interlocking tile system made from recyclable UV-resistant PVC/ NBR compound. Available with or without carpet inserts.

Available in two design options:

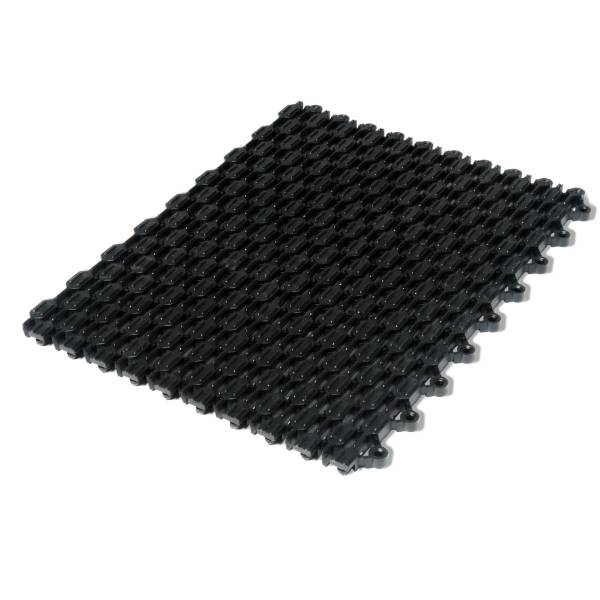

  • Helix Z1 is a 100% rubber/ vinyl tile, which will scrape off dirt, mud and initial moisture before entering the building.

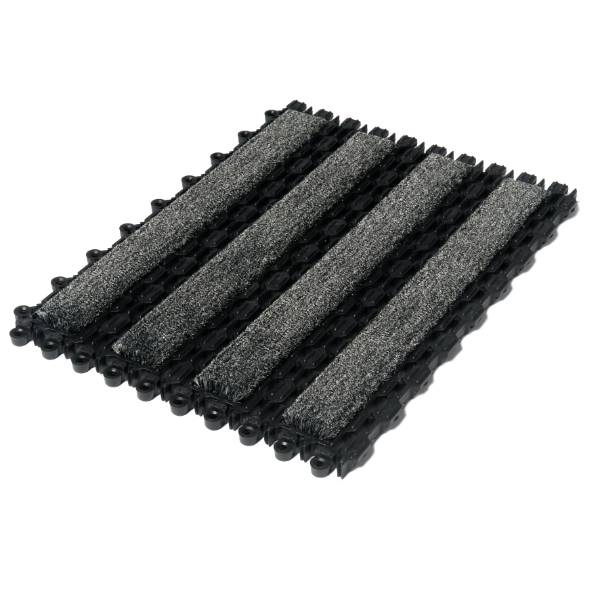

  • Helix Z2 incorporates carpet strips into the tile, which will absorb dirt and moisture immediately inside the building.

Helix™ is designed to collect maximum dirt and water and, when used in combination with CS Tetras™ Clean-Off Carpet Tiles, can collect up to 98% of dirt.

Features and benefits:

  • 305 x 229 mm interlocking tiles.
  • Hidden interlocking connectors provide a seamless appearance.
  • Suitable for recess or surface mounting.
  • Easy installation and replacement.
  • 11 mm-deep tiles fit in most matwells.
  • Inserts welded to tile for durability (Helix Z2)
  • 250 kg/wheel rolling load capability.
  • Absorption area: 55% (Helix Z2)
  • Scraping performance: medium (Helix Z1), high (Helix Z2)
  • Rolls up for easy matwell cleaning.

Helix™ Z1 / Z2 is an interlocking tile system made from recyclable UV-resistant PVC/ NBR compound. Available with or without carpet inserts.

Available in two design options:

  • Helix Z1 is a 100% rubber/ vinyl tile, which will scrape off dirt, mud and initial moisture before entering the building.
  • Helix Z2 incorporates carpet strips into the tile, which will absorb dirt and moisture immediately inside the building.

Helix™ is designed to collect maximum dirt and water and, when used in combination with CS Tetras™ Clean-Off Carpet Tiles, can collect up to 98% of dirt.

Features and benefits:

  • 305 x 229 mm interlocking tiles.
  • Hidden interlocking connectors provide a seamless appearance.
  • Suitable for recess or surface mounting.
  • Easy installation and replacement.
  • 11 mm-deep tiles fit in most matwells.
  • Inserts welded to tile for durability (Helix Z2)
  • 250 kg/wheel rolling load capability.
  • Absorption area: 55% (Helix Z2)
  • Scraping performance: medium (Helix Z1), high (Helix Z2)
  • Rolls up for easy matwell cleaning.
Color
Black, Brown, Grey, Blue
Black, Brown, Grey, Blue
Material
Rubber, Vinyl
Rubber, Vinyl
Shape
Rectangle
Rectangle
Length
305 mm
305 mm
Width
229 mm
229 mm
Height
11 mm
11 mm
Warranty description
Five year
Five year

Specification

Arrangement
13 mm aluminium frame for recess mounting., 17 mm tapered aluminium frame for recess mounting., 11 mm ramped aluminium frame for surface mounting., Not required (existing matwell).
13 mm aluminium frame for recess mounting., 17 mm tapered aluminium frame for recess mounting., 11 mm ramped aluminium frame for surface mounting., Not required (existing matwell).
Dimensions
305 x 229 x 11 mm.
305 x 229 x 11 mm.
Material
Rubber/ vinyl.
Rubber/ vinyl with interior grade carpet.
Pattern
Manufacturer's standard.
Manufacturer's standard.
Colour
Black., Grey.
Black tile with 'Wrought Iron' carpet., Black tile with 'Castle Grey' carpet., Black tile with 'Espresso' carpet., Black tile with 'Indigo' carpet., Grey tile with 'Wrought Iron' carpet., Grey tile with 'Castle Grey' carpet., Grey tile with 'Espresso' carpet., Grey tile with 'Indigo' carpet.

Additional properties

Frame
Mill finish., Black anodized., Bronze anodized., Gold anodized., Clear anodized.
Mill finish., Black anodized., Bronze anodized., Gold anodized., Clear anodized.
Rolling load
250 kg/wheel rolling load.
250 kg/wheel rolling load.

Sustainability data

Material
Rubber, Vinyl
Rubber, Vinyl
