Summary
12 mm-diameter thread scaffold fixings in a range of lengths.
12 mm-diameter thread scaffold fixings in a range of lengths.
Application
Scaffold fixings.
Scaffold fixings.
Description
12 mm-diameter thread scaffold fixings in a range of lengths.
12 mm-diameter thread scaffold fixings in a range of lengths.
Color
Silver
Silver
Material
Carbon steel
Carbon steel
Shape
Circle
Circle
Length
120 mm, 160 mm, 190 mm, 230 mm, 300 mm, 250 mm
120 mm, 160 mm, 190 mm, 230 mm, 300 mm, 250 mm
Width
12 mm
12 mm
SKU Code
85302B1212000, 85302B1216000, 85302B1219000, 85302B1223000, 85302B1230000, 85302B1235000, 85310B1212000, 85310B1216000, 85310B1220000
85302B1212000, 85302B1216000, 85302B1219000, 85302B1223000, 85302B1230000, 85302B1235000, 85310B1212000, 85310B1216000, 85310B1220000
Specification
Classification data
Property class
4.8 to ISO 898-1.
4.8 to ISO 898-1.
Finish
White zinc-plated finish ≥5 µm to ISO 4042.
White zinc-plated finish ≥5 µm to ISO 4042.
Size
-
-
Thread diameter
12 mm.
12 mm.
Length
120 mm (85302B1212000)., 160 mm (85302B1216000)., 190 mm (85302B1219000)., 230 mm (85302B1223000)., 300 mm (85302B1230000)., 350 mm (85302B1235000).
120 mm (85310B1212000)., 160 mm (85310B1216000)., 200 mm (85310B1220000).
Accessories
TUVL-P Nylon plug, 14 x 100 mm (60001014100)., Not required.
TUVL-P Nylon plug, 14 x 100 mm (60001014100)., Not required.
Additional properties
Head

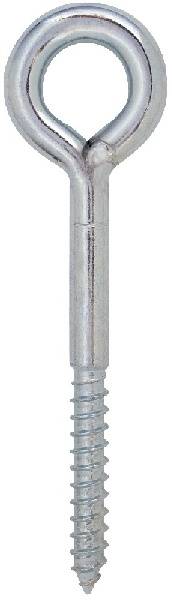

Eye hook, 23 mm inner diameter.

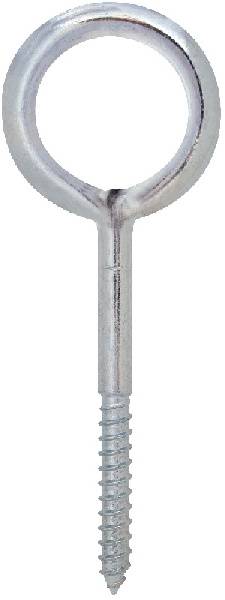

Eye hook, 50 mm inner diameter.
