KS1000 CR Insulated Roof Panel System, PIR
Verified over a year ago
Kingspan Insulated Panels
0.18 W/m²K thermal conductivity
nbs-symbol
Add to spec
Download BIM
KS1000 CR Insulated Roof Panel System, PIR
Verified over a year ago
Kingspan Insulated Panels
Select variant..
nbs-symbol
Add to spec
Download BIM
KS1000 CR Insulated Roof Panel System, PIR
Verified over a year ago
Kingspan Insulated Panels
Select variant..
nbs-symbol
Add to spec
Download BIM
Summary

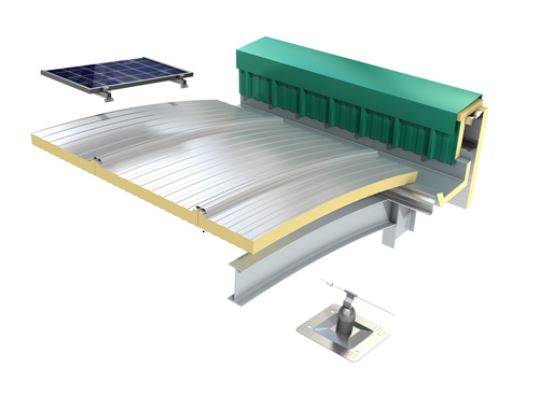

The curved roof panel system is a versatile, high performance, energy and cost efficient roofing solution for many building applications.
Digital objects
-
-
Shape
Rectangular
-
-
Material
Steel, Aluminium, PIR
-
-
WarrantyDescription
25/ 40 years
-
-
Size
14 500 x 1000 x 150 mm
-
-
Specification
Roofing panels
-
-
-
Panel type
ECOsafe and FIREsafe steel/PIR insulated sandwich panels, 0.18 W/m²K
-
-
Side lap stitching fasteners
Manufacturer's standard.
-
-
End lap stitching fasteners
38 mm-long tail stitching screws with 19 mm sealing washers.
-
-
Continuity thermal insulation
Not required., Profiled ridge filler.
-
-
Cavity barriers
Not required., Required.
-
-
Cavity closers
Not required., Required.
-
-
Fascia
-
-
-
Material
As roofing panel., As design.
-
-
Soffit
-
-
-
Gutters
-
-
-
Gutter types
Kingspan External Highline., Kingspan Insulated Membrane Lined.
-
-
System accessories
None., Kingspan Energy - solar photovoltaics.
-
-
Additional properties
Product Reference
KS1000 CR Roof Panel System, PIR
-
-
Design
-
-
-
Fabrications
Flashings., Specialist.
-
-
Rooflights
Kingspan Day-Lite Kapture.
-
-
Personal fall protection
Safepro 2., Safeside.
-
-
