Description

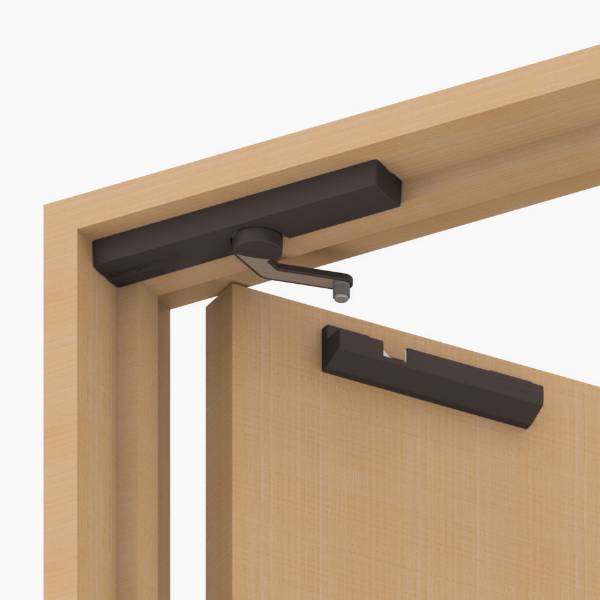

Sugatsune LDD door dampers deliver premium quality soft, silent close motion for interior doors. Fitted with the groundbreaking LAPCON rotary damper technology, LDD dampers ‘catch’ a door late in its arc to bring it to a controlled close. This avoids the need for the conventional closer arm usually found on interior door soft close mechanisms, making the LDD a much more discreet and tidy option.
Easy to install and adjustable once in position to give precision control, LDD dampers guarantee safe, no-slam closing for doors weighing up to 100kg.
Features and benefits:
- Soft-close function for interior doors.
- No closing arm for discreet appearance.
- Prevents slamming.
- Concealed or Surface Mount options.
- For doors in a wide range of sizes from 15 Kg to 100 Kg.
- Damper force adjustable post-installation.
LDD-V Concealed:
- Concealed type that is hidden from view when door is closed.
- Self and soft-closes within a 10° radius of closing. Closes gently, preventing slamming.
- Doors feel lighter to open compared to standard door closers.
- Closing speed adjustable post-installation.
- Counter plate has 3-way adjustment post-installation.
LDD-V100 Concealed for Heavy Doors:
- Unique door damper applicable to door weight up to 100 kg.
- Suitable for door weight 40–100 kg.
- Damper body is completely hidden when the door is closed.
- Damper and door pull-in functions work just before the door fully closes, preventing the door from slamming shut.
- Door can be opened more easily as compared with door closer.
- Damper force is adjustable.
- Counter plate is 3-way adjustable.
LDD-S Surface Mount:
- Surface mount that can be retrofitted onto current door installations.
- Easy to align to proper positioning, speeding up installation.
- Slim profile (body height only 16 mm) can handle doors up to 40 kg in weight.
- Self and soft-closes within a 15° radius of closing. Closes gently, preventing slamming.
- Doors feel lighter to open compared to standard door closers.
- Successfully passed 100,000 open/close cycles in private test.
- Counter plate position can be adjusted after installation.
- Damper force can be adjusted post-installation.
Sugatsune LDD door dampers deliver premium quality soft, silent close motion for interior doors. Fitted with the groundbreaking LAPCON rotary damper technology, LDD dampers ‘catch’ a door late in its arc to bring it to a controlled close. This avoids the need for the conventional closer arm usually found on interior door soft close mechanisms, making the LDD a much more discreet and tidy option.
Easy to install and adjustable once in position to give precision control, LDD dampers guarantee safe, no-slam closing for doors weighing up to 100kg.
Features and benefits:
- Soft-close function for interior doors.
- No closing arm for discreet appearance.
- Prevents slamming.
- Concealed or Surface Mount options.
- For doors in a wide range of sizes from 15 Kg to 100 Kg.
- Damper force adjustable post-installation.
LDD-V Concealed:
- Concealed type that is hidden from view when door is closed.
- Self and soft-closes within a 10° radius of closing. Closes gently, preventing slamming.
- Doors feel lighter to open compared to standard door closers.
- Closing speed adjustable post-installation.
- Counter plate has 3-way adjustment post-installation.
LDD-V100 Concealed for Heavy Doors:
- Unique door damper applicable to door weight up to 100 kg.
- Suitable for door weight 40–100 kg.
- Damper body is completely hidden when the door is closed.
- Damper and door pull-in functions work just before the door fully closes, preventing the door from slamming shut.
- Door can be opened more easily as compared with door closer.
- Damper force is adjustable.
- Counter plate is 3-way adjustable.
LDD-S Surface Mount:
- Surface mount that can be retrofitted onto current door installations.
- Easy to align to proper positioning, speeding up installation.
- Slim profile (body height only 16 mm) can handle doors up to 40 kg in weight.
- Self and soft-closes within a 15° radius of closing. Closes gently, preventing slamming.
- Doors feel lighter to open compared to standard door closers.
- Successfully passed 100,000 open/close cycles in private test.
- Counter plate position can be adjusted after installation.
- Damper force can be adjusted post-installation.
Sugatsune LDD door dampers deliver premium quality soft, silent close motion for interior doors. Fitted with the groundbreaking LAPCON rotary damper technology, LDD dampers ‘catch’ a door late in its arc to bring it to a controlled close. This avoids the need for the conventional closer arm usually found on interior door soft close mechanisms, making the LDD a much more discreet and tidy option.
Easy to install and adjustable once in position to give precision control, LDD dampers guarantee safe, no-slam closing for doors weighing up to 100kg.
Features and benefits:
- Soft-close function for interior doors.
- No closing arm for discreet appearance.
- Prevents slamming.
- Concealed or Surface Mount options.
- For doors in a wide range of sizes from 15 Kg to 100 Kg.
- Damper force adjustable post-installation.
LDD-V Concealed:
- Concealed type that is hidden from view when door is closed.
- Self and soft-closes within a 10° radius of closing. Closes gently, preventing slamming.
- Doors feel lighter to open compared to standard door closers.
- Closing speed adjustable post-installation.
- Counter plate has 3-way adjustment post-installation.
LDD-V100 Concealed for Heavy Doors:
- Unique door damper applicable to door weight up to 100 kg.
- Suitable for door weight 40–100 kg.
- Damper body is completely hidden when the door is closed.
- Damper and door pull-in functions work just before the door fully closes, preventing the door from slamming shut.
- Door can be opened more easily as compared with door closer.
- Damper force is adjustable.
- Counter plate is 3-way adjustable.
LDD-S Surface Mount:
- Surface mount that can be retrofitted onto current door installations.
- Easy to align to proper positioning, speeding up installation.
- Slim profile (body height only 16 mm) can handle doors up to 40 kg in weight.
- Self and soft-closes within a 15° radius of closing. Closes gently, preventing slamming.
- Doors feel lighter to open compared to standard door closers.
- Successfully passed 100,000 open/close cycles in private test.
- Counter plate position can be adjusted after installation.
- Damper force can be adjusted post-installation.
SKU Code
LDD-S, LDD-V, LDD-V100
LDD-S, LDD-V, LDD-V100
LDD-S, LDD-V, LDD-V100
Specification
Classification data
Form
Jamb mounted, concealed (left-handed)., Jamb mounted, concealed (right-handed).
Overhead, concealed (left-handed)., Overhead, concealed (right-handed).
Overhead, concealed (left-handed)., Overhead, concealed (right-handed).
Leaf
-
-
-
Width
900 mm width (maximum).
900 mm width (maximum).
900 mm width (maximum).
Thickness
33 mm (minimum).
33 mm (minimum).
40–60 mm.
Material and finish
Bodies: Steel; Arms: Plain stainless steel (SUS304).
Bodies: Steel; Arms: Polyacetal (POM).
Bodies: Steel; Arms: Zinc alloy (ZDC).
Colour
Dark brown (DBR)., Light brown (LBR)., Light grey (LGR)., White (WT).
Silver.
Dark brown (DBR)., Nickel (NI).
Additional properties
Maximum weight
40 kg.
40 kg.
100 kg.
Accessories
None., LDD-S-P spacer., Countersunk head tapping screw 3.5 x 30., Binding head tapping screw 4 x 16.
None., LDD-V-JIG adjustment jig., LDD-V-TMP template., Binding head tapping screw 4 x 45., Binding head tapping screw 3.5 x 20.
None., LDD-V-JIG adjustment jig., LDD-V-TMP template., Tapping screw 3.5 x 20.
Test results
Passed 100 000 open/close private cycle test.
Passed 100 000 open/close private cycle test.
Passed 100 000 open/close private cycle test.
Closer functions
Self-close/soft close within 10° radius of closing.
Self-close/soft close within 10° radius of closing.
Self-close/soft close within 10° radius of closing.
Casings
ABS.
-
Polyacetal (POM).
Sustainability data
Contains Red List materials
No
No
No
Country of material origin
Japan
Japan
Japan
Country of product manufacture
Japan
Japan
Japan
