Summary

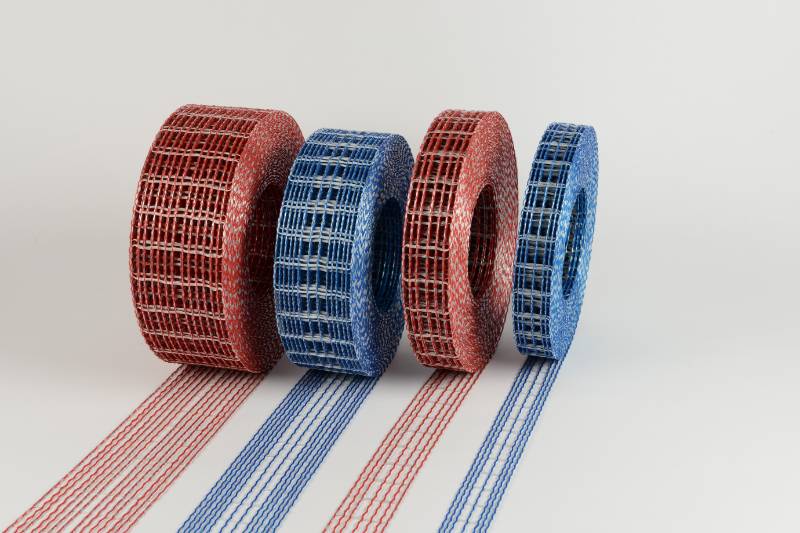

Masonry reinforcement on a roll.
-
-
Application
- Murfor® Compact I-50 and Murfor® Compact I-100 are suitable for masonry (clay bricks, concrete blocks) exposed to a dry environment (exposure class MX1, compliant with Eurocode 6/EN 845-3).
- Murfor® Compact E-35 and Murfor® Compact E-70 are suitable for exterior masonry (exposure class MX2, MX3 and MX4, compliant with Eurocode 6/EN 845-3).
- For all mortar joints with thicknesses between 3 mm and 12 mm.
-
-
Description
Murfor® Compact is designed for structural reinforced masonry applications and consists of steel cord mesh and interwoven fiberglass roving. The performance is comparable to conventional welded bed joint reinforcement for structural use in EN 845-3.
Murfor® Compact is available in different sizes to accommodate any wall width and in steel or stainless steel to meet specific exposure classes.
Features and benefits:
- Efficient and durable crack control and structural applications.
- High-strength steel.
- Easy to stack and transport.
- Accommodates any wall width.
- Fast and simple installation.
- CE marked.
- UKCA marked.
- EPD certified.
-
-
Color
Red, Blue
-
-
Material
Steel, Stainless steel
-
-
Shape
Other
-
-
Length
30000 mm
-
-
Width
35 mm, 50 mm, 70 mm, 100 mm
-
-
Height
1.75 mm
-
-
Specification
Classification data
Standard
To BS EN 845-3.
-
-
Configuration of bed joint reinforcement
Woven steel wire and fibreglass.
-
-
Dimensions
-
-
-
Wire size
1.75 mm.
-
-
Ladder or truss width (overall)
50 mm.
-
-
Corrosion protection
To BS EN 845-3, material coating reference R20.
-
-
Sustainability data
Contains Red List materials
No
-
-
Country of product manufacture
Slovakia
-
-
Carbon dioxide equivalent
Normalized unit
(kg CO₂ eq/kg) A1–A3 ('Production stage') :
-
A1–A3 ('Production stage') :
-
A1–A3 ('Production stage') :
-
Declared unit
Self-declared
A1–A3 ('Production stage') :
0.14
Self-declared
A1–A3 ('Production stage') :
-
Self-declared
A1–A3 ('Production stage') :
-
Recyclability
95%
-
-
