Summary
Adhesive-fixed acoustic panel system consisting of tiles with three different thicknesses.
Adhesive-fixed acoustic panel system consisting of tiles with three different thicknesses.
Application
Can be installed on ceilings and walls. Suitable for healthcare, education and office applications.
Can be installed on ceilings and walls. Suitable for healthcare, education and office applications.
Description
Ecophon Focus™ Levels is a creative system with different thicknesses, sizes and colours. The system is glued edge-to-edge directly to an existing soffit, ceiling or wall.
Features and benefits:
- Absorption Class B.
- Painted edges.
- Different panel thicknesses and sizes create distinctive patterns.
Ecophon Focus™ Levels is a creative system with different thicknesses, sizes and colours. The system is glued edge-to-edge directly to an existing soffit, ceiling or wall.
Features and benefits:
- Absorption Class B.
- Painted edges.
- Different panel thicknesses and sizes create distinctive patterns.
Product certifications
Color
White, Blue, Grey, Orange, Pink, Green, Yellow, Red, Brown, Black, Beige
White, Blue, Grey, Orange, Pink, Green, Yellow, Red, Brown, Black, Beige
Finish
Coated
Coated
Material
Glass mineral wool
Glass mineral wool
Shape
Square, Rectangle
Square, Rectangle
Length
600 mm, 1200 mm
600 mm, 1200 mm
Width
600 mm, 300 mm
600 mm, 300 mm
Height
20 mm, 30 mm, 40 mm
20 mm, 30 mm, 40 mm
SKU Code
M488
M489
Specification
Standard
CE marked according to the European harmonized standard EN 13964:2014.
CE marked according to the European harmonized standard EN 13964:2014.
Form
Panel.
Panel.
Rigidity
Rigid.
Rigid.
Application
Ceiling mounting.
Wall mounting.
Material
Glass wool.
Glass wool.
Acoustic performance
-
-
Purpose
Absorber.
Absorber.
Sound absorption
To EN ISO 11654. 20 mm system: Class C; 30 mm system: Class B; 40 mm system: Class A.
To EN ISO 11654. 20 mm system: Class C; 30 mm system: Class B; 40 mm system: Class A.
Fire performance
-
-
Reaction to fire
To EN 13501-1, A2-s1,d0.
To EN 13501-1, A2-s1,d0.
VOC emissions
Eurofins Indoor Air Comfort®: IAC Gold.
French VOC: A+.
Eurofins Indoor Air Comfort®: IAC Gold.
French VOC: A+.
Dimensions
-
-
Size (length x width)
600 x 600 mm., 1200 x 300 mm., 1200 x 600 mm.
600 x 600 mm., 1200 x 300 mm., 1200 x 600 mm.
Thickness (overall)
20 mm., 30 mm., 40 mm.
20 mm., 30 mm., 40 mm.
Profile
Linear.
Linear.
Edges
Square.
Square.
Finish
Akutex™ FT.
Akutex™ FT.
Colour
White Frost., Moonlight Sky., Highland Fog., Sunset Heat., Ocean Storm., Morning Drizzle., Peach Rose., Goji Berry., Scallop Shells., Fresh Clover., Sage Garden., Eucalyptus Leaf., Summer Forrest., Golden Field., Ruby Rock., Wet Sand., Silent Steam., Dark Diamond., Cloudy Day., Volcanic Ash., Silver Stone., Silk Slate.
White Frost., Moonlight Sky., Highland Fog., Sunset Heat., Ocean Storm., Morning Drizzle., Peach Rose., Goji Berry., Scallop Shells., Fresh Clover., Sage Garden., Eucalyptus Leaf., Summer Forrest., Golden Field., Ruby Rock., Wet Sand., Silent Steam., Dark Diamond., Cloudy Day., Volcanic Ash., Silver Stone., Silk Slate.
Additional properties
Installation

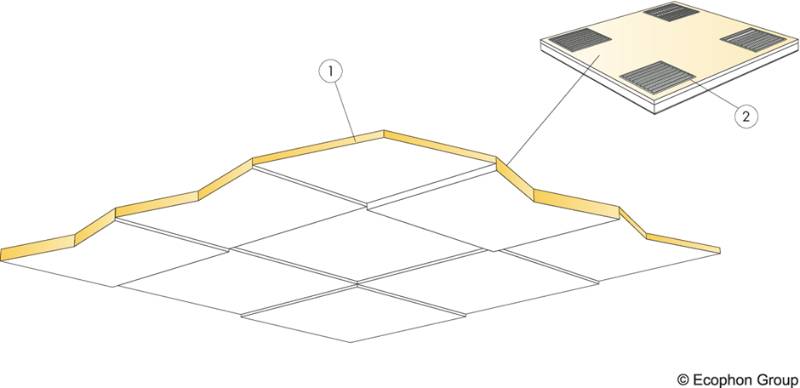

M488 - Glued installation.

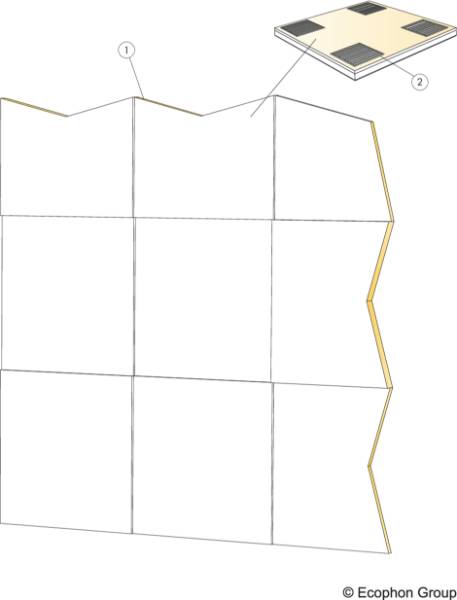

M489 - Glued installation.
Weight
Maximum 4.4 kg/m².
Maximum 4.4 kg/m².
Constant humidity resistance
To EN 13964:2014, Class C, relative humidity 95% and 30°C.
To EN 13964:2014, Class C, relative humidity 95% and 30°C.
Sustainability data
Contains Red List materials
No
No
Country of material origin
Sweden
Sweden
Country of product manufacture
Sweden
Sweden
Material
Glass mineral wool
Glass mineral wool
Recyclability
Fully recyclable
Fully recyclable
Recycled content
58 %
58 %
Expected Life
50 year
50 year
