Summary
Fire rated steel riser doorsets (FD60/120/240(s)).
Fire rated steel riser doorsets (FD60/120/240(s)).
Application
Suitable for commercial applications.
Suitable for commercial applications.
Description

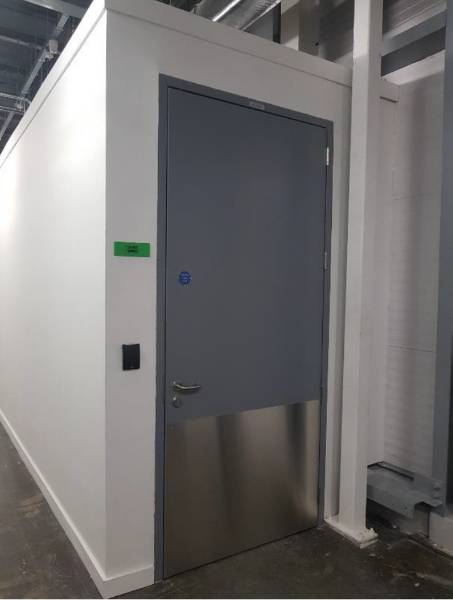

Fire-resisting metal doorsets for service cupboards, service risers and other non-personnel secondary rooms. The steel riser door provides the containment and fire performance required by these areas of the building.
Features and benefits:
- Provides fire resistance of up to 240 minutes.
- Double and single doorsets are available.
- Available with a range of frame and louvre options.
Fire-resisting metal doorsets for service cupboards, service risers and other non-personnel secondary rooms. The steel riser door provides the containment and fire performance required by these areas of the building.
Features and benefits:
- Provides fire resistance of up to 240 minutes.
- Double and single doorsets are available.
- Available with a range of frame and louvre options.
Product certifications
Digital objects
Finish
Powder-coated
Powder-coated
Material
Steel
Steel
Shape
Rectangle
Rectangle
Length
Bespoke
Bespoke
Width
Bespoke
Bespoke
Height
Bespoke
Bespoke
WarrantyDescription
One year
One year
Specification
Configuration
Double leaf, left hand active., Double leaf, right hand active.
Single leaf, left hand opening., Single leaf, right handed opening.
Performance
-
-
Fire resistance
-
-
Integrity
FD30., FD60., FD120., FD240., E30., E60., E120., E240.
FD30., FD60., FD120., FD240., E30., E60., E120., E240.
Smoke leakage
Sa.
Sa.
Acoustic performance
Sound reduction to Rw 32 dB.
Sound reduction to Rw 32 dB.
Frame
-
-
Material
1.2 mm galvanized steel.
1.2 mm galvanized steel.
Perimeter seals or inserts
Teardrop self adhesive silicon cold smoke seal pre-fitted to the internal rebate of the frame to BS 476-31.1 and EN 1634-3.
Teardrop self adhesive silicon cold smoke seal pre-fitted to the internal rebate of the frame to BS 476-31.1 and EN 1634-3.
Finish
-
-
Coating
Powder coated.
Powder coated.
Door leaf
-
-
Thickness
44 mm.
44 mm.
Panel details
Aluminium honeycomb core.
Aluminium honeycomb core.
Material
1.2 mm galvanized steel interlocked to the back face and fixed on the top and bottom edge of the door blade.
1.2 mm galvanized steel interlocked to the back face and fixed on the top and bottom edge of the door blade.
Finish
-
-
Coating
Powder coated.
Powder coated.
Film thickness (minimum)
40 micrometres.
40 micrometres.
Hardware
Satin stainless steel, grade 14 hinges, concealed bearing type, Set 1 - Pull handles., Set 2 - Lever handles.
Satin stainless steel, grade 14 hinges, concealed bearing type, Set 1 - Pull handles., Set 2 - Lever handles.
Additional properties
Door frame profile
Fixed frame., Clamp frame., Architrave frame.
Fixed frame., Clamp frame., Architrave frame.
Meeting stiles
Single integral astragal to active leaf only., Double integral astragal on both active and static leaves.
-
Louvres
Fireblock 240 minute fire rated louvre (457 x 457 mm)., Fireblock 240 minute fire rated louvre (457 x 1546 mm).
Fireblock 240 minute fire rated louvre (457 x 457 mm)., Fireblock 240 minute fire rated louvre (457 x 1546 mm).
Sustainability data
Country of product manufacture
United Kingdom
United Kingdom
Recyclability
100
100
Recycled content
35 %
35 %
