Summary

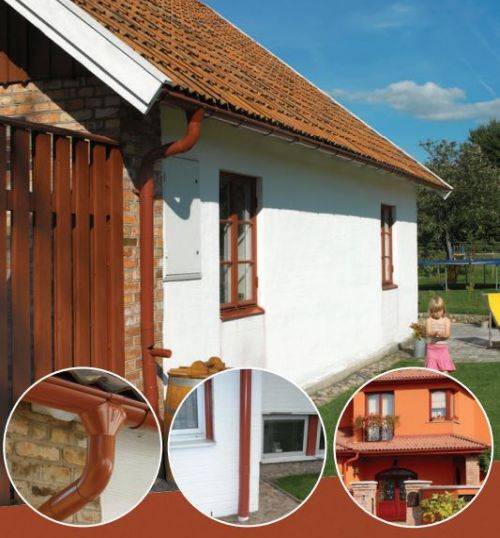

Rainline rainwater downpipes and fittings finished in tile red (RAL 8004).
-
-
Application
For use in varying applications, including:
- Large or small roof areas.
- Classic or contemporary buildings.
- Domestic or commercial use.
When selecting gutter and pipe sizes for a rainwater system, the size of the roof and the downpipes (specified separately) position should be considered. This helps ensure that typical rainfall will not cause system overflow. Consult manufacturer for further details.
-
-
Description
Rainline rainwater downpipes and fittings finished in tile red (RAL 8004).
Features and benefits:
- Low carbon footprint and low overall environmental impact.
- Durable and flexible.
- Manufactured from 30% recycled steel, which is lighter than cast iron, easier to handle than aluminium and offers minimal thermal movement compared to plastic.
- Minimal maintenance required.
- Highly resistant to vandal attack; further reinforcement can be added to the bottom of 2 m pipes if required.
- UV stable.
- Available in four sizes, three lengths, and a range of colour options. Consult manufacturer's literature for details.
- Quick and easy to install.
- Supplied with a 15-year warranty.
- Manufactured in accordance with BS EN 12056-3: 2000.
-
-
Color
Red
-
-
Finish
Gloss
-
-
Material
Steel
-
-
Shape
Circle
-
-
Length
3000 mm
-
-
Warranty description
15 year
-
-
Specification
Classification data
Material
Steel.
-
-
Section
Round.
-
-
Size (nominal)
75 x 1000 mm., 75 x 2500 mm., 75 x 3000 mm.
-
-
Finish and colour
-
-
-
Finish
Painted, RAL gloss finish.
-
-
Colour
Tile red.
-
-
Integral accessories
Selection of brackets, sliding pipes, diverters, hoppers, shoes, connectors, branches, access pipes, offsets and intermediate pipes are available dependent on size.
-
-
Additional properties
Type
75 mm downpipe, 1 m length (SROR175TR)., 75 mm downpipe, 2.5 m length (SROR2575TR)., 75 mm downpipe, 3 m length (SROR375TR).
-
-
Bends
BK 45° conical pipe bend, 75 mm (BK4575TR)., BK 70° conical pipe bend, 75 mm (BK7075TR)., BM 45° pipe bend with socket, 75 mm (BM4575TR)., BM 70° pipe bend with socket, 75 mm (BM7075TR)., BM 85° pipe bend with socket, 75 mm (BM8575TR).
-
-
Intermediate pipes
75 mm MST intermediate pipe, 0.5 m (MST0575TR)., 75 mm MST intermediate pipe, 1 m (MST175TR)., As drawing., Contractor's choice.
-
-
Offsets
SOKN one-piece offset, 75 mm (SOKN75TR)., As drawing., Contractor's choice.
-
-
Access pipes
75 mm MSTRA rod access pipe, 1 m (MSTRA75TR)., As drawing., Contractor's choice.
-
-
Branches
GROR pipe branch, 75 mm (GROR75TR)., As drawing., Contractor's choice.
-
-
Connectors
SRORM pipe connector, 75 mm (SRORM75TR)., As drawing., Contractor's choice.
-
-
Shoes
BUTK drain shoe, 75 mm (BUTK75TR)., UTK pipe shoe, 75 mm (UTK75TR)., As drawing., Contractor's choice.
-
-
Hoppers
VATKL large water hopper, 75 mm (VATKL75TR)., VATKR regular water hopper, 75 mm (VATKR75TR)., As drawing., Contractor's choice.
-
-
Diverters
FUTK adjustable diverter, 75 mm (FUTK75TR)., As drawing., Contractor's choice.
-
-
Sliding pipe
PRT sliding pipe, 75 mm (PRT75TR)., As drawing., Contractor's choice.
-
-
Brackets
SST spike for pipe bracket, 125 mm (SST125)., SST spike for pipe bracket, 175 mm (SST175)., SST spike for pipe bracket, 250 mm (SST250)., SST spike for pipe bracket, 300 mm (SST300)., SSVU down pipe bracket, 75 mm (SSVU75TR)., As drawing., Contractor's choice.
-
-
Hose connector
As drawing., Contractor's choice.
-
-
Vandal resistant fittings
Not required., VSLS reinforced leaf trap, 102 mm (VSLS102TR)., VSLS09 reinforced pipe with leaf trap, 0.85 m, 102 mm (VSLS09102TR)., VSLS2 reinforced pipe with leaf trap, 2 m, 102 mm (VSLS2102TR)., VSLST2 reinforced pipe with raised leaf trap, 2 m, 102 mm (VSLST2102TR)., VUTK09 reinforced pipe with shoe, 0.85 m, 102 mm (VUTK09102TR)., VUTK2 reinforced pipe with shoe 2 m, 102 mm (VUTK2102TR).
-
-
Sustainability data
Contains Red List materials
No
-
-
Country of material origin
Sweden
-
-
Country of product manufacture
Sweden
-
-
Recyclability
Fully recycleable
-
-
Recycled content
30 %
-
-
