Summary
Single layer warm roof covering system.
Single layer warm roof covering system.
Application
To be used in the waterproofing of roofs.
Installation: sheets of ALKORPLAN A can be joined by either hot air welding, by solvent welding, or by sealing with ALKORPLUS aluminium tape with a strip of ALKORPLAN 35170 membrane welded over the joint.
To be used in the waterproofing of roofs.
Installation: sheets of ALKORPLAN A can be joined by either hot air welding, by solvent welding, or by sealing with ALKORPLUS aluminium tape with a strip of ALKORPLAN 35170 membrane welded over the joint.
Description

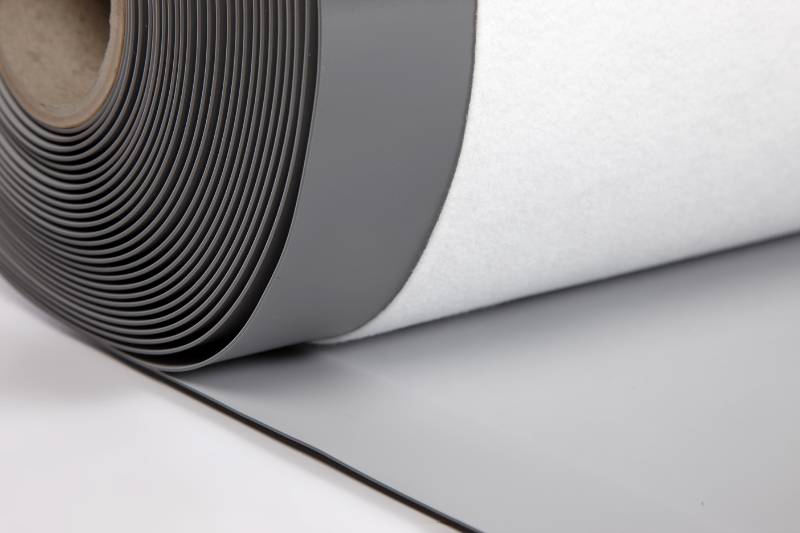

A light grey, calendered, flexible PVC membrane with a fleece backing for use as a waterproof membrane within partially or fully bonded single-ply roofing applications. It is particularly suitable for covering existing bituminous roof finishes.
Features and benefits:
- Adhered membrane.
- UV resistant.
- Weather resistant.
- CE Marked.
- Variety of warranties available (consult manufacturer).
- Single ply membrane.
- ALKORPLAN A is designed to be UV and weather resistant with high moisture vapour permeability, and high resistance to bacteria and root penetration.
A light grey, calendered, flexible PVC membrane with a fleece backing for use as a waterproof membrane within partially or fully bonded single-ply roofing applications. It is particularly suitable for covering existing bituminous roof finishes.
Features and benefits:
- Adhered membrane.
- UV resistant.
- Weather resistant.
- CE Marked.
- Variety of warranties available (consult manufacturer).
- Single ply membrane.
- ALKORPLAN A is designed to be UV and weather resistant with high moisture vapour permeability, and high resistance to bacteria and root penetration.
Product certifications
Digital objects
Color
White, Grey
White, Grey
Finish
Matt
Matt
Material
Fleece, Polyvinyl chloride (PVC)
Fleece, Polyvinyl chloride (PVC)
Shape
Rectangle
Rectangle
Length
15000 mm
15000 mm
Width
2100 mm
2100 mm
WarrantyDescription
Ten year, 15 year, 20 year
Ten year, 15 year, 20 year
Specification
Classification data
Material
Polyvinyl chloride (PVC).
Polyvinyl chloride (PVC).
Integral backing fleece
Required.
Required.
Performance characteristics
-
-
Watertightness
Pass.
Pass.
Tensile properties
To EN 12311-2 (A), ≥850 N/50 mm.
To EN 12311-2 (A), ≥825 N/50 mm.
Tear resistance
To EN 12310-2, ≥350 N.
To EN 12310-2, ≥325 N.
Third-party certification
British Board of Agrément (BBA) certificate.
British Board of Agrément (BBA) certificate.
Width (minimum)
2100 mm.
2100 mm.
Colour
Mid grey., Light grey., Dark grey., Special order., Lead Grey., Charcoal., ALKORBRIGHT.
Mid grey., Light grey., Dark grey., Special order., Lead Grey., Charcoal., ALKORBRIGHT.
Accessories
None., ALKORPLAN® 35X71 unreinforced detailing membrane., ALKORPLAN® 81038 seam sealer., ALKORPLAN® 81080/ 81061/ 81062 corners., ALKORPLAN® 81088 outlets., ALKORPLAN® 81170/ 81171 Metalsheet., ALKORPLUS® 81068 one component polyurethane glue.
None., ALKORPLAN® 35X71 unreinforced detailing membrane., ALKORPLAN® 81038 seam sealer., ALKORPLAN® 81080/ 81061/ 81062 corners., ALKORPLAN® 81088 outlets., ALKORPLAN® 81170/ 81171 Metalsheet., ALKORPLUS® 81068 one component polyurethane glue.
Additional properties
Roll weight
71 kg.
57 kg.
Standard
Conforms to UEAtc guidelines.
Conforms to UEAtc guidelines.
Performance characteristics
-
-
Elongation at break
TO EN 12311-2 (B), ≥65%.
To EN 12311-2 (B), ≥50%.
Dimensional stability
To EN 1107-2, ≤0.5%.
To EN 1107-2, ≤0.5%.
Vapour diffusion
To EN 1931, ≥20μ.
To EN 1931, ≥20μ.
Overall thickness
3.5 mm.
3.2 mm.
Weight
2.25 kg/m².
1.86 kg/m².
Sustainability data
Country of material origin
Spain
Spain
Recyclability
100%
100%
