Easyflush Valves with Infrared Sensor Walkaway (Cistern Flushing) Four Variations
Easyflush Valves with Infrared Sensor Walkaway (Cistern Flushing) Four Variations
Easyflush Valves with Infrared Sensor Walkaway (Cistern Flushing) Four Variations

Last verified by manufacturer over a year ago

Cistermiser Ltd

Last verified by manufacturer over a year ago

Cistermiser Ltd

Last verified by manufacturer over a year ago

Cistermiser Ltd
Summary
Hands-free and water-conserving toilet cistern flush and fill valve.
-
-
Application

Suitable for use with concealed cisterns.

-
-
Description

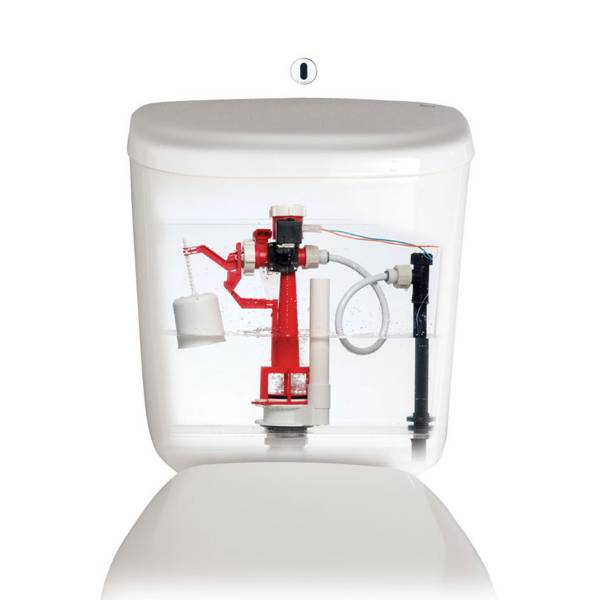

Features a hands-free and water-conserving toilet cistern flush and fill valve which is two interlinked valves in one: a lift/ drop valve which empties the cistern and a delayed action float valve which controls refilling. It also includes an integral overflow pipe to prevent flooding. The compact single-piece unit is located over the outlet by a bayonet-type locking device which simplifies installation. The occupancy-sensing infrared sensors meet the Disability Discrimination Act (DDA) requirements and are Part M compliant.


Features and benefits:

  • Infrared sensor-operated water closet (WC) cistern flush and fill valve.
  • User-configurable to minimise water usage and maximise water savings.
  • No-touch means hygienic, with no cross-contamination.
  • Installer programmable flush volumes for improved water economy, with 12-hour hygiene flush cycle and dual flush options.
  • Flush (outlet) and delayed-action Fill (inlet) valves combined in one unit.
  • Prevents excessive water consumption caused by both inlet and outlet being open simultaneously and resultant potential continuous running.
  • Available in passive (Walkaway) or active (Wave) or operational modes.
  • Chrome or brushed Chrome finish options.
  • Outlet size 1 ½” or 2”.
  • BREEAM Wat 01 compatible product.
  • Ensures compliance with the Water Regulations.


How the product works:

  • Electronic water closet (WC) drop valve which uses an occupancy-sensing infrared sensor to activate concealed cistern toilet flushing.
  • The product comes with dual flush factory programmed and is normally activated by the user standing up or leaving the cubicle.
  • A part flush will be delivered if the user departs from the cubicle within 40 seconds and a full flush will be delivered if the user departs after 40 seconds.
  • Can also be activated by the user bringing their hand toward the sensor.
  • Is ingeniously designed to use low power consumption, as the product uses the supply water pressure to lift the drop valve plunger and activate the flush. This ensures that when in use it delivers a very energy efficient solution, harvesting energy from the water.
  • Occupancy-sensing infrared sensors should be wall-fitted directly above the centre line.
-
-
Color
Silver
-
-
Finish
Brushed
-
-
Warranty description
One year
-
-
Size
212 x 283 x 93 mm, 48 x 48 x 27 mm
-
-
SKU Code
EF/WALK, EF/2”WALK, EF/WALK-BRUSH, EF/2”WALK-BRUSH
-
-

Specification

Classification data
Form
Exposed.
-
-
Materials
-
-
-
Finish and colour
Chrome, silver.
-
-
Operation
No touch walkaway sensor.
-
-

Additional properties

Outlet size
1 ½” in.
-
-
Power supply
Batteries., Mains supply.
-
-
Pipe sizes
44 mm., 50 mm.
-
-
Pressure
0.5 bar.
-
-
Protection class
Class 4, type DC.
-
-
Sensor
65 cm.
-
-
Filling
40 seconds and 65 seconds.
-
-
FlushingRate
2 seconds and 6 seconds.
-
-
Load
7.5 W 1.25 A (6 V DC).
-
-
TemperatureRange
0—40 °C.
-
-
Classification
Degree 1.
-
-
Ingress protection
IP65.
-
-
