Summary
Sound-absorbing ceiling with an exposed grid system, and the tiles are fully encapsulated in a smooth high-performance film. For use in demanding environments and where daily washing is required.
Sound-absorbing ceiling with an exposed grid system, and the tiles are fully encapsulated in a smooth high-performance film. For use in demanding environments and where daily washing is required.
Application
For use in demanding environments. Examples of applications: areas with constantly high humidity and risk for corrosion; dish rooms; and the fish industry.
For use in demanding environments. Examples of applications: areas with constantly high humidity and risk for corrosion; dish rooms; and the fish industry.
Description

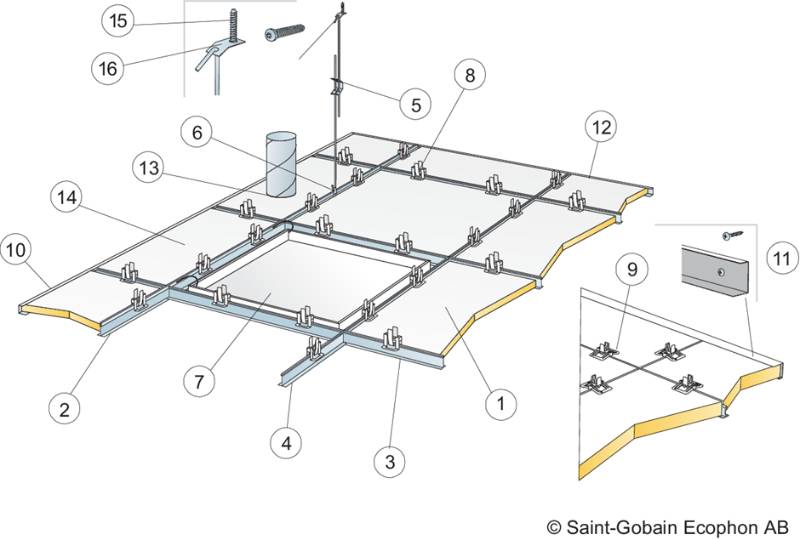

Ecophon Hygiene Advance A C4 is a unique, wall-to-wall, sound-absorbing ceiling system for use in demanding environments. All the suspension components, made of special treated steel, can endure daily wet cleaning with strong detergents and disinfectants. Examples of applications: areas with constantly high humidity and risk for corrosion; dish rooms; and the fish industry. The system is classified B1 and B5 for zone 4 according to standard NF S 90-351, and clean room-classified according to ISO 4.
The system consists of Ecophon Hygiene Advance A tiles, which have a core of high-density glass wool, fully encapsulated in a smooth high-performance film that is impervious to particles and water. The film is also dirt-repellent and resistant to most chemicals. The supporting structure is a corrosion-protected, exposed Connect T24 C4 grid of specially treated steel, with a high corrosion resistance.
The weight of the system is approximately 3 kg/m² (20 mm) and 4.5 kg/m² (40 mm).
Features and benefits:
- The tiles should be secured to the grid with Connect Hygiene clips, in order to withstand pressure during cleaning and to minimize dirt traps.
- For access to the plenum, a special Connect Democlip is used, together with an Ecophon Hygiene Advance A tile in 20 mm thickness.
- The Ecophon Hygiene Advance A C4 is a technical ceiling system, which might have aesthetic variations that will not affect the functionality of the system.

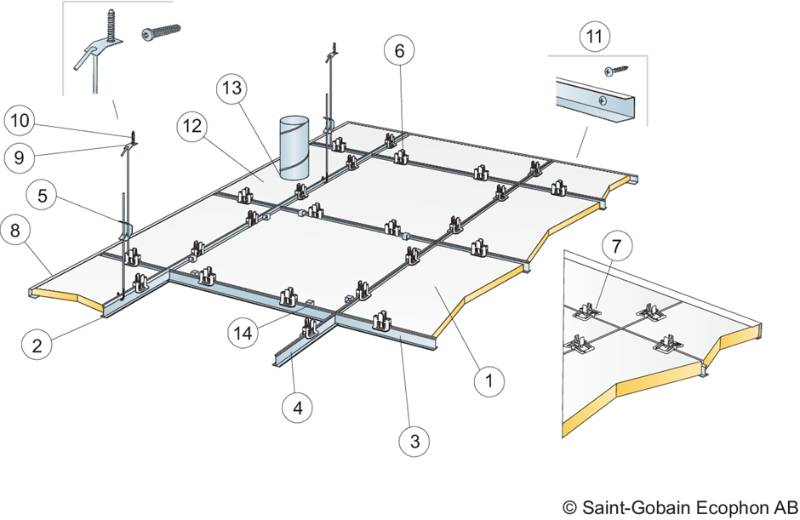

- Hygiene Advance A can also be installed with the C3 grid system, when the environment demands a system with a lower corrosion resistance.
- There is a special Hygiene Advance Technical tile which should be used for penetrations – consult manufacturer for details.
Ecophon Hygiene Advance A C4 is a unique, wall-to-wall, sound-absorbing ceiling system for use in demanding environments. All the suspension components, made of special treated steel, can endure daily wet cleaning with strong detergents and disinfectants. Examples of applications: areas with constantly high humidity and risk for corrosion; dish rooms; and the fish industry. The system is classified B1 and B5 for zone 4 according to standard NF S 90-351, and clean room-classified according to ISO 4.
The system consists of Ecophon Hygiene Advance A tiles, which have a core of high-density glass wool, fully encapsulated in a smooth high-performance film that is impervious to particles and water. The film is also dirt-repellent and resistant to most chemicals. The supporting structure is a corrosion-protected, exposed Connect T24 C4 grid of specially treated steel, with a high corrosion resistance.
The weight of the system is approximately 3 kg/m² (20 mm) and 4.5 kg/m² (40 mm).
Features and benefits:
- The tiles should be secured to the grid with Connect Hygiene clips, in order to withstand pressure during cleaning and to minimize dirt traps.
- For access to the plenum, a special Connect Democlip is used, together with an Ecophon Hygiene Advance A tile in 20 mm thickness.
- The Ecophon Hygiene Advance A C4 is a technical ceiling system, which might have aesthetic variations that will not affect the functionality of the system.
- Hygiene Advance A can also be installed with the C3 grid system, when the environment demands a system with a lower corrosion resistance.
- There is a special Hygiene Advance Technical tile which should be used for penetrations – consult manufacturer for details.
Product certifications
Digital objects
Color
White
White
Finish
Smooth
Smooth
Material
High-density glass wool
High-density glass wool
Shape
Square, Rectangle
Square, Rectangle
Length
600 mm, 1200 mm
600 mm, 1200 mm
Width
600 mm
600 mm
Height
20 mm, 40 mm
20 mm, 40 mm
Warranty description
Ten year, 50 year
Ten year, 50 year
SKU Code
M264C4
M252C3
Specification
Classification data
Ceiling support
Interlocking Connect™ T24 C4 grid.
Interlocking Connect™ T24 C3 grid.
Support fasteners
Adjustable hangers/ rigid hangers.
Adjustable hangers/ rigid hangers.
Ceiling units
High-density glass wool tiles.
High-density glass wool tiles.
System accessories
None., Connect™ Demo Clip C4 20 mm thick., Connect™ Hygiene Advance Perimeter Tile., Connect™ Tape Hygiene Advance.
None., Connect™ Hygiene Advance Perimeter Tile., Connect™ Hygiene Clip 20 C3., Connect™ Hygiene Clip 40 C3., Connect™ Inspection Hatch C3, 600 x 600 mm., Connect™ Inspection Hatch C3 1200 x 600 mm., Connect™ Tape Hygiene Advance.
Additional properties
Tile size
600 x 600 mm., 1200 x 600 mm.
600 x 600 mm., 1200 x 600 mm.
Tile thickness
20 mm., 40 mm.
20 mm., 40 mm.
Grid colour
Grid White 01., Matt - C4.
Grid White 01., Matt - C4.
Trim
Connect™ Channel Trim C3/C4.
Connect™ Channel Trim C3/C4.
OverallDepth
150 mm (minimum).
150 mm (minimum).
Indoor climate
Recommended by the Swedish Asthma and Allergy Association. Certified as A+ by French VOC. Emission classification of building materials: M1. Clean room-classified according to ISO 4 and ISO 3, if the ceiling in C3 grid is sealed. Classified B1 and B5 for zone 4 according to standard NF S 90-351.
Recommended by the Swedish Asthma and Allergy Association. Certified as A+ by French VOC. Emission classification of building materials: M1. Clean room-classified according to ISO 4 and ISO 3, if the ceiling in C3 grid is sealed. Classified B1 and B5 for zone 4 according to standard NF S 90-351.
Moisture resistance
Class C, relative humidity 95% and 30°C, according to EN 13964:2014.
Class C, relative humidity 95% and 30°C, according to EN 13964:2014.
Fire safety
Complies with BS EN 13501-1, Class A2-s1, d0.
Complies with BS EN 13501-1, Class A2-s1, d0.
Sound absorption
200 mm-deep system: in accordance with EN ISO 11654, Class B (20 mm tile) or Class A (40 mm tile).
200 mm-deep system: in accordance with EN ISO 11654, Class B (20 mm tile) or Class A (40 mm tile).
Cleaning
Daily dusting, vacuum cleaning, wet-cleaning, high-pressure washing and steam-cleaning. Withstand use of hydrogen peroxide vapor and compatible with UV-C disinfection, BIFMA HCF 8.1-2019.
Daily dusting, vacuum cleaning, wet-cleaning, high-pressure washing and steam-cleaning. Withstand use of hydrogen peroxide vapor and compatible with UV-C disinfection, BIFMA HCF 8.1-2019.
Installation
M264C4 – suspended ceiling.
M252C3 – suspended ceiling.
Sustainability data
Contains Red List materials
No
No
Country of material origin
Poland
Poland
Country of product manufacture
Poland
Poland
Material
High-density glass wool
High-density glass wool
Carbon dioxide equivalent
Normalized unit
(kg CO₂ eq/kg) A1–A3 ('Production stage') :
-
A1–A3 ('Production stage') :
-
Declared unit
Certified
A1–A3 ('Production stage') :
9.32
Certified
A1–A3 ('Production stage') :
9.32
Recyclability
100%
100%
Recycled content
59 %
59 %
Expected Life
50 year
50 year
