Summary
Highly insulated aluminium windows (inward/ outward opening) in a choice of colour and finish.
Highly insulated aluminium windows (inward/ outward opening) in a choice of colour and finish.
Highly insulated aluminium windows (inward/ outward opening) in a choice of colour and finish.
Application
Highly insulated window system offering a range of solutions for all types of inward and outward opening windows.
Can be combined with CS 77 doors, CP 130 and CP 155 sliding systems and Ventalis ventilation units.
Highly insulated window system offering a range of solutions for all types of inward and outward opening windows.
Can be combined with CS 77 doors, CP 130 and CP 155 sliding systems and Ventalis ventilation units.
Highly insulated window system offering a range of solutions for all types of inward and outward opening windows.
Can be combined with CS 77 doors, CP 130 and CP 155 sliding systems and Ventalis ventilation units.
Description

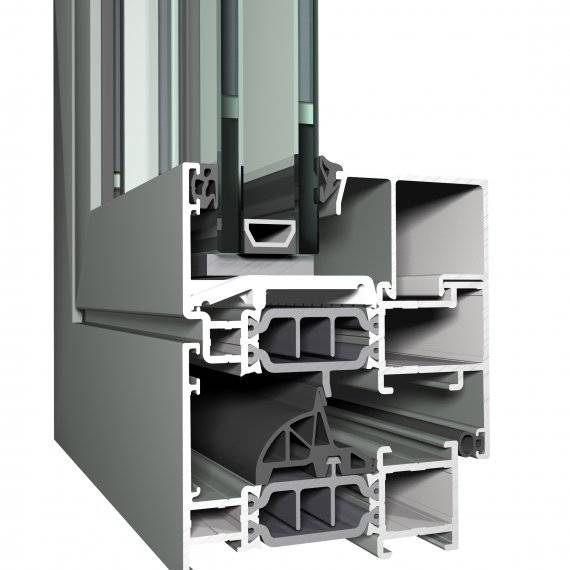

Concept System® 77 is a highly insulated window system which meets and often exceeds the British and European standards for thermal insulation, weather resistance, stability, acoustic performance and security.
A complete range of solutions for all types of inward and outward opening windows, it can be combined with CS 77 doors, CP 130 and CP 155 sliding systems and Ventalis ventilation units.
Features and benefits:
- Inward and outward opening casement and pivot windows.
- Drained and ventilated glazing with EPDM synthetic rubber gaskets.
- Choose from a full range of polyester powder coat colours and anodized finishes.
- Dual colour available offering a different colour inside and out.
- Weather stripped profiles with polyamide thermal breaks.
- High insulation variant available.
- Ten-year systems guarantee provided as standard.
- Awarded the coveted Swiss Minergie® component accreditation for thermal performance.
- Corresponds to the BRE Global Green Guide online generic specification for windows and achieves a summary rating of A, Element Number 1231500007.
- Meets the very stringent requirements to be awarded the Secured by Design accreditation.
- Available as smoke and heat evacuation casements to EN 12101-2.
- CAD and BIM details available on request.
Concept System® 77 is a highly insulated window system which meets and often exceeds the British and European standards for thermal insulation, weather resistance, stability, acoustic performance and security.
A complete range of solutions for all types of inward and outward opening windows, it can be combined with CS 77 doors, CP 130 and CP 155 sliding systems and Ventalis ventilation units.
Features and benefits:
- Inward and outward opening casement and pivot windows.
- Drained and ventilated glazing with EPDM synthetic rubber gaskets.
- Choose from a full range of polyester powder coat colours and anodized finishes.
- Dual colour available offering a different colour inside and out.
- Weather stripped profiles with polyamide thermal breaks.
- High insulation variant available.
- Ten-year systems guarantee provided as standard.
- Awarded the coveted Swiss Minergie® component accreditation for thermal performance.
- Corresponds to the BRE Global Green Guide online generic specification for windows and achieves a summary rating of A, Element Number 1231500007.
- Meets the very stringent requirements to be awarded the Secured by Design accreditation.
- Available as smoke and heat evacuation casements to EN 12101-2.
- CAD and BIM details available on request.
Concept System® 77 is a highly insulated window system which meets and often exceeds the British and European standards for thermal insulation, weather resistance, stability, acoustic performance and security.
A complete range of solutions for all types of inward and outward opening windows, it can be combined with CS 77 doors, CP 130 and CP 155 sliding systems and Ventalis ventilation units.
Features and benefits:
- Inward and outward opening casement and pivot windows.
- Drained and ventilated glazing with EPDM synthetic rubber gaskets.
- Choose from a full range of polyester powder coat colours and anodized finishes.
- Dual colour available offering a different colour inside and out.
- Weather stripped profiles with polyamide thermal breaks.
- High insulation variant available.
- Ten-year systems guarantee provided as standard.
- Awarded the coveted Swiss Minergie® component accreditation for thermal performance.
- Corresponds to the BRE Global Green Guide online generic specification for windows and achieves a summary rating of A, Element Number 1231500007.
- Meets the very stringent requirements to be awarded the Secured by Design accreditation.
- Available as smoke and heat evacuation casements to EN 12101-2.
- CAD and BIM details available on request.
Product certifications
Color
Bronze, Black, Other
Bronze, Black, Other
Bronze, Black, Other
Finish
Anodized, Powder-coated, Natural
Anodized, Powder-coated, Natural
Anodized, Powder-coated, Natural
Material
Aluminium, Glass
Aluminium, Glass
Aluminium, Glass
Shape
Rectangle, Square, Circle
Rectangle, Square, Circle
Rectangle, Square, Circle
Length
Bespoke
Bespoke
Bespoke
Width
Bespoke
Bespoke
Bespoke
Height
Bespoke
Bespoke
Bespoke
Warranty description
Ten year
Ten year
Ten year
Specification
Classification data
Description
Insulated aluminium windows.
Insulated aluminium windows.
Insulated aluminium windows.
Standard
Non-fire- and/ or smoke-rated windows to BS EN 14351-1 and BS 4873.
Non-fire- and/ or smoke-rated windows to BS EN 14351-1 and BS 4873.
Non-fire- and/ or smoke-rated windows to BS EN 14351-1 and BS 4873.
Dimensions and configurations
Fixed., Inward opening tilt turn., Inward opening tilt only., Inward opening turn only., Inward opening tilt and slide., Inward opening folding sliding., Outward opening top hung projecting., Outward opening side hung projecting., Outward opening top hung., Outward opening side hung., Outward opening parallel opening., Pivot, horizontal pivot.
Fixed., Inward opening tilt turn., Inward opening tilt only., Inward opening turn only., Inward opening tilt and slide., Inward opening folding sliding., Outward opening top hung projecting., Outward opening side hung projecting., Outward opening top hung., Outward opening side hung., Outward opening parallel opening., Pivot, horizontal pivot.
Fixed., Inward opening tilt turn., Inward opening tilt only., Inward opening turn only., Inward opening tilt and slide., Inward opening folding sliding., Outward opening top hung projecting., Outward opening side hung projecting., Outward opening top hung., Outward opening side hung., Outward opening parallel opening., Pivot, horizontal pivot.
Product performance
-
-
-
Weather performance
-
-
-
Air permeability
Up to 600 Pa (class 4).
Up to 600 Pa (class 4).
Up to 600 Pa (class 4).
Watertightness
Up to 600 Pa (class 9A).
Up to 600 Pa (class 9A).
Up to 600 Pa (class 9A).
Resistance to wind load
Up to 2000 Pa (class 5).
Up to 2000 Pa (class 5).
Up to 2000 Pa (class 5).
Safety
-
-
-
Security level
PAS 24:2012 (UK Secured by Design standard) and RC2/ WK2 (European standard EN(V)1627–EN(V)1630 (windows).
PAS 24:2012 (UK Secured by Design standard) and RC2/ WK2 (European standard EN(V)1627–EN(V)1630 (windows).
PAS 24:2012 (UK Secured by Design standard) and RC2/ WK2 (European standard EN(V)1627–EN(V)1630 (windows).
Environmental
-
-
-
Acoustic performance rating
Rw (C;Ctr) = 37 (-1;-4) to 44 (-2;-5) dB.
Rw (C;Ctr) = 37 (-1;-4) to 44 (-2;-5) dB.
Rw (C;Ctr) = 37 (-1;-4) to 44 (-2;-5) dB.
Thermal
-
-
-
Whole window U-value
Manufacturer's standard.
1.4 W/m²K.
1.1 W/m²K.
Frame
-
-
-
Profile
CS 77 Concept System Airmax., CS 77 Concept System Functional., CS 77 Concept System Hidden Vent., CS 77 Concept System High., CS 77 Concept System Renaissance., CS 77 Concept System Thermo-front.
CS 77 Concept System Airmax., CS 77 Concept System Functional., CS 77 Concept System Hidden Vent., CS 77 Concept System High., CS 77 Concept System Renaissance., CS 77 Concept System Thermo-front.
CS 77 Concept System Airmax., CS 77 Concept System Functional., CS 77 Concept System Hidden Vent., CS 77 Concept System High., CS 77 Concept System Renaissance., CS 77 Concept System Thermo-front.
Finish as delivered
-
-
-
Coating
Powder coating to BS EN 12206-1., Powder coating to APA Qualicoat standard., Anodized to EWAA/ EURAS-Qualanod standard., Anodized to BS 3987.
Powder coating to BS EN 12206-1., Powder coating to APA Qualicoat standard., Anodized to EWAA/ EURAS-Qualanod standard., Anodized to BS 3987.
Powder coating to BS EN 12206-1., Powder coating to APA Qualicoat standard., Anodized to EWAA/ EURAS-Qualanod standard., Anodized to BS 3987.
Film thickness (minimum)
Manufacturer's standard.
Manufacturer's standard.
Manufacturer's standard.
Ventilator
Not required., Ventalis trickle ventilator.
Not required., Ventalis trickle ventilator.
Not required., Ventalis trickle ventilator.
Glazing or infill
-
-
-
Requirements
Single glazed.
Double glazed.
Triple glazed.
Hardware
Horizon handles, anodized., Horizon handles, powder-coated., Orchid handles, black., Orchid handles, white., Orchid handles, anodized., Shield handles, unpolished natural anodized., Standard handles.
Horizon handles, anodized., Horizon handles, powder-coated., Orchid handles, black., Orchid handles, white., Orchid handles, anodized., Shield handles, unpolished natural anodized., Standard handles.
Horizon handles, anodized., Horizon handles, powder-coated., Orchid handles, black., Orchid handles, white., Orchid handles, anodized., Shield handles, unpolished natural anodized., Standard handles.
Operation
-
-
-
Type
Manual., Remote operation.
Manual., Remote operation.
Manual., Remote operation.
Additional properties
Accessories
None., Window restrictor.
None., Window restrictor.
None., Window restrictor.
Sustainability data
Contains Red List materials
No
No
No
Country of material origin
Europe
Europe
Europe
Country of product manufacture
Europe
Europe
Europe
Material
Aluminium, Glass
Aluminium, Glass
Aluminium, Glass
Recyclability
100%
100%
100%
Recycled content
47 %
47 %
47 %
