Summary

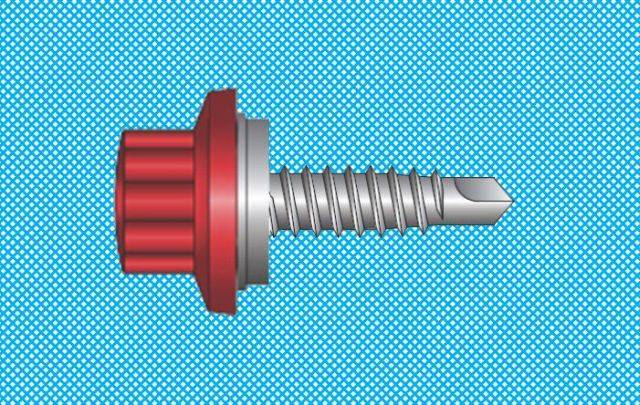

Stainless steel self-drilling stitching fasteners with moulded head for roofing and cladding.
Stainless steel self-drilling stitching fasteners with moulded head for roofing and cladding.
Application
For mechanically fixing (stitching) two metal sheets up to 1 mm-thick together.
Warranty available for use in the following locations:
- Buildings in residential and commercial settings with humidity class of Class 1, Class 2, Class 3 or Class 4 to BS 5250.
- Buildings with an internal temperature range of -45°C to 50°C.
- Coastal locations (within Class 4).
Fixfast products must be installed using recommended tools and accessories - consult manufacturer for details.
For mechanically fixing (stitching) two metal sheets up to 1 mm-thick together.
Warranty available for use in the following locations:
- Buildings in residential and commercial settings with humidity class of Class 1, Class 2, Class 3 or Class 4 to BS 5250.
- Buildings with an internal temperature range of -45°C to 50°C.
- Coastal locations (within Class 4).
Fixfast products must be installed using recommended tools and accessories - consult manufacturer for details.
Description
Features and benefits:
- Warranted fasteners with £20 million UK insurance cover.
- Grade 1.4301 (304), A2 stainless steel is used for superior resistance to corrosion.
- Bi-metal, manufactured for superior drilling performance.
- Good pull-out and shear performance.
- Free-spin zone helps prevent damage from overdriving the fastener and reduces the risk of the fastener unwinding.
- 11 mm, colour moulded head made from UV-resistant nylon to match the sheeting panel.
- ETA approved and CE Marked.
- Precision manufactured in accordance with ISO 9001 and ISO 14001 Quality and Management Systems.
Features and benefits:
- Warranted fasteners with £20 million UK insurance cover.
- Grade 1.4301 (304), A2 stainless steel is used for superior resistance to corrosion.
- Bi-metal, manufactured for superior drilling performance.
- Good pull-out and shear performance.
- Free-spin zone helps prevent damage from overdriving the fastener and reduces the risk of the fastener unwinding.
- 11 mm, colour moulded head made from UV-resistant nylon to match the sheeting panel.
- ETA approved and CE Marked.
- Precision manufactured in accordance with ISO 9001 and ISO 14001 Quality and Management Systems.
Material
Stainless steel
Stainless steel
SKU Code
MF2-SS
MF2-SS
Specification
Classification data
Material
A2 (304) grade stainless steel, with carbon steel case hardened point and UV-stabilized nylon moulded head.
A2 (304) grade stainless steel, with carbon steel case hardened point and UV-stabilized nylon moulded head.
Finish
Multiple layer organic coating, colour.
Multiple layer organic coating, colour.
Head type
Bi-Hex, 11 mm.
Bi-Hex, 11 mm.
Size
-
-
Diameter
4.8 mm.
6.3 mm.
Length
25 mm.
25 mm.
Washers
Required., Not required.
Required., Not required.
