Compare variants
Summary
Pre-hung duct panelling solution.
Pre-hung duct panelling solution.
Application
Washrooms
Washrooms
Description

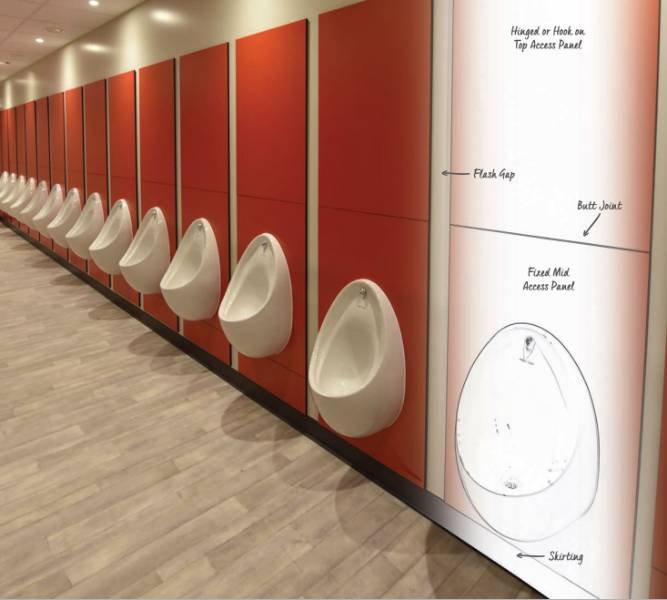

Fully framed, pre-hung washroom duct and wall panel systems with all face panels factory mounted onto either timber or metal subframe systems.
Duct panelling hides services and also provides convenient access to cisterns for maintenance; this is extremely convenient in areas of high use such as school toilet cubicles, pubic toilet cubicles, commercial toilet cubicles etc.
Fully framed, pre-hung washroom duct and wall panel systems with all face panels factory mounted onto either timber or metal subframe systems.
Duct panelling hides services and also provides convenient access to cisterns for maintenance; this is extremely convenient in areas of high use such as school toilet cubicles, pubic toilet cubicles, commercial toilet cubicles etc.
Material
High pressure laminate (HPL)
High pressure laminate (HPL)
Length
Bespoke
Bespoke
Width
Bespoke
Bespoke
Height
Bespoke
Bespoke
Specification
Classification data
Panels
Select – High Pressure Laminate PUR bonded onto 18 mm MR MDF., Select Plus – High Pressure Laminate PUR bonded onto 18 mm MR MDF., Select Veneer – Natural Wood Veneer bonded onto 18 mm MR MDF with matching hardwood edges. Panels split to suit sanitaryware.
Select – High Pressure Laminate PUR bonded onto 18 mm MR MDF., Select Plus – High Pressure Laminate PUR bonded onto 18 mm MR MDF., Select Veneer – Natural Wood Veneer bonded onto 18 mm MR MDF with matching hardwood edges. Panels split to suit sanitaryware.
Supporting frame
-
-
Wall panels
Aluminium frame system.
Sole Plate – 25 mm WBP Plywood (to be packed level) Subframe – 18/36 mm MR MDF/WBP Plywood pre-assembled frame Panels pre-hung onto subframe using steel hook on clips and nylon push fit clips as required
Flash gap panels
High Pressure Laminate bonded onto 36 mm MR MDF. Panels hung onto subframe using galvanized hook-on clips and nylon push fit clips as required.
High Pressure Laminate bonded onto 36 mm MR MDF. Panels hung onto subframe using galvanized hook-on clips and nylon push fit clips as required.
Additional properties
Edges
2 mm ABS edges., Matching hardwood edges., Postformed vertical edges.
2 mm ABS edges., Matching hardwood edges., Postformed vertical edges.
Sustainability data
Country of material origin
Europe
Europe
Country of product manufacture
Europe
Europe
Recyclability
100%
100%
