Summary
54 mm wide double or single glazed partitioning system with two part 25 mm deflection head.
54 mm wide double or single glazed partitioning system with two part 25 mm deflection head.
Application
Suitable for any educational, commercial and mixed-use space.
Suitable for any educational, commercial and mixed-use space.
Description

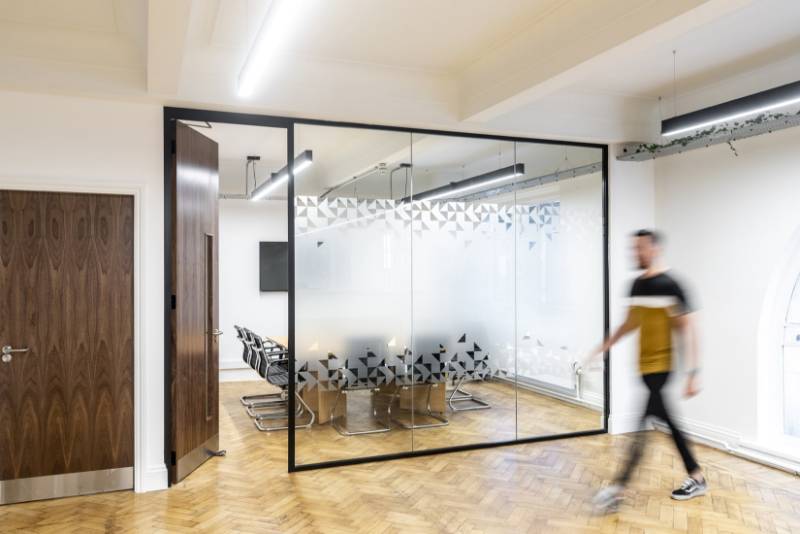

54 mm-wide partitioning system available with a range of glass configurations, including slimline double-glazed or single-glazed options. The system includes frameless bubble jointed glazing and minimal trackwork.
Polar 54 system achieves an acoustic performance of to 47 dB (Rw) in a slimline frame. The system can accommodate 10–14.8 mm glass in either a single or double-glazed format. There are options for ±25 mm deflection channels, as well as 100 mm drywall tape and joint adaptor and Komfire 75 and 100 wrap around reducers - consult manufacturer for details.
The system is compatible with Kross Glaze applied bars, with the option of an internal Kross Glaze bar for the double-glazed version. Polar 54 can be installed alongside Komfort’s Sonik, single glazed and timber door options. To create an elegant and stylish design, all aluminium sections are powder coated any RAL or BS colour code.
Features and Benefits:
- Frameless.
- Multiple glass configurations.
- Track size (w x h): 54 x 32 mm.
- Fire ratings (maximum): None.
- Acoustic rating (Rw, maximum): Up to 47 dB.
- Structural rating: Up to BS 6180 - 0.74kN
54 mm-wide partitioning system available with a range of glass configurations, including slimline double-glazed or single-glazed options. The system includes frameless bubble jointed glazing and minimal trackwork.
Polar 54 system achieves an acoustic performance of to 47 dB (Rw) in a slimline frame. The system can accommodate 10–14.8 mm glass in either a single or double-glazed format. There are options for ±25 mm deflection channels, as well as 100 mm drywall tape and joint adaptor and Komfire 75 and 100 wrap around reducers - consult manufacturer for details.
The system is compatible with Kross Glaze applied bars, with the option of an internal Kross Glaze bar for the double-glazed version. Polar 54 can be installed alongside Komfort’s Sonik, single glazed and timber door options. To create an elegant and stylish design, all aluminium sections are powder coated any RAL or BS colour code.
Features and Benefits:
- Frameless.
- Multiple glass configurations.
- Track size (w x h): 54 x 32 mm.
- Fire ratings (maximum): None.
- Acoustic rating (Rw, maximum): Up to 47 dB.
- Structural rating: Up to BS 6180 - 0.74kN
Digital objects
Color
White, Grey, Silver, Black
White, Grey, Silver, Black
Finish
Anodized, Powder-coated
Anodized, Powder-coated
Material
Glass, Aluminium
Glass, Aluminium
Length
Bespoke
Bespoke
Width
Bespoke
Bespoke
Height
Bespoke
Bespoke
Specification
Classification data
Unit size
-
-
Partition height (nominal)
-
-
Width (nominal)
-
-
Deflection allowance (maximum)
-
-
Head
±25 mm deflection tolerance.
±25 mm deflection tolerance.
Solid panels
-
-
Finish and colour
-
-
Glazed panels
-
-
Type
Double glazed, acoustic laminated glass, 12.8/ 10 mm thick toughened panes (40dB (Rw))., Double glazed, acoustic laminated glass, 12.8 mm/ 12 mm thick toughened panes (41dB (Rw)., Double glazed, acoustic laminated glass, 12.8/ 10.8 mm thick panes (41dB (Rw), Double glazed, acoustic laminated glass, 12.8/ 12.8 mm thick panes (45dB (Rw)), Double glazed, toughened glass, 12/ 10 mm thick panes (39dB (Rw))., Double glazed, toughened glass, 12/ 10.8 mm thick acoustic laminated panes(40dB (Rw))., Double glazed, acoustic laminated glass, 14.8/ 10.8 mm thick toughened panes (44 dB (Rw))., Double glazed, acoustic laminated glass, 14.8 mm/ 12.8 mm thick toughened panes (45 dB (Rw)).
Single glazed, toughened glass, 10 mm thick (31 dB Rw)., Single glazed, toughened glass, 12 mm thick (33 dB Rw)., Single glazed, acoustic laminated glass, 10.8 mm thick (38 dB Rw)., Single glazed, acoustic laminated glass, 12.8 mm thick (39 dB Rw).
Additional features
None., Manifestation/ graphics.
None., Manifestation/ graphics.
Additional properties
Ironmongery
-
-
Joints
Bubble Jointed.
Bubble Jointed.
Finish/ Colour
Aluminium, anodized., Aluminium, polyester powder coat RAL 9010., Aluminium, polyester powder coated BS 00A05., Aluminium, polyester powder coated RAL 9005., Aluminium, polyester powder coated RAL 9006.
Aluminium, anodized., Aluminium, polyester powder coat RAL 9010., Aluminium, polyester powder coated BS 00A05., Aluminium, polyester powder coated RAL 9005., Aluminium, polyester powder coated RAL 9006.
Sustainability data
Country of product manufacture
United Kingdom
United Kingdom
