Summary

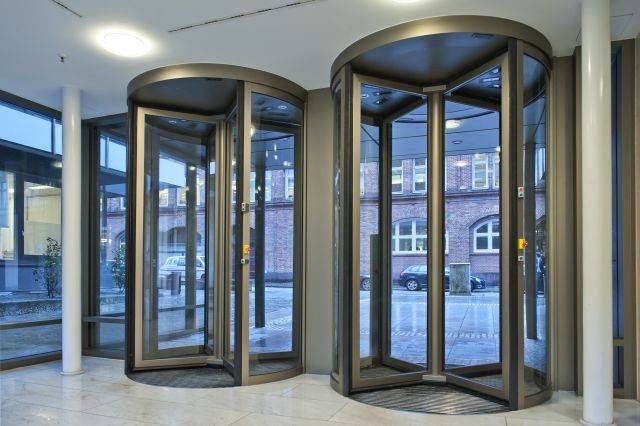

Security revolving doors for controlled access.
-
-
Application
- Staff access for security-relevant areas.
- Sensitive areas in banks and financial institutions, power plants, military installations, etc.
- High security applications.
-
-
Description
Revolving doors for securing protected areas of a building against unauthorized entry, offering a variety of options for different levels of security. Scales or a separation sensor can also be used to monitor the interior of the unit for individual access. They can be controlled by a card reader, buttons, control desk or by biometric identification systems. The wide and varied selection of optional extras includes reinforced bullet-resistant and burglar resistant versions, as well as special sliding doors to El-30 fire closure.
Features and benefits:
- No locking up of people thanks to endpoint locking.
- Variants with resistance classes WK2 or WK3.
- All-glass units with underfloor drive.
- Optional approved escape route column.
- Optional contact mats.
- Optional scales with weight limits or actual weight.
- Optional night closure.
- Optional optical separation by SRD Vision system.
- Safety sensor system according to DIN 18650.
-
-
Digital objects
-
-
Color
Silver, Other
-
-
Finish
Anodized, Powder-coated, Stainless steel
-
-
Material
Aluminium, Glass, Stainless steel
-
-
Shape
Circle
-
-
SKU Code
SRD-C01, SRD-E01, SRD-S01
-
-
Specification
Classification data
Configuration
Three leaf (120°)., Four leaf (180°).
-
-
Materials and finishes
-
-
-
Doors
Polyester powder coated, RAL., Silver anodized., Stainless steel.
-
-
Drum walls
Glazed., Metal cladding.
-
-
Glazing
-
-
-
Type
Class WK2., Class WK3., FB2, bullet resistant BR 2-S glazing., FB3, bullet resistant BR 3-S glazing., FB4, bullet resistant BR 4-S glazing.
-
-
Activation and control system
-
-
-
Type
Started by hand push after release signal or optional automatic start. Sensor system in the barrier segment, including release button in centre post. End point locking system in case of power failure, default can be set to turn freely or lock. Signal display red/green for rotary cycle 180°.
-
-
Safety devices
Emergency off switches installed at internal corner profile., Additional emergency off switch to external corner profile., Actual weight scales including rotation unit scales., Scales with weight limit including rotating unit scales., Biometrics outide SRD., SRD Vision watchfull eye system.
-
-
Accessories
Not required., 300 mm Black U shaped handle., 300 mm Stainless steel U shaped handle., Full length stainless steel vertical handle., Full width horizontal stainless steel handle., No handle for automatic operation.
-
-
Additional properties
Capacity
20 per minute.
-
-
Diameter
1500 mm., 1600 mm., 1700 mm., 1800 mm., 1900 mm., 2000 mm.
-
-
Fixing
Finished floor level (FFL).
-
-
Passage height
2100 mm., 2200 mm., 2300 mm., 2400 mm., 2500 mm., 2600 mm., 2700 mm.
-
-
Power consumption
60 VA.
-
-
Power supply
110–230 V AC, 50/60 Hz.
-
-
Colour/ Finish
Polyester powder-coated, RAL colour., Anodized, silver., Stainless steel.
-
-
