Summary

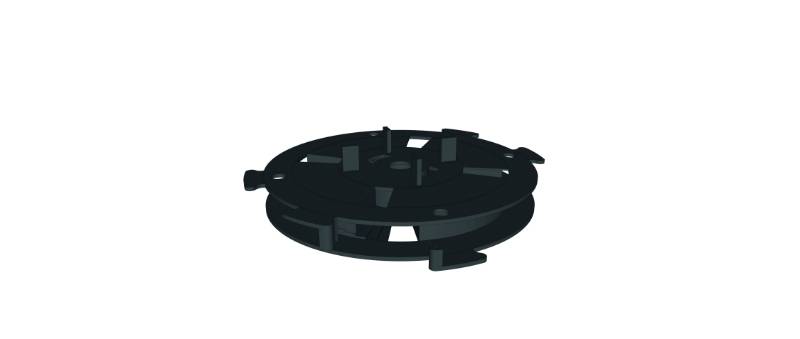

A combinable tile and paver support system that enables individual assembly heights.
-
-
Application

Suitable for balconies, terraces, roof terraces and other accessible spaces.


Enables access to pipelines and floor drains in the remaining hollow space.

-
-
Description

Adjustable support pedestals tat offer excellent solutions to make all your terraces a livable area with its products that you can use under stone and wood.

Suitable for levelling any sloped assembly of up to 15%.


Due to the open joints between the tiles and pavers, surface water can freely drain on to the substrate and, if fitted, into the drainage system beneath.


Typically the tiles and pavers will be at least 20 mm thick. They must be self-supporting.


The load bearing, environmental and slip resistance properties of the tiles and pavers must be determined from the manufacturer or supplier to ensure they are suitable for use with the pedestal system and external applications.


Features and benefits:

  • High resistance to chemicals.
  • Non-conductive to electricity, heat and sound.
  • Strength of flexibility and impact.
  • Water-repellent.
  • UV-resistance.
  • Resistance of load.
-
-
Color
Black
-
-
Material
Polypropylene
-
-
Shape
Other
-
-
Height
Bespoke
-
-
Warranty description
Two year
-
-

Specification

Classification data
Pedestal type
Telescopic.
-
-
Material
Polypropylene.
-
-
Adjustment
15–30 mm.
-
-
Accessories
Not required., GPEUS., GPSH10., GPSH20., GPSH50., GPJP30., GPJP47., GPLC., GSC20.
-
-

Additional properties

Load capacity
1000 kg.
-
-
FireRating
Class E.
-
-
Sound absorption
25 dB.
-
-
Coupler
GPEC: 65–110 mm.
-
-
Application temperature
-30 to 70°C.
-
-
Density
TS 2827-ISO 2781: 0.898±0.10 g/cm³.
-
-
Hardness (shore A)
TS 1181-EN ISO 868: 88.
-
-
Tensile strength (MPa)
TS 1967-ISO 37: 1.97±%5.
-
-

Sustainability data

Contains Red List materials
No
-
-
Country of material origin
United Kingdom
-
-
