Summary

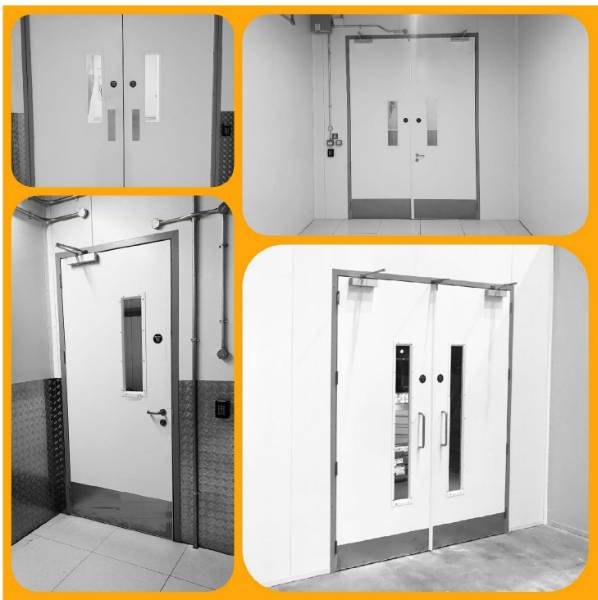

Fire rated steel doorsets (FD60/120/240(s)).
Fire rated steel doorsets (FD60/120/240(s)).
Application
Suitable for all commercial applications, including data centres, schools and colleges, hospitals, clean rooms, food processing areas, telecom switch rooms and hotels.
Suitable for all commercial applications, including data centres, schools and colleges, hospitals, clean rooms, food processing areas, telecom switch rooms and hotels.
Description
Fire-resisting doorsets that are designed and suitable for schools and colleges, hospitals, clean rooms, food processing areas, telecom switch rooms and all data facility applications.
They are available as Fire rated, Emergency Exit, Acoustic (Rw = 32dB) or Security doorsets.
Fire-resisting doorsets that are designed and suitable for schools and colleges, hospitals, clean rooms, food processing areas, telecom switch rooms and all data facility applications.
They are available as Fire rated, Emergency Exit, Acoustic (Rw = 32dB) or Security doorsets.
Digital objects
Finish
Powder-coated
Powder-coated
Material
Steel
Steel
Shape
Rectangle
Rectangle
Length
Bespoke
Bespoke
Width
Bespoke
Bespoke
Height
Bespoke
Bespoke
WarrantyDescription
One year
One year
Specification
Classification data
Standard
To BS EN 1634-1: 2008 and BS 476-22.
To BS EN 1634-1: 2008 and BS 476-22.
Configuration
Double leaf, left hand active., Double leaf, right hand active.
Single leaf, left hand opening., Single leaf, right handed opening.
Performance
-
-
Acoustic performance
Unrated., Sound reduction to Rw 32 dB.
Unrated., Sound reduction to Rw 32 dB.
Frame
-
-
Material
1.2 mm galvanized steel.
1.2 mm galvanized steel.
Threshold
Low profile aluminium., Folded steel.
Low profile aluminium., Folded steel.
Perimeter seals or inserts
2 mm folded galvanized steel (25 x 42 x 25) u-channel to perimeter of door and three channels vertically positioned over the width of the door blade.
2 mm folded galvanized steel (25 x 42 x 25) u-channel to perimeter of door and three channels vertically positioned over the width of the door blade.
Finish
-
-
Coating
Powder coated
Powder coated
Door leaf
-
-
Thickness
44 mm.
44 mm.
Panel details
Dufaylite corrugated cardboard type D170 10.
Dufaylite corrugated cardboard type D170 10.
Material
1.2 mm galvanized steel interlocked to the back face and fixed on the top and bottom edge of each door blade.
1.2 mm galvanized steel interlocked to the back face and fixed on the top and bottom edge of each door blade.
Glazing
-
-
Type
Laminated glass., Polycarbonate., Pyroguard 8 mm clear., Firelite 5 mm clear ceramic glass.
Laminated glass., Polycarbonate., Pyroguard 8 mm clear., Firelite 5 mm clear ceramic glass.
Finish
-
-
Coating
Powder coated.
Powder coated.
Door accessories
None., Fireblock 240 minute fire rated louvre (457 x 457 mm)., Fireblock 240 minute fire rated louvre (457 x 1546 mm).
None., Fireblock 240 minute fire rated louvre (457 x 457 mm)., Fireblock 240 minute fire rated louvre (457 x 1546 mm).
Hardware
Assa Abloy Cam Motion Closer., Kickplate, stainless steel brush finish, 200 mm high., Lever bolt., Rack and pinion closer., Satin stainless steel, grade 14 hinges, conclead bearing type, Standard furniture set 1, brushed stainless steel finish., Standard furniture set 2, brushed stainless steel finish., Standard furniture set 3, brushed stainless steel finish., Standard furniture set 4, brushed stainless steel finish., Standard furniture set 5, brushed stainless steel finish.
Assa Abloy Cam Motion Closer., Kickplate, stainless steel brush finish, 200 mm high., Rack and pinion closer., Satin stainless steel, grade 14 hinges, conclead bearing type, Standard furniture set 1, brushed stainless steel finish., Standard furniture set 2, brushed stainless steel finish., Standard furniture set 3, brushed stainless steel finish., Standard furniture set 4, brushed stainless steel finish., Standard furniture set 5, brushed stainless steel finish.
Additional properties
Door frame profile
Architrave frame, Clamp/Wrap-around frame, Fixed double rebate frame, Fixed single rebate frame
Architrave frame, Clamp/Wrap-around frame, Fixed double rebate frame, Fixed single rebate frame
Vision panel
Rectangular unit 305 x 203 mm., Single unit 1340 x 152 mm clear vision., Square unit 457 x 457 mm., Twin unit 457 x 152 mm., Twin unit 711 x 152 mm.
Circular unit 300 mm., Circular unit 400 mm., Rectangular unit 305 x 203 mm., Single unit 1340 x 152 mm clear vision., Square unit 457 x 457 mm., Twin unit 457 x 152 mm., Twin unit 711 x 152 mm.
Gasket
188S Teardrop self adhesive silicon cold smoke seal pre-fitted to the internal rebate of the frame.
188S Teardrop self adhesive silicon cold smoke seal pre-fitted to the internal rebate of the frame.
Meeting stiles
Plain meeting stile., Single astragal to active leaf only., Standard double astragal.
-
Sustainability data
Contains Red List materials
No
No
Country of product manufacture
United Kingdom
United Kingdom
Recyclability
100
100
Recycled content
35 %
35 %
