Summary

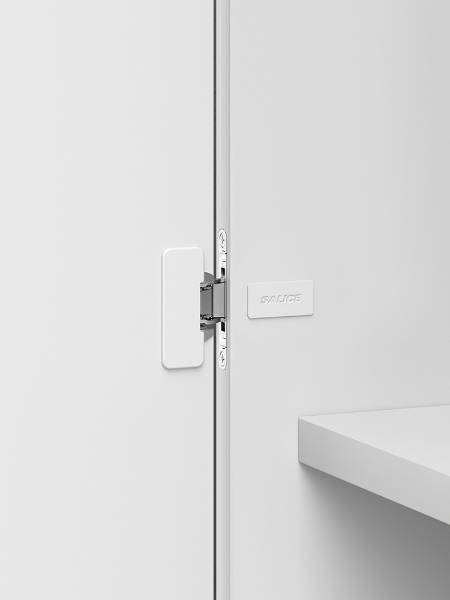

Concealed hinge with recessed insertion in the door and in the side.
-
-
Application
- Suitable for applications with exceptional elegance and functionality.
- Wood and aluminium-framed doors.
-
-
Description
Conecta is an innovative hinge that is completely hidden inside the door and the side of the cabinet. Its technical characteristics allow it to manage the opening and closing movements with precision and fluidity even with large and heavy furniture doors in both wood and aluminium.
Features and benefits:
- Concealed design.
- Customisable cover caps for both the door and side of the cabinet.
- Nickel-plated and titanium finishes.
- Rapid fixing of the door to the cabinet side.
- 22 mm deep metal cup.
- Drilling distance fixed at 10 mm from the edge of the door to the centre of the hole.
- Diameter 35 mm.
- 94° opening.
- Sideways adjustment: -1 +2 mm.
- Height adjustment: -2.5 +2.5 mm.
- Depth adjustment: 0 +3 mm.
- Concealed CQA3JE (wood)/ CQZ3JE (aluminium) hinge with recessed insertion in the door and in the side.
- Door overlay on the side 10 mm with holder DQG5.
- Door overlay on the side 12.5 mm with holder DQG3.
- Concealed CQA3KE (wood)/ CQZ3KE (aluminium) hinge with recessed insertion in the door and in the side.
- Door overlay on the side 14 mm with holder DQG5.
- Door overlay on the side 16.5 mm with holder DQG3.
-
-
Color
Silver
-
-
Material
Nickel, Titanium, Metal
-
-
Shape
Other, Rectangle
-
-
SKU Code
CQA3JE, CQA3KE, CQZ3JE, CQZ3KE
-
-
Specification
Classification data
Form
Concealed.
-
-
Size
22 mm.
-
-
Material and finish
Nickel-plated.
-
-
Colour
Silver.
-
-
Additional properties
Opening
94° opening.
-
-
Hinge type
Concealed hinge CQA3JE, nickel-plated - CQA3JE9XXV., Concealed hinge CQA3KE, nickel-plated - CQA3KE9XXV., Concealed hinge CQA3JE, nickel-plated - CQA3JE9XXI., Concealed hinge CQA3KE, nickel-plated - CQA3KE9XXI.
-
-
Hinge
Holder DQG5B, nickel-plated - DQG5BX9XS., Holder DQG3B, nickel-plated - DQG3BX9XS., Holder DQG5B, nickel-plated - DQG5BX9XI., Holder DQG3B, nickel-plated - DQG3BX9XI.
-
-
Cover caps
Not required., Screw cover cap for DQG3B with Salice printed logo, white - PQFXAA1SN., Screw cover cap for DQG3B with Salice printed logo, black - PQFXAA3SN., Screw cover cap for DQG3B with Salice printed logo, titanium - PQFXAA6SN., Screw cover cap for DQG3B with Salice printed logo, satin chrome - PQFXAA9SN., Screw cover cap for DQG3B with Salice printed logo, satin gold - PQFXAAWSN., Screw cover cap for DQG5B with Salice printed logo, white - PQF5AA1SN., Screw cover cap for DQG5B with Salice printed logo, black - PQF5AA3SN, Screw cover cap for DQG5B with Salice printed logo, titanium - PQF5AA6SN., Screw cover cap for DQG5B with Salice printed logo, satin chrome - PQF5AA9SN., Screw cover cap for DQG5B with Salice printed logo, satin gold - PQF5AAWSN., Screw cover cap for DQG3B, white - PQFXAA1., Screw cover cap for DQG3B, black - PQFXAA3., Screw cover cap for DQG3B, titanium - PQFXAA6., Screw cover cap for DQG3B, satin chrome - PQFXAA9., Screw cover cap for DQG3B, satin gold - PQFXAAW., Screw cover cap for DQG5B, white - PQF5AA1., Screw cover cap for DQG5B, black - PQF5AA3., Screw cover cap for DQG5B, titanium - PQF5AA6., Screw cover cap for DQG5B, satin chrome - PQF5AA9., Screw cover cap for DQG5B, satin gold - PQF5AAW., Plastic flange cover cap, white - PQSAAA1., Plastic flange cover cap, black - PQSAAA3., Plastic flange cover cap, titanium - PQSAAA6., Plastic flange cover cap, satin chrome - PQSAAA9., Plastic flange cover cap, satin gold - PQSAAAW.
-
-
Accessories
Not required., Steel corner connectors - DQZ3HS5V04., Die-cast corner connectors - DEL6BSFV02., Gasket for glass - DQZ6AG3000T., Aluminium door profile, anodized aluminium - DQZ6LP300P., Aluminium door profile, titanium - DQZ6LP300T., Aluminium door profile with handle, anodized aluminium - DQZ6LF300P., Aluminium door profile with handle, titanium DQZ6LF300T.
-
-
Sustainability data
Contains Red List materials
No
-
-
Country of material origin
Italy
-
-
Country of product manufacture
Italy
-
-
Material
Nickel, Titanium, Metal
-
-
Expected Life
Lifetime
-
-
