Suitable for use for installation by 3M™ DBI-SALA® approved installer:

• 3M™ DBI-SALA® RoofSafe™ Rail Safety System: Can be used to facilitate roof inspections, routine maintenance, gutter cleaning, facade access, access to roof plants and other roof top work procedures. The system also allows for work positioning tasks to be conducted (such as window cleaning).
• 3M™ DBI-SALA® Roofsafe UniRail™ Safety System: In addition to fall protection applications, this system can also be used as the primary anchor point for suspended rope access tasks. Can also be specified and designed to facilitate abseil/ roped access work.

Suitable for use for installation by 3M™ DBI-SALA® approved installer:

• 3M™ DBI-SALA® RoofSafe™ Rail Safety System: Can be used to facilitate roof inspections, routine maintenance, gutter cleaning, facade access, access to roof plants and other roof top work procedures. The system also allows for work positioning tasks to be conducted (such as window cleaning).
• 3M™ DBI-SALA® Roofsafe UniRail™ Safety System: In addition to fall protection applications, this system can also be used as the primary anchor point for suspended rope access tasks. Can also be specified and designed to facilitate abseil/ roped access work.

A permanent, structural or top fixed rigid aluminium safety and access horizontal rail system conforming to EN 795 type D, 2012, TS 16415 and BS 8610.

Two versions are available:

3M™ DBI-SALA® Horizontal Rail Safety System:

Extruded aluminium rail system which can be fitted to built up, composite metal pitched roofs and a variety of standing seam roof systems, providing an aesthetically pleasing and practical safety system.

Features and benefits:

• A direct rivet or seam-clamp to roof rail system that can facilitate changes in direction and roof slopes, ensuring continuous safe roof access.
• Discrete, low profile design provides a visually unobtrusive safety anchorage solution, with no highly visible anchor points and cables.
• Provides a safety anchorage system for multiple users, allowing more complex maintenance tasks to be undertaken in an efficient manner, including suspended rope access work.
• Even load distribution through the fixing system ensures complete safety in the event of a single user fall, without damaging the integrity of the roof system.
• The solid anchorage ensures no deflection or unnecessary loading of anchor points during use, and makes the system beneficial on roofs with a pitch of more than 15°.

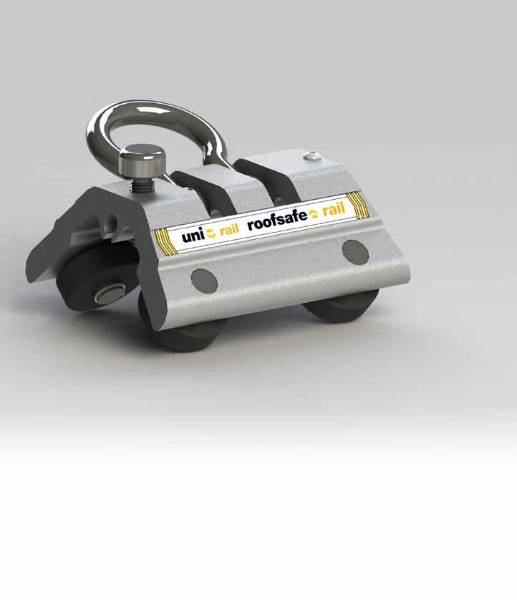

• A four wheel attachment carriage runs along the extruded aluminium rail, making the system user friendly.
• The lightweight modular rail system comes in 3 m (9.84 ft) sections, making it easy to transport and handle on site.
• Eliminates many common hazards associated with cable based fall protection systems including cable fretting, cable tension, cable deflections, accidental roof anchor deployment, passing of intermediate cable supports, roof sheet abrasion and roof traversing.

A permanent, structural or top fixed rigid aluminium safety and access horizontal rail system conforming to EN 795 type D, 2012, TS 16415 and BS 8610.

Two versions are available:

3M™ DBI-SALA® Horizontal Rail Safety System:

Extruded aluminium rail system which can be fitted to built up, composite metal pitched roofs and a variety of standing seam roof systems, providing an aesthetically pleasing and practical safety system.

Features and benefits:

• A direct rivet or seam-clamp to roof rail system that can facilitate changes in direction and roof slopes, ensuring continuous safe roof access.
• Discrete, low profile design provides a visually unobtrusive safety anchorage solution, with no highly visible anchor points and cables.
• Provides a safety anchorage system for multiple users, allowing more complex maintenance tasks to be undertaken in an efficient manner, including suspended rope access work.
• Even load distribution through the fixing system ensures complete safety in the event of a single user fall, without damaging the integrity of the roof system.
• The solid anchorage ensures no deflection or unnecessary loading of anchor points during use, and makes the system beneficial on roofs with a pitch of more than 15°.
• A four wheel attachment carriage runs along the extruded aluminium rail, making the system user friendly.
• The lightweight modular rail system comes in 3 m (9.84 ft) sections, making it easy to transport and handle on site.
• Eliminates many common hazards associated with cable based fall protection systems including cable fretting, cable tension, cable deflections, accidental roof anchor deployment, passing of intermediate cable supports, roof sheet abrasion and roof traversing.
