Summary

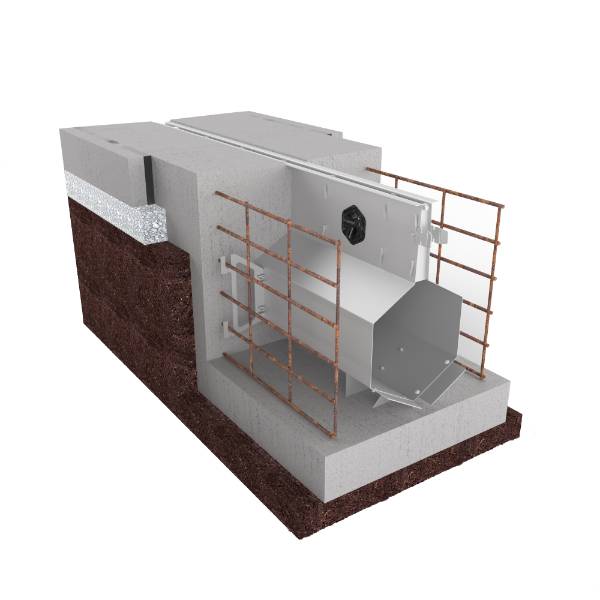

UltraSlot slotdrain-e with hanging brackets for rebar, for external pavement areas subject to constant traffic. Offers overall cost saving through faster installation, less concrete and rebar required
-
-
Application
Suitable for use in external pavement areas such as:
- Airports
- Ports and docks
- Highways and motorways
- Distribution yards and industrial units
- Petrol stations and forecourts
- Bus terminals
- Shopping centres and retail parks
-
-
Description
Gatic Slotdrain-e is the newest addition to the Slotdrain range. This new patented design reduces time and materials during installation, resulting in a 25% cost saving on average.
- Patented technology allowing a reduction in concrete and mesh requirements
- Unique reinforcement design which allows quick and easy installation
- Load rating from D400 to F900
- Manufactured from steel which is 100% recyclable
- Ease of installation
- Strong and durable
- V-shaped channel base to aid self-cleaning
- Made in the UK
- BS EN 1433 compliant
- CE and UKCA marking
UltraSlot is used in external pavement areas such as airports, ports, highways and similar areas. The system is designed to withstand infrequent ultra heavy-duty loads.
Features and benefits:
- Locking feature allows the channels to lock together to ensure alignments and a tight fit prior to taping and pouring.
- Through spacer allows the flexibility to pass cables through the channel throat and provides additional reinforcement for UltraSlot products.
- Treadsafe option is available, which reduces the slot opening from 30 mm wide to 2 x 9 mm wide slots, which makes the channel safe to cross for pedestrians.
- Designed to withstand infrequent heavy-duty loads with a load classification of E600 and F900.
-
-
Finish
Galvanized
-
-
Material
Steel
-
-
Shape
Hexagon
-
-
Length
500 mm, 1000 mm, 3000 mm
-
-
Specification
Classification data
Standard
To BS EN 1433.
-
-
Certification
CE Certified in accordance with BS EN 1433.
-
-
Material
Galvanized steel.
-
-
Slot body
-
-
-
Material
Galvanized steel.
-
-
Upstand height
200 mm.
-
-
Load class (minimum)
E 600., F 900.
-
-
Channel unit dimensions
-
-
-
Width (nominal)
100 mm.
-
-
Overall depth
357 mm.
-
-
Length
500 mm., 1000 mm., 3000 mm.
-
-
Integral accessories
Access Box., Shallow Invert Access Box., Outlet Box., Roto Modular Outlet Box., Silt Box., Roto Modular Silt Box., Drop Connector., End Cap/Outlet., Catchpit Connector., Flow Regulator., Channel Pipe.
-
-
Additional properties
Capacity
9 L/m.
-
-
Sustainability data
Country of product manufacture
United Kingdom
-
-
Recyclability
100%
-
-
