45 mm Single Euro-Profile Cylinder - 440.400.101.3510.SNP
45 mm Single Euro-Profile Cylinder - 440.400.101.3510.SNP
45 mm Single Euro-Profile Cylinder - 440.400.101.3510.SNP

Verified 2 months ago

3v Architectural Hardware Ltd

Verified 2 months ago

3v Architectural Hardware Ltd

Verified 2 months ago

3v Architectural Hardware Ltd
Summary

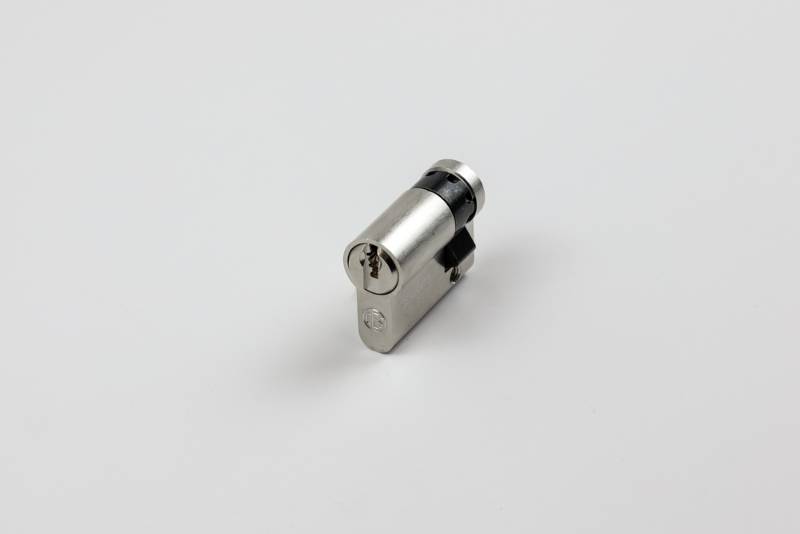

Single Euro-profile cylinder.
Color
Silver
-
-
Finish
Satin, Brass
-
-
Material
Brass
-
-
Shape
Other
-
-
Length
45 mm
-
-
Width
30 mm
-
-
Height
33 mm
-
-
Warranty description
Ten year
-
-

Specification

Standard
To DIN EN 1303.
-
-
Classification grades (minimum)
-
-
-
Category of use
To DIN EN 1303, Grade 1.
-
-
Durability
To DIN EN 1303, Grade 6.
-
-
Door mass and closing force
To DIN EN 1303, Grade 0.
-
-
Suitability for use on fire-resisting and/ or smoke control doorset
To DIN EN 1303, Grade B.
-
-
Safety
To DIN EN 1303, Grade 0.
-
-
Corrosion resistance and temperature
To DIN EN 1303, Grade C.
-
-
Security and drill resistance
To DIN EN 1303, Grade 6.
-
-
Key identification requirement
To DIN EN 1303, Grade 0.
-
-
Latch or lock type
Euro-profile single cylinder.
-
-
Backset
45 mm.
-
-
Material and finish
Satin nickel-plated brass faceplate.
-
-

Additional properties

Fastener
M5 x 80 fixing screw.
-
-
Increased drilling protection
Not required., BS3/BS4., BZ1/BZ2.
-
-
Locking arrangement
Double cylinder.
-
-
Locking options
Emergency function (8710)., Free wheel mode for gear-box driven multipoint locks (8710F)., Anti-Amok function (815/140)., Caretaker/ janitor function (810/59).
-
-

Sustainability data

Contains Red List materials
No
-
-
Country of material origin
Germany
-
-
Country of product manufacture
Germany
-
-
Embodied carbon
1.06 kg CO₂ eq/unit
-
-
Recyclability
Can be incinerated, landfilled or recycled
-
-
Recycled content
100 %
-
-
