Summary

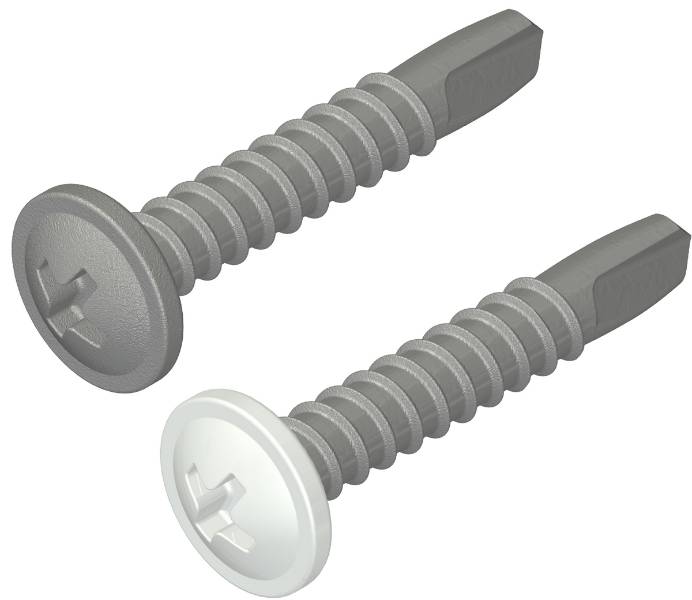

Low profile stainless steel self-drilling clip fix fasteners for fixing to light steel.
Low profile stainless steel self-drilling clip fix fasteners for fixing to light steel.
Application
- For mechanically fixing metal sheeting to light metal purlins and rails.
- For mechanically fixing components of steel, aluminium and metal framing systems.
- For mechanically fixing metal sheeting to light metal purlins and rails.
- For mechanically fixing components of steel, aluminium and metal framing systems.
Description
Secret fix fasteners for roofing and cladding, manufactured from stainless steel for optimum corrosion resistance.
Features and benefits:
- Warranted fasteners with £20 million UK insurance cover.
- Low profile head for a discreet finish which may be powder coated for precise colour matching.
- Excellent pull-out and shear performance.
- Purpose designed and precision manufactured by Fixfast.
- ETA approved and CE marked
Secret fix fasteners for roofing and cladding, manufactured from stainless steel for optimum corrosion resistance.
Features and benefits:
- Warranted fasteners with £20 million UK insurance cover.
- Low profile head for a discreet finish which may be powder coated for precise colour matching.
- Excellent pull-out and shear performance.
- Purpose designed and precision manufactured by Fixfast.
- ETA approved and CE marked
Product certifications
Color
Beige, Black, Blue, Bronze, Brown, Copper, Cream, Gold, Green, Grey, Ivory, Orange, Pink, Purple, Red, Silver, Turquoise, White, Yellow, Other
Beige, Black, Blue, Bronze, Brown, Copper, Cream, Gold, Green, Grey, Ivory, Orange, Pink, Purple, Red, Silver, Turquoise, White, Yellow, Other
Finish
Mill, Lacquered
Mill, Lacquered
Material
Stainless steel
Stainless steel
Length
16 mm, 25 mm
16 mm, 25 mm
Width
4.8 mm
4.8 mm
Warranty description
30 year
30 year
SKU Code
DF3-SS-CF(L)
DF3-SS-CF(L)
Specification
Classification data
Material
1.4301 stainless steel (304M), with carbon steel case hardened welded point, organic coating.
410 grade stainless steel.
Finish
Organic coating.
Bright zinc plate coating.
Head type
Low profile pan, no. 2 phillips recess.
Low profile pan, no. 2 phillips recess.
Size
-
-
Diameter
4.8 mm.
4.8 mm.
Length
25 mm.
16 mm.
Washers
Required., Not required.
Required., Not required.
Additional properties
Drilling capacity
1.2–3.0 mm Steel.
1.2–3.0 mm Steel.
