Summary

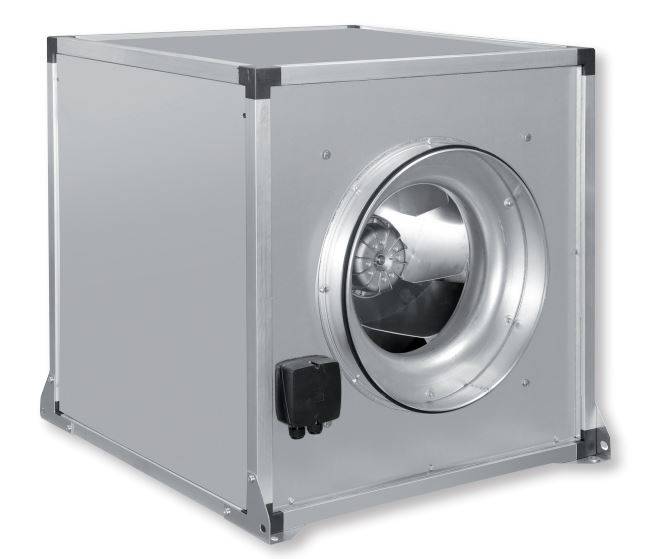

Acoustic, self-cleaning cabinet fans
-
-
Application
Designed for high aerodynamic performances with a very compact profiles and very low sound levels.
-
-
Description
Internally lined with 25 mm-thick fireproof acoustic fiberglass insulation (M0), direct drive backward curved centrifugal impeller, dynamically balanced. Direct supply brushless EC motor, high performance, low consumption, ball bearings, built-in thermal protector and able to work at temperatures from -20ºC to +40ºC:
- Single-phase version 230V±10% 50/60Hz, IP44.
- Three-phase version 400V±10% 50/60Hz, IP54.
Adjustable speed 100% by potentiometer located in the terminal box or by external control type REB-ECOWATT. Analogue input signal 0-10V to control the fan.
Consult technical literature for information on performance values including airflow, speed and sound pressure level.
Features and benefits:
- Backward curved centrifugal impeller.
- Low noise level.
- IP55 external terminal box.
- Robust and quality aluminium profiles and plastic corners.
-
-
Digital objects
-
-
Color
Silver
-
-
Material
Aluminium, Plastic, Steel
-
-
Shape
Square
-
-
Width
500 mm, 650 mm, 750 mm, 800 mm, 900 mm
-
-
Warranty description
Two year
-
-
Specification
Classification data
Standards
-
-
-
Performance
To BS EN ISO 5801.
-
-
Dimensions
500 x 574 mm.
-
-
Duty
-
-
-
Air volume
Up to 3055 l/s.
-
-
Air temperature
-20°C to 40°C.
-
-
Material
Aluminium., Galvanized sheet steel., Plastic.
-
-
Accessories
AIRSENS-CO2., AIRSENS-RH., AIRSENS-VOC., APC Discharge protection guards., CONTROL ECOWATT BASIC., CONTROL ECOWATT AC/4A., CPFL-S / CPFL-E., CTI CVA/CHAT Outdoor cover., KSE., MBE., MBW., MFL-G4., REB-ECOWATT., REMP., SIL., TDP-D., TDP-PI., TDP-S., MULTI-REG.
-
-
Additional properties
Weight
25 kg.
-
-
Sustainability data
Material
Aluminium, Plastic, Steel
-
-
