Summary
Sound-absorbing acoustic panels with a semi-concealed grid system, used for highlighting direction in a room; fully demountable with a smooth finish.
Sound-absorbing acoustic panels with a semi-concealed grid system, used for highlighting direction in a room; fully demountable with a smooth finish.
Application
For applications requiring a ceiling which is mechanically secured to the structural soffit.
For applications requiring a ceiling which is mechanically secured to the structural soffit.
Description
Ecophon Focus™ Lp has a semi-concealed grid system and is used for highlighting direction in a room. There is a 20 mm-wide gap between the tiles in the emphasized direction and a narrow gap in the other. Ecophon Focus™ Lp is a patented system, with edges which are sharp and well defined. The system consists of standard Focus™ Lp tiles in 600 or 300 mm width, and Focus™ Lp Technical tiles in widths of 150, 300 or 600 mm.
The tiles and Connect™ grid systems give an approximate weight of 3–4 kg/m² for the system.
Features and benefits:
- The tiles are manufactured from high-density glass wool.
- The visible surface has an Akutex™ FT coating, and the back of the tile is covered with glass tissue. The edges are painted.
- The technical tiles are used to create areas for technical installations such as modular luminaires, ventilation, sprinklers, smoke detectors, loudspeakers, etc. in conjunction with standard tiles.
- The exact width (148, 298 or 598 mm) is adopted to suit the standard sizes of luminaires on the market. The gap between a technical tile and a standard tile will therefore be 11 mm.
- The grid is manufactured from galvanized steel.
- For best performance and system quality, use Connect™ grid and accessories.
Ecophon Focus™ Lp has a semi-concealed grid system and is used for highlighting direction in a room. There is a 20 mm-wide gap between the tiles in the emphasized direction and a narrow gap in the other. Ecophon Focus™ Lp is a patented system, with edges which are sharp and well defined. The system consists of standard Focus™ Lp tiles in 600 or 300 mm width, and Focus™ Lp Technical tiles in widths of 150, 300 or 600 mm.
The tiles and Connect™ grid systems give an approximate weight of 3–4 kg/m² for the system.
Features and benefits:
- The tiles are manufactured from high-density glass wool.
- The visible surface has an Akutex™ FT coating, and the back of the tile is covered with glass tissue. The edges are painted.
- The technical tiles are used to create areas for technical installations such as modular luminaires, ventilation, sprinklers, smoke detectors, loudspeakers, etc. in conjunction with standard tiles.
- The exact width (148, 298 or 598 mm) is adopted to suit the standard sizes of luminaires on the market. The gap between a technical tile and a standard tile will therefore be 11 mm.
- The grid is manufactured from galvanized steel.
- For best performance and system quality, use Connect™ grid and accessories.
Product certifications
Digital objects
Color
Clear, Beige, Black, Blue, Bronze, Brown, Copper, Cream, Gold, Green, Grey, Ivory, Orange, Pink, Purple, Red, Silver, Turquoise, White, Yellow, Other
Clear, Beige, Black, Blue, Bronze, Brown, Copper, Cream, Gold, Green, Grey, Ivory, Orange, Pink, Purple, Red, Silver, Turquoise, White, Yellow, Other
Finish
Painted
Painted
Material
High-density glass wool
High-density glass wool
Shape
Square, Rectangle
Square, Rectangle
Length
600 mm, 1200 mm, 1800 mm, Bespoke
600 mm, 1200 mm, 1800 mm, Bespoke
Width
150 mm, 300 mm, 600 mm, Bespoke
150 mm, 300 mm, 600 mm, Bespoke
Height
20 mm
20 mm
Warranty description
Ten year, 50 year
Ten year, 50 year
SKU Code
Focus Lp acoustic ceiling system
M392
Specification
Ceiling support
Interlocking Connect™ T24 HD grid.
Interlocking Connect™ T24 HD grid.
Support fasteners
Adjustable hangers/ wire.
Adjustable hangers/ wire.
Ceiling units
High-density glass wool tiles.
High-density glass wool tiles.
System accessories
None., Connect™ Bridging Profile and Clip., Connect™ Lighting Clip., Edge 500., Edge sealant., Focus Frieze Dg/Ds Panel, 2400 x 600 mm., Focus Wing Ds.
None., Connect™ Bridging Profile and Clip., Connect™ Lighting Clip., Edge 500., Edge sealant., Focus Frieze Dg/Ds Panel, 2400 x 600 mm., Focus Wing Ds.
Additional properties
Size (l x w)
600 x 150 mm., 600 x 300 mm., 600 x 600 mm., 1200 x 150 mm., 1200 x 300 mm., 1200 x 600 mm.
600 x 150 mm., 600 x 300 mm., 600 x 600 mm., 1200 x 150 mm., 1200 x 300 mm., 1200 x 600 mm., 1800 x 600 mm.
Thickness
20 mm.
20 mm.
Colour/ Finish
Cloudy Day., Dark Diamond., Eucalyptus Leaf., Fresh Clover., Goji Berry., Golden Field., Highland Fog., Moonlight Sky., Morning Drizzle., Ocean Storm., Peach Rose., Ruby Rock., Sage Garden., Scallop Shells., Silent Steam., Silk Slate., Silver Stone., Summer Forest., Sunset Heat., Volcanic Ash., Wet Sand., White Frost.
Cloudy Day., Dark Diamond., Eucalyptus Leaf., Fresh Clover., Goji Berry., Golden Field., Highland Fog., Moonlight Sky., Morning Drizzle., Ocean Storm., Peach Rose., Ruby Rock., Sage Garden., Scallop Shells., Silent Steam., Silk Slate., Silver Stone., Summer Forest., Sunset Heat., Volcanic Ash., Wet Sand., White Frost.
Grid colour
Black 01 matt., Grey 01 metallic., White 010.
Black 01 matt., Grey 01 metallic., White 010.
Trim
Connect™ Angle Trim C1.
Connect™ Angle Trim C1.
Lighting
None., Ecophon Line, 1200 x 150 mm., Ecophon Line, 1200 x 300 mm.
None., Ecophon Line, 1200 x 150 mm., Ecophon Line, 1200 x 300 mm.
Weight
3–4 kg/m².
3–4 kg/m².
Demounting depth (minimum)
20 mm.
20 mm.
Indoor climate
Recommended by the Swedish Asthma and Allergy Association. Certified as A+ by French VOC. Emission classification of building materials: M1.
Recommended by the Swedish Asthma and Allergy Association. Certified as A+ by French VOC. Emission classification of building materials: M1.
Moisture resistance
Class C, relative humidity 95% and 30°C, according to EN 13964:2014.
Class C, relative humidity 95% and 30°C, according to EN 13964:2014.
Fire safety
To BS EN 13501-1, Class A2-s1, d0.
To BS EN 13501-1, Class A2-s1, d0.
Sound absorption
200 mm-deep system: in accordance with EN ISO 11654, Class A.
200 mm-deep system: in accordance with EN ISO 11654, Class A.
Sound insulation
24 dB.
24 dB.
Ceiling attenuation class
25 dB.
25 dB.
Articulation Class
180 AC (1.5).
180 AC (1.5).
Cleaning
The ceiling system can withstand daily dusting and vacuum cleaning, and weekly wet-wiping.
The ceiling system can withstand daily dusting and vacuum cleaning, and weekly wet-wiping.
Installation

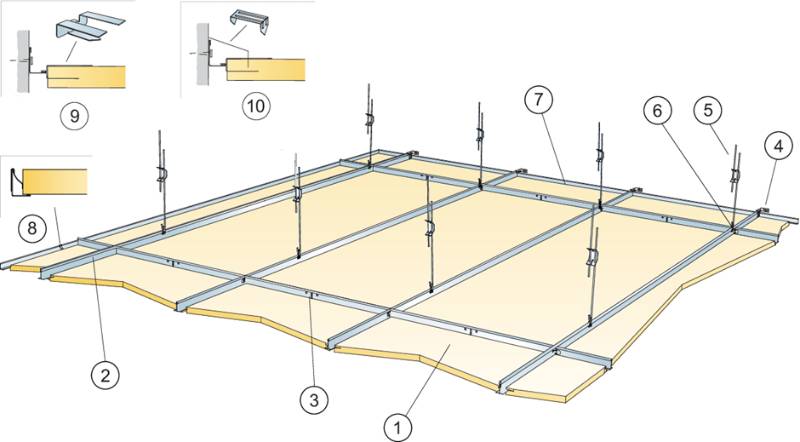

M390 - suspended ceiling, M390 - suspended ceiling with M391 - technical installation.

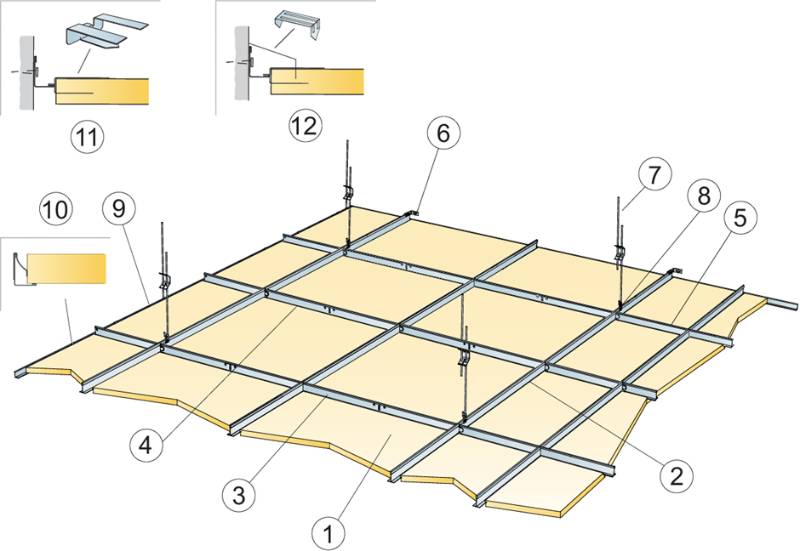

M392 - XL in grid., M392 - XL in grid with M391 - technical installation.
Sustainability data
Contains Red List materials
No
No
Country of material origin
Sweden
Sweden
Country of product manufacture
Sweden
Sweden
Material
High-density glass wool
High-density glass wool
A1–A3 ('Production stage')
Embodied carbon as defined in BS EN 15804
Normalized unit
-
-
Declared unit
4.66 kg CO₂ eq/m²
Certified
4.66 kg CO₂ eq/m²
Certified
Recyclability
100%
100%
Recycled content
57 %
57 %
Expected Life
50 year
50 year
