Summary
Protective layer for use on roof membranes on flat roofs under solar systems.
Protective layer for use on roof membranes on flat roofs under solar systems.
Protective layer for use on roof membranes on flat roofs under solar systems.
Product certifications
- ISO 14025 Environmental product declaration
- EN 13501-2018 Reaction to fire classification report
- ISO 14025 Type III environmental declaration.
- Product Environment Footprint (PEF) New Life
- ISO 14025 Environmental product declaration
- EN 13501-2018 Reaction to fire classification report
- ISO 14025 Type III environmental declaration.
- Product Environment Footprint (PEF) New Life
- ISO 14025 Environmental product declaration
- EN 13501-2018 Reaction to fire classification report
- ISO 14025 Type III environmental declaration.
- Product Environment Footprint (PEF) New Life
Color
Black
Black
Black
Finish
Anti-slip
Anti-slip
Anti-slip
Material
Polyurethane (PUR), Rubber
Polyurethane (PUR), Rubber
Polyurethane (PUR), Rubber
Shape
Rectangle
Rectangle
Rectangle
Length
10000 mm
10000 mm
10000 mm
Width
1250 mm
1250 mm
1250 mm
Height
6 mm, 8 mm
6 mm, 8 mm
6 mm, 8 mm
Warranty description
Two year
Two year
Two year
Specification
Material

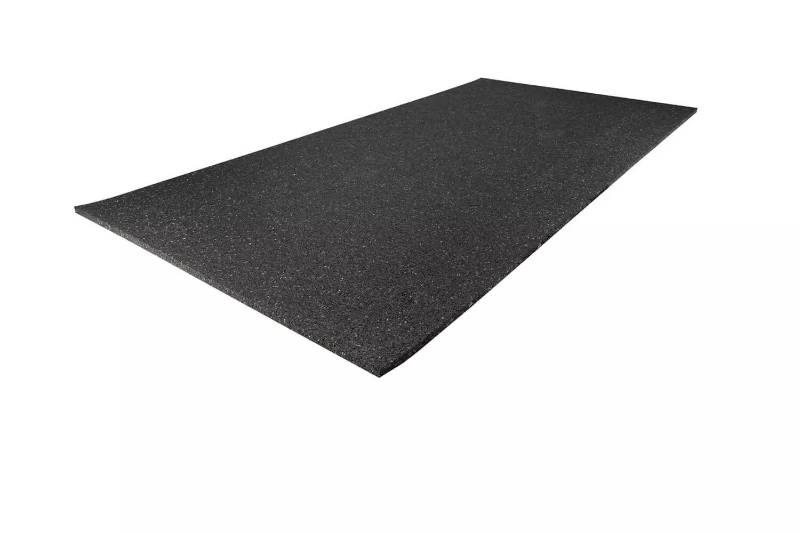

Polyurethane (PUR) bonded rubber fibres and granules.

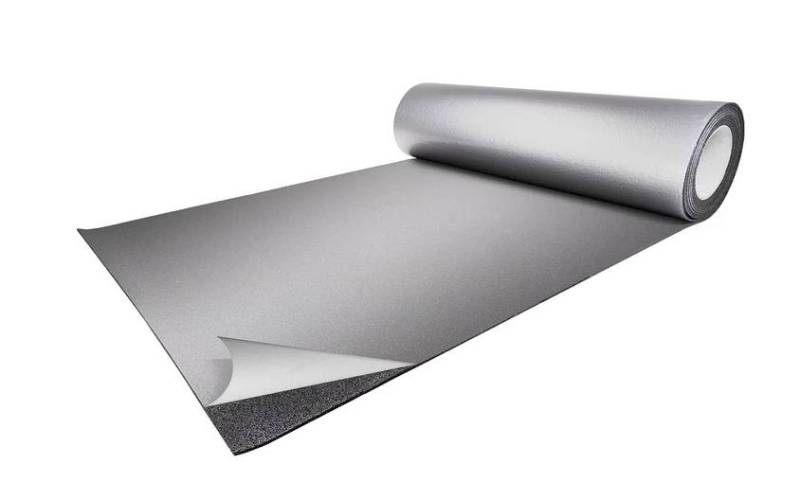

Polyurethane (PUR) bonded rubber fibres and granules, lined with a triplex aluminium foil on its underside and self adhesive lamination on the top side.
Polyurethane (PUR) and flame retardant bonded rubber fibres and granules.
Third-party certification
Cradle to Cradle Certified.
Cradle to Cradle Certified.
Cradle to Cradle Certified.
Performance characteristics
-
-
-
Reaction to fire
To DIN EN 13501-1, Class E.
To DIN EN 13501-1, Class E.
-
Tensile properties
To DIN EN ISO 1798, 0.5 N/mm².
To DIN EN ISO 1798, 0.5 N/mm².
To DIN EN ISO 1798, 0.5 N/mm².
Integral backing fleece
None.
None.
None.
Width (minimum)
1250 mm.
1250 mm.
1250 mm.
Thickness (minimum)
6 mm.
6 mm.
8 mm.
Colour
Black.
Black.
Black.
Recycled content
-
95%.
-
External fire performance
-
-
To DIN EN 13501-5, Broof(t1).
Tear resistance
-
-
0.7 N/mm².
Recycled content
-
-
99%.
Additional properties
Specific weight
≥780 kg/m³.
≥780 kg/m³.
≥765 kg/m³.
Elongation at break
To DIN EN ISO 1798, 45%.
To DIN EN ISO 1798, 45%.
To DIN EN ISO 1798, 45%.
Temperature resistance
-40°C to 115°C.
-40°C to 115°C.
-40°C to 115°C.
Sustainability data
Contains Red List materials
No
No
No
Country of material origin
Germany
Germany
Germany
Country of product manufacture
Germany
Germany
Germany
Material
Polyurethane (PUR), Rubber
Polyurethane (PUR), Rubber
Polyurethane (PUR), Rubber
A1-A3 (production stage)
Embodied carbon as defined in BS EN 15804
Lower emissions
Lower emissions
Lower emissions
Normalised unit
1136.4 kg CO₂ eq/kg
1136.4 kg CO₂ eq/kg
1136.4 kg CO₂ eq/kg
Declared unit
1 kg CO₂ eq/m²
Self-declared
1 kg CO₂ eq/m²
Self-declared
1 kg CO₂ eq/m²
Self-declared
Recyclability
99% Recyclable
99% Recyclable
99% Recyclable
Recycled content
95 %
95 %
95 %
Expected Life
Ten year
Ten year
Ten year
