Summary
Mullion-free single glazed 30 mm wide relocatable aluminium partitioning system with acoustic ratings of up to 40dB (Rw).
-
-
Application
A mullion-free single glazed partitioning system which can be used with variety of doors. Suitable for education, commercial and office spaces to create rooms and divisions.
-
-
Description

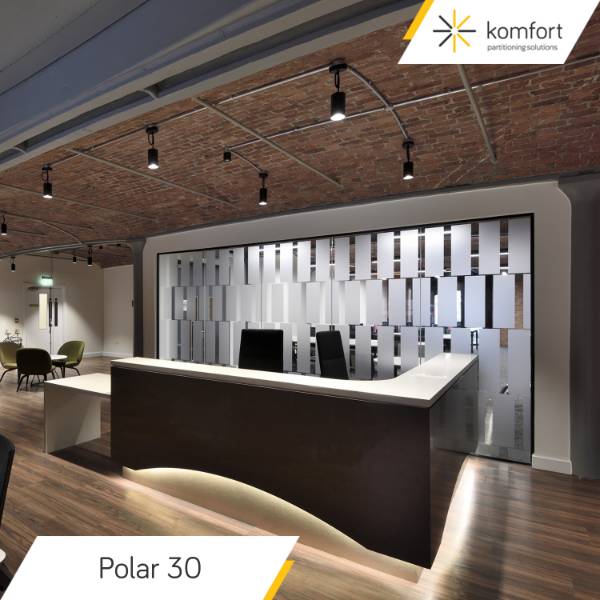

Polar 30 is Komfort’s mullion-free single glazed partitioning system using 10 - 14.8 mm glass configurations with a minimal aluminium trackwork. The dry jointed glazing is fully demountable and relocatable.
Features & benefits
- Trackwork | 30 mm Wide x 32 mm Deep
- Screen Height | Up to 3000 mm depending on configuration
- Acoustic Performance | Up to 40dB (Rw) depending on configuration
- Structural Performance | 0.74kN/m up to 3000 mm (BS 6180) depending on configuration
- Fire Performance | None
- Deflection Head | +/-25 mm
- Glass Options | 10 or 12 mm Toughened, 13.5 mm Toughened Laminated, 10.8mm, 12.8 mm or 14.8mm Acoustic Laminated
- Door Options | 12 mm Glass Doors, 44 mm & 54 mm Timber Doors, Sonik 52, 70 & 70R Doors
- Other Options | Applied Kross Glaze Bars, Switch Glass & Curved Glass depending on configuration
- Finishes | Polyester Powder Coated to any RAL or BS Colour Code or Special Anodized Finishes
- Integration | Fully Integrates with Komfire 75 and 100
-
-
Digital objects
-
-
Color
Beige, Black, Blue, Bronze, Brown, Copper, Cream, Gold, Green, Grey, Ivory, Orange, Pink, Purple, Silver, Red, Turquoise, White, Yellow, Other
-
-
Finish
Powder-coated, Anodized
-
-
Material
Glass, Aluminium
-
-
Shape
Square, Rectangle, Rhombus, Parallelogram, Trapezium, Trapezoid, Other
-
-
Length
Bespoke
-
-
Width
Bespoke
-
-
Height
Bespoke
-
-
WarrantyDescription
One year
-
-
SKU Code
Not Applicable
-
-
Specification
Third party accreditation
Third-party-accredited by UKAS-approved/ recognised body.
-
-
Unit size
-
-
-
Thickness
30 mm Wide Trackwork.
-
-
Partition height (nominal)
Insert Requirement | Maximum Height 2570 mm.
-
-
Width (nominal)
1200 mm.
-
-
Deflection allowance (maximum)
-
-
-
Head
32 mm Deep x 30 mm Wide Head Track | No Deflection., 97 mm Deep x 30 mm Wide 2-Part Head Track | +/-25 mm Deflection., 35 mm Deep x 96 mm Wide Komfire 75 Integrated 2-Part Head Track | No Deflection., 35 mm Deep x 121 mm Wide Komfire 100 Integrated 2-Part Head Track | No Deflection.
-
-
Floor
32 mm Deep x 29mm Wide Floor Track with Clip-On Bead | No Deflection.
-
-
Verticals
32 mm Deep x 30 mm Wide Wall Abutment | No Deflection., 32 mm Deep x 29 mm Wide Wall Abutment with Clip-On Bead | No Deflection., 35 mm Deep x 96 mm Wide 75 mm Wall Wrap Around Adaptor | No Deflection., 35 mm Deep x 121 mm Wide 100 mm Wall Wrap Around Adaptor | No Deflection., 47 mm Deep x 106 mm Wide 100 mm Wall Tape & Joint Adaptor| No Deflection.
-
-
Panel partition type
Single Glazed.
-
-
Framing, junctions, corners
Aluminium Extruded Trackwork.
-
-
Solid panels
-
-
-
Type
None.
-
-
Finish and colour
Insert Requirement | Powder coated to any RAL or BS colour code, architect to confirm.
-
-
Joint treatment
-
-
-
Type
Dry Bubble Joint., Silicone Joint.
-
-
Glazed panels
-
-
-
Type
Straight., Faceted., Curved | Minimum Radius 880 mm.
-
-
Integral blinds
None.
-
-
Additional features
None., 32 mm Applied Kross Glaze Bars., Switch Film.
-
-
Door arrangement
-
-
-
Type
Single Doorset | Full Height., Single Doorset | with Glazed Over Panel., Single Doorset | with Timber Over Panel., Double Doorset | Full Height., Double Doorset | with Glazed Over Panel., Double Doorset | with Timber Over Panel., Hospital Doorset | Full Height., Hospital Doorset | with Glazed Over Panel., Hospital Doorset | with Timber Over Panel., Not Required.
-
-
Door frames
K30DF | 40 mm Deep x 54 mm Wide Aluminium Door Frame., K75WDF | 50 mm Deep x 96 mm Wide 75mm Wall Wrap Around Aluminium Door Frame., K100WDF | 50 mm Deep x 121 mm Wide 100mm Wall Wrap Around Aluminium Door Frame., Frameless | For 10 mm Glass Doors Only., Not Required.
-
-
Door leafs
-
-
-
Type
12 mm Glass Door | up to 31dB (Rw)., 44 mm Timber Door with Streboard Core | up to 33dB (Rw)., 44 mm Timber Door with Moralt Core | up to 39dB (Rw)., 54 mm Rebated Timber Door with Streboard Core| up to 35dB (Rw)., 54 mm Rebated Timber Door with Moralt Core| up to 40dB (Rw)., Sonik 52 | 52 mm x 44 mm Double Glazed Door | up to 37dB (Rw)., Sonik 70 | 70 mm x 44 mm Single Glazed Door | up to 38dB (Rw)., Sonik 70 | 70 mm x 44 mm Double Glazed Door | up to 40dB (Rw)., Sonik 70R | 70 mm x 54 mm Rebated Single Glazed Door | up to 38dB (Rw)., Sonik 70R | 70 mm x 54 mm Rebated Door Double Glazed Door | up to 42dB (Rw)., Not Required.
-
-
Vision panels
Insert Requirement | Please consult Komfort Specification Team for more information.
-
-
Trims
32 mm Applied Kross Glaze Bars., None.
-
-
Hardware
Insert Requirement | Please consult Komfort Specification Team for more information.
-
-
Cable management and outlets
None.
-
-
Additional properties
Standards
ISO 9001-UKAS (Quality).
ISO 14001-UKAS (Environmental).
ISO 45001-UKAS (Health & Safety).
ISO 19650-BSI (BIM).
Constructionline - Gold Member.
CHAS.
Considerate Constructors Scheme.
Builders Profile - Premium Member.
FORS - Bronze.
FIS Member.
ISO 14001-UKAS (Environmental).
ISO 45001-UKAS (Health & Safety).
ISO 19650-BSI (BIM).
Constructionline - Gold Member.
CHAS.
Considerate Constructors Scheme.
Builders Profile - Premium Member.
FORS - Bronze.
FIS Member.
-
-
Locking
Locking., Non-Locking., Not Required.
-
-
Accessories
None., 32 mm Applied Kross Glaze Bars., Switch Film.
-
-
AcousticRating
33dB (Rw) | UKAS Laboratory Tested in accordance with BS EN ISO 10140-1 and 10140-2.
-
-
Strength
Light Duty up to 2570 mm in accordance with BS 5234-2., Medium Duty up to 2420 mm in accordance with BS 5234-2., Heavy Duty up to 2260 mm in accordance with BS 5234-2"
-
-
Ironmongery
Hinged., Pivoted., Lever Handles., Back to Back Pull Handles., Overhead Closer., Not Required.
-
-
Sustainability data
Country of material origin
United Kingdom
-
-
Country of product manufacture
United Kingdom
-
-
Recyclability
Up to 100% Glass, up to 100% Aluminium
-
-
