Summary
Acoustic sound-absorbing ceiling with demountable tiles, for use where strict demands are made on good acoustics and speech intelligibility.
Acoustic sound-absorbing ceiling with demountable tiles, for use where strict demands are made on good acoustics and speech intelligibility.
Acoustic sound-absorbing ceiling with demountable tiles, for use where strict demands are made on good acoustics and speech intelligibility.
Application
Ceiling system suitable for clean rooms, where disinfection and/ or cleaning is required on a regular basis.
Ceiling system suitable for clean rooms, where disinfection and/ or cleaning is required on a regular basis.
Ceiling system suitable for clean rooms, where disinfection and/ or cleaning is required on a regular basis.
Description
Ecophon Master™ E has a recessed visible grid and a tegular edge design, creating a ceiling with a shadow effect that accentuates each tile and partially conceals the grid system. Suitable for open plan offices or other premises where strict demands are made on good acoustics.
Features and benefits:
- The tiles are manufactured from high-density glass wool.
- The visible surface has an Akutex™ FT coating, and the back of the tile is covered with glass tissue. The edges are primed.
- For best performance and system quality, use Ecophon Connect grid and accessories.
- The grid is manufactured from galvanized steel.
Ecophon Master™ E has a recessed visible grid and a tegular edge design, creating a ceiling with a shadow effect that accentuates each tile and partially conceals the grid system. Suitable for open plan offices or other premises where strict demands are made on good acoustics.
Features and benefits:
- The tiles are manufactured from high-density glass wool.
- The visible surface has an Akutex™ FT coating, and the back of the tile is covered with glass tissue. The edges are primed.
- For best performance and system quality, use Ecophon Connect grid and accessories.
- The grid is manufactured from galvanized steel.
Ecophon Master™ E has a recessed visible grid and a tegular edge design, creating a ceiling with a shadow effect that accentuates each tile and partially conceals the grid system. Suitable for open plan offices or other premises where strict demands are made on good acoustics.
Features and benefits:
- The tiles are manufactured from high-density glass wool.
- The visible surface has an Akutex™ FT coating, and the back of the tile is covered with glass tissue. The edges are primed.
- For best performance and system quality, use Ecophon Connect grid and accessories.
- The grid is manufactured from galvanized steel.
Product certifications
Finish
Painted
Painted
Painted
Material
High-density glass wool
High-density glass wool
High-density glass wool
Shape
Square, Rectangle
Square, Rectangle
Square, Rectangle
Length
600 mm, 1200 mm, Bespoke
600 mm, 1200 mm, Bespoke
600 mm, 1200 mm, Bespoke
Width
600 mm, 1200 mm, Bespoke
600 mm, 1200 mm, Bespoke
600 mm, 1200 mm, Bespoke
Height
40 mm
40 mm
40 mm
Warranty description
Ten year, 50 year
Ten year, 50 year
Ten year, 50 year
SKU Code
M58
M567
M690
Specification
Classification data
Ceiling support
Interlocking Connect™ T15 grid.
Interlocking Connect™ T24 grid.
Interlocking Connect™ T15 grid.
Support fasteners
Adjustable hangers/ wire.
Adjustable hangers/ wire.
Adjustable hangers/ wire.
Ceiling units
Master E high-density glass wool tiles.
Master E high-density glass wool tiles.
Master E high-density glass wool tiles.
System accessories
None., Connect™ Edge Tool E., Connect™ E-Plug., Connect™ Hygiene Clip 40 C3., Connect™ Inspection Panel C1., Connect™ Lighting Clip., Connect™ Ventilation Grill., Edge 500., Edge Sealant., Extra Bass., Focus Wing.
None., Connect™ Edge Tool E., Connect™ E-Plug., Connect™ Hygiene Clip 40 C3., Connect™ Inspection Panel C1., Connect™ Lighting Clip., Connect™ Ventilation Grill., Edge 500., Edge Sealant., Extra Bass., Focus Wing.
None., Connect™ Edge Tool E., Connect™ E-Plug., Connect™ Hygiene Clip 40 C3., Connect™ Inspection Panel C1., Connect™ Lighting Clip., Connect™ Ventilation Grill., Edge 500., Edge Sealant., Extra Bass., Focus Wing.
Additional properties
Size (l x w)
600 x 600 mm., 1200 x 600 mm.
1200 x 1200 mm.
-
Thickness
40 mm.
40 mm.
40 mm.
Colour/ Finish
Cloudy Day., Dark Diamond., Eucalyptus Leaf., Fresh Clover., Goji Berry., Golden Field., Highland Fog., Moonlight Sky., Morning Drizzle., Ocean Storm., Peach Rose., Ruby Rock., Sage Garden., Scallop Shells., Silent Steam., Silk Slate., Silver Stone., Summer Forest., Sunset Heat., Volcanic Ash., Wet Sand., White Frost.
Cloudy Day., Dark Diamond., Eucalyptus Leaf., Fresh Clover., Goji Berry., Golden Field., Highland Fog., Moonlight Sky., Morning Drizzle., Ocean Storm., Peach Rose., Ruby Rock., Sage Garden., Scallop Shells., Silent Steam., Silk Slate., Silver Stone., Summer Forest., Sunset Heat., Volcanic Ash., Wet Sand., White Frost.
Cloudy Day., Dark Diamond., Eucalyptus Leaf., Fresh Clover., Goji Berry., Golden Field., Highland Fog., Moonlight Sky., Morning Drizzle., Ocean Storm., Peach Rose., Ruby Rock., Sage Garden., Scallop Shells., Silent Steam., Silk Slate., Silver Stone., Summer Forest., Sunset Heat., Volcanic Ash., Wet Sand., White Frost.
Grid colour
Black 01 matt., Grey 01 metallic., White 01.
Black 01 matt., Grey 01 metallic., White 01.
Black 01 matt., Grey 01 metallic., White 01.
Trim
Connect™ Angle Trim., Connect™ Channel Trim C1., Connect™ Column Trim., Connect™ Distance Trim., Connect™ Flexible Wall Trim., Connect™ F-trim 0889., Connect™ Shadow Channel Trim., Connect™ Shadowline Trim.
Connect™ Angle Trim., Connect™ Channel Trim C1., Connect™ Column Trim., Connect™ Distance Trim., Connect™ Flexible Wall Trim., Connect™ F-trim 0889., Connect™ Shadow Channel Trim., Connect™ Shadowline Trim.
Connect™ Angle Trim., Connect™ Channel Trim C1., Connect™ Column Trim., Connect™ Distance Trim., Connect™ Flexible Wall Trim., Connect™ F-trim 0889., Connect™ Shadow Channel Trim., Connect™ Shadowline Trim.
Lighting
None., Ecophon Dot., Ecophon Line., Ecophon Square 43.
None., Ecophon Dot., Ecophon Line., Ecophon Square 43.
None., Ecophon Dot., Ecophon Line., Ecophon Square 43.
Weight
5 kg/m².
5 kg/m².
5 kg/m².
Overall depth of system (minimum)
100 mm.
100 mm.
100 mm.
Demounting depth (minimum)
170 mm.
170 mm.
170 mm.
Indoor climate
Recommended by the Swedish Asthma and Allergy Association. Certified as A+ by French VOC. Emission classification of building materials: M1.
Recommended by the Swedish Asthma and Allergy Association. Certified as A+ by French VOC. Emission classification of building materials: M1.
Recommended by the Swedish Asthma and Allergy Association. Certified as A+ by French VOC. Emission classification of building materials: M1.
Moisture resistance
Class C, relative humidity 95% and 30°C, according to EN 13964:2014.
Class C, relative humidity 95% and 30°C, according to EN 13964:2014.
Class C, relative humidity 95% and 30°C, according to EN 13964:2014.
Fire safety
To BS EN 13501-1, Class A2-s1, d0.
To BS EN 13501-1, Class A2-s1, d0.
To BS EN 13501-1, Class A2-s1, d0.
Sound absorption
To EN ISO 11654, Class A.
To EN ISO 11654, Class A.
To EN ISO 11654, Class A.
Sound insulation
28–29 dB.
28–29 dB.
28–29 dB.
Ceiling attenuation class
30–31 dB.
30–31 dB.
30–31 dB.
Articulation Class
200 AC (1.5).
200 AC (1.5).
200 AC (1.5).
Cleaning
The ceiling system can withstand daily dusting and vacuum cleaning, and weekly wet-wiping.
The ceiling system can withstand daily dusting and vacuum cleaning, and weekly wet-wiping.
The ceiling system can withstand daily dusting and vacuum cleaning, and weekly wet-wiping.
Edges
With recessed visible grid and tegular edge design, painted edges.
With recessed visible grid and tegular edge design, painted edges.
With recessed visible grid and tegular edge design, painted edges.
Installation

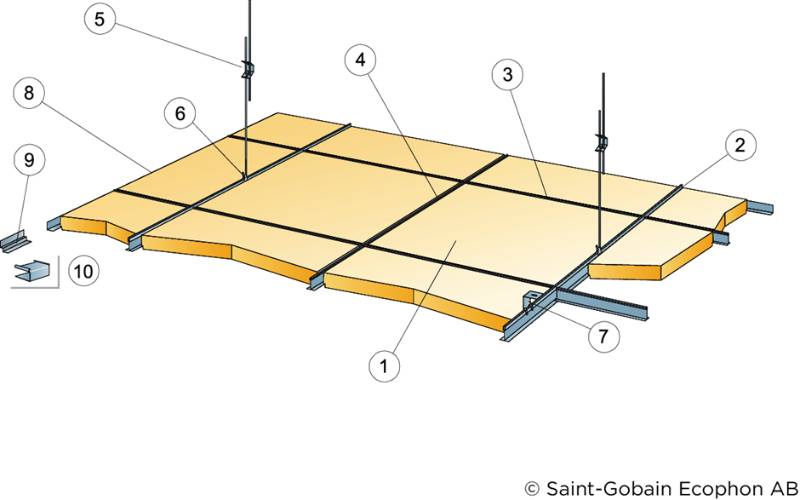

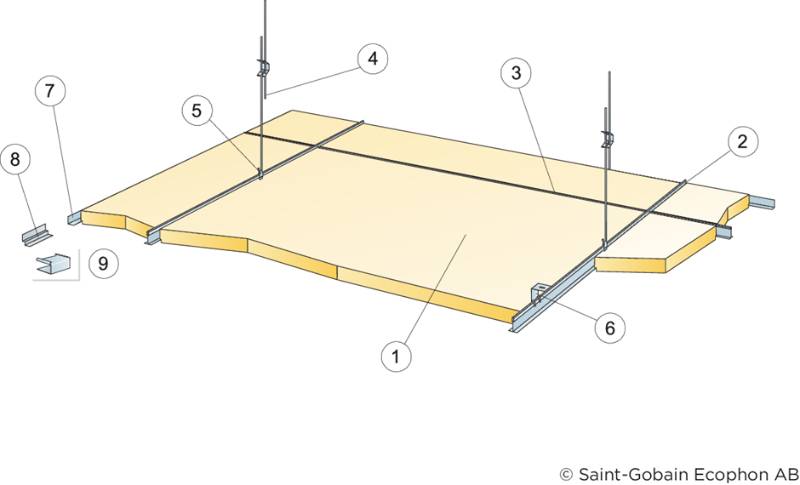

M58 – T24, suspended ceiling.
M567 – T24 – suspended ceiling.
M690 – T15, suspended ceiling.
Sustainability data
Contains Red List materials
No
No
No
Country of material origin
Sweden
Sweden
Sweden
Country of product manufacture
Sweden
Sweden
Sweden
Material
High-density glass wool
High-density glass wool
High-density glass wool
Carbon dioxide equivalent
Normalized unit
(kg CO₂ eq/kg) A1–A3 ('Production stage') :
-
A1–A3 ('Production stage') :
-
A1–A3 ('Production stage') :
-
Declared unit
Certified
A1–A3 ('Production stage') :
3.09
Certified
A1–A3 ('Production stage') :
3.09
Certified
A1–A3 ('Production stage') :
3.09
Recyclability
100%
100%
100%
Recycled content
59 %
59 %
59 %
Expected Life
50 year
50 year
50 year
