Solyx Reeded /Fluted Glass
Solyx Reeded /Fluted Glass
Solyx Reeded /Fluted Glass

Last verified by manufacturer over a year ago

Glass Films Europe

Last verified by manufacturer over a year ago

Glass Films Europe

Last verified by manufacturer over a year ago

Glass Films Europe
Summary

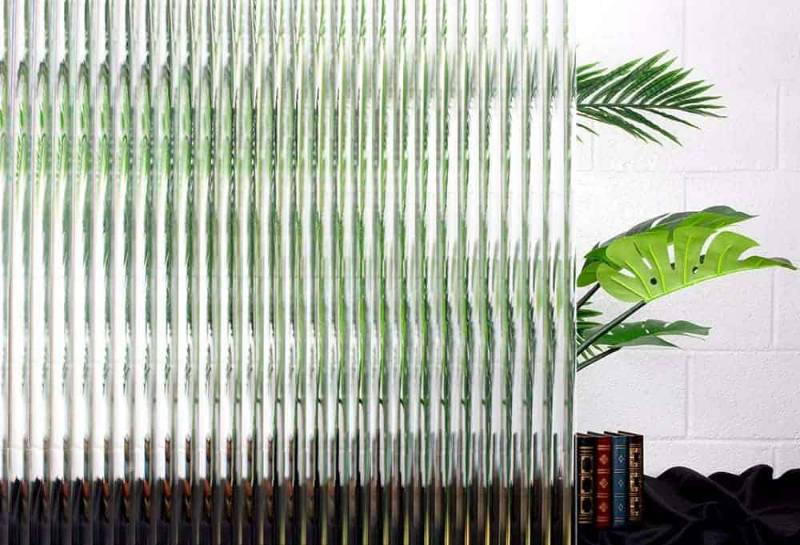

Glass films with a reeded / fluted design.
-
-
Application

Designed for application to interior glass, single or double pane and exterior facing glass.

-
-
Description

Glass films with a reeded/ fluted design.


Design variants:

  • SX-1254 Reeded Glass adhesive film simulates real reeded glass. Bands are 1/2" wide and band direction is vertical, down the length of the roll. This film has a horizontal, inherent, barely visible, very fine pattern repeat every 13".
  • SX-1255 Reeded Glass is a polyester film which simulates real reeded glass. Bands are 1" wide with the band direction running vertically, down the length of the roll. This film is suitable for obscuring direct visibility while allowing high light transmission. The film has a horizontal, inherent, very fine pattern repeat line across the width of the roll which repeats every 19.5".
  • SGC-6515 Fluted This adhesive polyester film very nicely simulates textured glass. Vertical, crystal clear fluted lines providing semi-private distortion views. Flutes are 3/16” wide / 0.1875” in between. This dimensionally stable film is 100% UV stabilized, will not discolor nor shrink, and is supplied with a silicone coated liner which protects the clear, pressure-sensitive acrylic adhesive.
  • SX-1262 Reeded Glass - ¼” is a polyester film with a 1/4” reeded design that runs along the length of the roll. This 2-mil thick film is supplied with a silicone coated liner which protects the clear, pressure-sensitive adhesive.


The films have a clear silicone release liner which protects the clear, pressure-sensitive adhesive, and is applied using the same tools and techniques for window films.

-
-
Color
Clear
-
-
Finish
Reeded, Fluted
-
-
Material
Polyester.
-
-
Length
15240 mm, 30480 mm
-
-
Width
1370 mm, 685 mm, 1473 mm
-
-
WarrantyDescription
Five year
-
-

Specification

Purpose
Solar control., Ultra-violet (UV) protection., Decorative.
-
-
Material
Polyester.
-
-
Dimensions
2.5 x 1372 x 30 000 mm.
-
-
Fire performance
Class B, s1, d0, as specified in BS EN 13501-1:2018.
-
-

Additional properties

SolarAbsorption
Total solar absorbance: 15%.
-
-
VisibleLightTransmittance
83%.
-
-
Ultraviolet (UV) resistance
UV rejection: 99%.
-
-
SolarReflectance
8%.
-
-
Adhesive
Clear, pressure-sensitive.
-
-
Film backing
Release liner: Silicone.
-
-

Sustainability data

Country of material origin
United States
-
-
Country of product manufacture
United States
-
-
