Summary

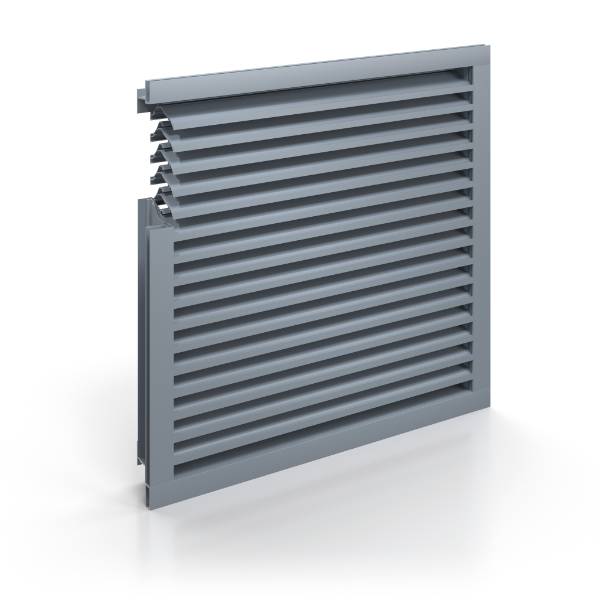

High-performance louvres with horizontal blades and visible mullions, offering great protection against wind-driven rain penetration and good airflow. Class A rain defence up to 3.0 m/s.
High-performance louvres with horizontal blades and visible mullions, offering great protection against wind-driven rain penetration and good airflow. Class A rain defence up to 3.0 m/s.
Application
Rain defence louvres for applications requiring good airflow and efficient protection against wind-driven rain ingress.
Rain defence louvres for applications requiring good airflow and efficient protection against wind-driven rain ingress.
Description
High performance louvres with horizontal blades and visible mullions, offering great protection against wind-driven rain penetration and good airflow. Class A rain defence up to 3.0 m/s.
Features and benefits:
- Complex extruded blade design for excellent rain defence performance.
- Multiple channels in blades and vertical jambs & mullions to collect and drain water from the louvred area.
- Class 2 airflow performance in air intake and class 3 in exhaust applications.
- Interlocking visible mullions to align with other façade elements. Choice of visible or invisible horizontal joints between units.
- Choice of frames for integration into structural openings, curtain walling or glazing.
- Delivered to site as pre-fabricated modules for efficient installation.
- Blast resistant and RC2 security rated options available.
- Slimline single bank design.
- Sight-proof design.
High performance louvres with horizontal blades and visible mullions, offering great protection against wind-driven rain penetration and good airflow. Class A rain defence up to 3.0 m/s.
Features and benefits:
- Complex extruded blade design for excellent rain defence performance.
- Multiple channels in blades and vertical jambs & mullions to collect and drain water from the louvred area.
- Class 2 airflow performance in air intake and class 3 in exhaust applications.
- Interlocking visible mullions to align with other façade elements. Choice of visible or invisible horizontal joints between units.
- Choice of frames for integration into structural openings, curtain walling or glazing.
- Delivered to site as pre-fabricated modules for efficient installation.
- Blast resistant and RC2 security rated options available.
- Slimline single bank design.
- Sight-proof design.
Digital objects
Color
Silver, Other
Silver, Other
Finish
Mill, Anodized, Powder-coated
Mill, Anodized, Powder-coated
Material
Aluminium
Aluminium
Length
129 mm
129 mm
Width
Bespoke
Bespoke
Height
Bespoke
Bespoke
Warranty description
Two year
Two year
SKU Code
RSH-5700
RSH-5700
Specification
Material
All components to be one-piece members extruded from aluminium alloy 6063-T6 (nominal thickness of heads, cills, jambs and mullions to be minimum 1.91 mm; blades to be minimum 1.52 mm).
All components to be one-piece members extruded from aluminium alloy 6063-T6 (nominal thickness of heads, cills, jambs and mullions to be minimum 1.91 mm; blades to be minimum 1.52 mm).
Finish
Milled., Anodized, clear., Anodized, colour., Polyester powder-coated finish, matt, colour., Polyester powder-coated finish, gloss, colour.
Milled., Anodized, clear., Anodized, colour., Polyester powder-coated finish, matt, colour., Polyester powder-coated finish, gloss, colour.
Colour
As Finish.
As Finish.
Construction
Supplied as modules, mechanically assembled in the factory using stainless steel fasteners. Multiple module installations to include interlocking visible mullions with drainage channels.
Supplied as modules, mechanically assembled in the factory using stainless steel fasteners, and complete with a 25 mm glazing frame, suitable for fitting into glazing sockets or use in Structural Silicone Glazing (SSG) system.
Weather performance
-
-
Water penetration class (minimum)
To BS EN 13030, class A up to 3.0 m/s.
To BS EN 13030, class A up to 3.0 m/s.
Discharge loss coefficient (minimum)
To BS EN 13030, class 3: Airflow coefficient Ce (entry): 0.309; Cd (discharge): 0.274.
To BS EN 13030, class 3: Airflow coefficient Ce (entry): 0.309; Cd (discharge): 0.274.
Louvre configuration
-
-
Number of banks
One.
One.
Blade orientation
Horizontal.
Horizontal.
Blade pitch
51 mm.
51 mm.
Blade angle
Complex extruded blade profile.
Complex extruded blade profile.
Accessories
None., Bird/ vermin guard, galvanized steel welded mesh., Bird/ vermin guard, expanded aluminium welded mesh., Insect mesh, PVC-coated fibreglass., Louvred door(s)., Volume control dampers., Snap-on cover plate to close-off louvre frame.
None., Bird/ vermin guard, galvanized steel welded mesh., Bird/ vermin guard, expanded aluminium welded mesh., Insect mesh, PVC-coated fibreglass., Louvred door(s)., Volume control dampers., Snap-on cover plate to close-off louvre frame.
Additional properties
Cill pan
Louvres to be supplied with a full depth cill pan with welded side panels, formed from 2 mm-thick aluminium.
-
Blanking panels
Not required., Single-skin aluminium panels, standard powder-coated black to one face only., Single-skin aluminium panels, powder-coated black to both sides., Single-skin aluminium panels, powder-coated to match louvre., Single-skin aluminium panels, mill finish., Insulated panels incorporating A1-classified non-combustible stone wool core., Insulated panels, extruded polystyrene core.
Not required., Single-skin aluminium panels, standard powder-coated black to one face only., Single-skin aluminium panels, powder-coated black to both sides., Single-skin aluminium panels, powder-coated to match louvre., Single-skin aluminium panels, mill finish., Insulated panels incorporating A1-classified non-combustible stone wool core., Insulated panels, extruded polystyrene core.
Burglar resistance
Required (To EN 1627–1630, RC2)., Not required.
Required (To EN 1627–1630, RC2)., Not required.
Blast resistance
Required., Not required.
Required., Not required.
Sustainability data
Contains Red List materials
No
No
Material
Aluminium
Aluminium
Recycled content
55 %
55 %
