Summary

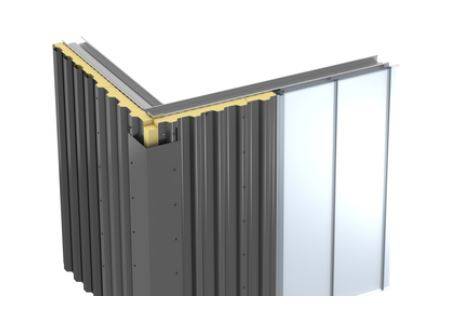

Through-fix, box profiled, insulated wall panel system.
Through-fix, box profiled, insulated wall panel system.
Digital objects
Height
72 mm, 138 mm
72 mm, 138 mm
Length
Bespoke
Bespoke
Width
1000 mm
1000 mm
Material
Steel, Polyisocyanurate (PIR)
Steel, Polyisocyanurate (PIR)
WarrantyDescription
25 year, 40 year
25 year, 40 year
Specification
Cladding panels
-
-
Panel type
Kingspan KS1000FC, 100 mm.
Kingspan KS1000FC, 34mm.
Panel fasteners
Self-drilling, self-tapping primary fasteners with non-ferrous EPDM backed washer.
Self-drilling, self-tapping primary fasteners with non-ferrous EPDM backed washer.
Side laps sealing
Overlapping joint with butyl tape sealant.
Overlapping joint with butyl tape sealant.
End laps sealing
Overlapping joint with butyl tape sealant.
Overlapping joint with butyl tape sealant.
Side lap stitching fasteners
Secondary fasteners with non-ferrous EPDM backed washer.
Secondary fasteners with non-ferrous EPDM backed washer.
End lap stitching fasteners
Secondary fasteners with non-ferrous EPDM backed washer.
Secondary fasteners with non-ferrous EPDM backed washer.
Continuity thermal insulation
Kingspan LPCB or FM Approved PIR board insulation to be installed in certain details to ensure thermal continuity.
Kingspan LPCB or FM Approved PIR board insulation to be installed in certain details to ensure thermal continuity.
Panel joints
-
-
Horizontal
Overlapping.
Overlapping.
Vertical
Overlapping.
Overlapping.
Cavity fire barriers
-
-
Vertical barriers
Kingspan LPCB or FM Approved PIR board insulation to be installed in certain details to ensure thermal continuity.
Kingspan LPCB or FM Approved PIR board insulation to be installed in certain details to ensure thermal continuity.
Horizontal barriers
Kingspan LPCB or FM Approved PIR board insulation to be installed in certain details to ensure thermal continuity.
Kingspan LPCB or FM Approved PIR board insulation to be installed in certain details to ensure thermal continuity.
Cavity closers
Kingspan LPCB or FM Approved PIR board insulation to be installed in certain details to ensure thermal continuity.
Kingspan LPCB or FM Approved PIR board insulation to be installed in certain details to ensure thermal continuity.
Fire stops
Kingspan LPCB or FM Approved PIR board insulation to be installed in certain details to ensure thermal continuity.
Kingspan LPCB or FM Approved PIR board insulation to be installed in certain details to ensure thermal continuity.
